Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-UFB250FA60DIODE MODULE GP 600V 168A SOT227 |
229 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 600 V | 168A | 1.19 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 166 ns | 50 µA @ 600 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
VS-UFB130FA40DIODE MODULE GP 400V 65A SOT-227 |
131 | - |
|
Datasheet | FRED Pt® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 400 V | 65A (DC) | 1.37 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 86 ns | 50 µA @ 400 V | - | - | - | Chassis Mount | SOT-227 |
|
VS-U5FH300FA60DIODE MODULE GP 600V 150A SOT227 |
243 | - |
|
Datasheet | FRED Pt® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 600 V | 150A (DC) | 1.7 V @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | 76 ns | 100 µA @ 600 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
|
VS-U5FX240FA120DIODE MOD GP 1200V 120A SOT-227 |
136 | - |
|
Datasheet | FRED Pt® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 1200 V | 120A (DC) | 3.33 V @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 160 µA @ 1200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|

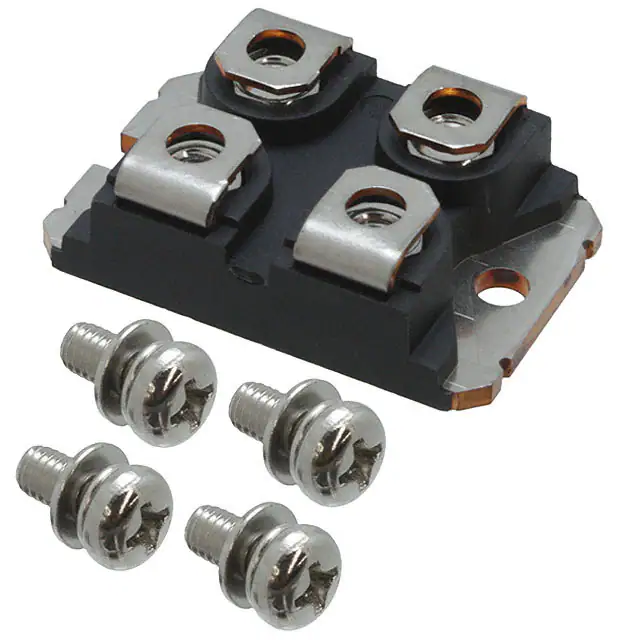

VS-UFB280FA40DIODE MODULE GP 400V 170A SOT227 |
153 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 400 V | 170A (DC) | 1.24 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 93 ns | 50 µA @ 400 V | - | - | - | Chassis Mount | SOT-227 |
|
VS-400CNQ045PBFDIODE MOD SCHOT 45V 400A TO244AB |
37 | - |
|
Datasheet | - | TO-244AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 400A | 730 mV @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | - | - | - | Chassis Mount | TO-244AB |
|
VS-HFA140FA120DIODE MODULE GP 1200V 70A SOT227 |
145 | - |
|
Datasheet | HEXFRED® | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 1200 V | 70A | 4 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 145 ns | 75 µA @ 1200 V | - | - | - | Chassis Mount | SOT-227 |
|
BAW56-E3-18DIODE ARRAY GP 70V 250MA SOT23-3 |
28,580 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | Standard | 70 V | 250mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 2.5 mA @ 70 V | 150°C (Max) | - | - | Surface Mount | SOT-23-3 |
|
|
BAT54A-E3-08DIODE ARR SCHOT 30V 200MA SOT233 |
15,868 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | - | - | Surface Mount | SOT-23-3 |
|
|
BAT54S-E3-18DIODE ARR SCHOT 30V 200MA SOT233 |
18,812 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | -55°C ~ 125°C | - | - | Surface Mount | SOT-23-3 |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
