Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
85CNQ015ADIODE MODULE SCHOT 15V 40A D61-8 |
2,345 | - |
|
Datasheet | - | D-61-8 | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 15 V | 40A | 450 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 15 V | -55°C ~ 125°C | - | - | Chassis Mount | D-61-8 |
|
20CJQ030DIODE ARRAY SCHOT 30V 1A SOT-223 |
7,883 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 1A | 500 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 30 V | -55°C ~ 150°C | - | - | Surface Mount | SOT-223 |
|
20CJQ045TRDIODE ARRAY SCHOT 45V 1A SOT-223 |
6,380 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 1A | 540 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 45 V | -55°C ~ 150°C | - | - | Surface Mount | SOT-223 |
|
MURD620CTDIODE ARRAY GP 200V 6A DPAK |
6,253 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 6A | 1.2 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | -65°C ~ 175°C | - | - | Surface Mount | TO-252AA (DPAK) |
|

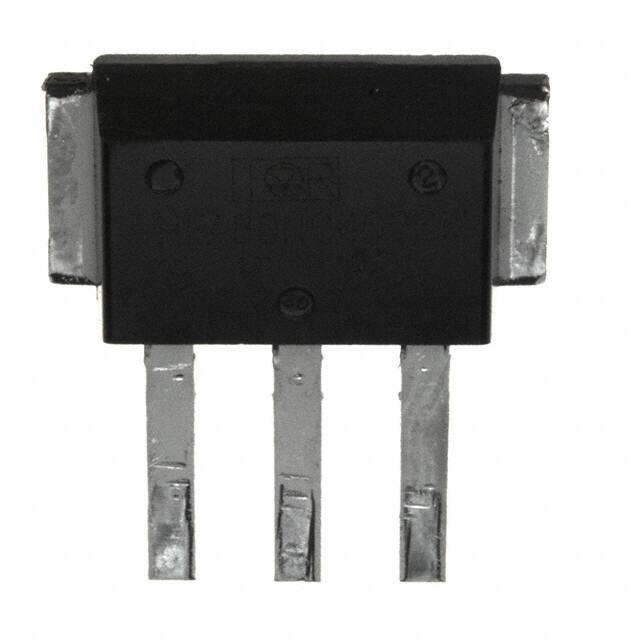

HFA80NC40CSMDIODE ARRAY GP 400V 85A D618SM |
2,125 | - |
|
Datasheet | HEXFRED® | D-61-8-SM | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 85A (DC) | 1.5 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 3 µA @ 400 V | -55°C ~ 150°C | - | - | Through Hole | D-61-8-SM |
|
|
HFA80NC40CDIODE MODULE GP 400V 85A D61-8 |
5,866 | - |
|
Datasheet | HEXFRED® | D-61-8 | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 85A (DC) | 1.5 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 3 µA @ 400 V | -55°C ~ 150°C | - | - | Chassis Mount | D-61-8 |
|
|
HFA70NC60CDIODE MODULE GP 600V 56A D61-8 |
4,955 | - |
|
Datasheet | HEXFRED® | D-61-8 | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 56A (DC) | 1.5 V @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 110 ns | 10 µA @ 600 V | -55°C ~ 150°C | - | - | Chassis Mount | D-61-8 |
|
6CWQ03FNDIODE ARRAY SCHOTT 30V 3.5A DPAK |
5,179 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 3.5A | 450 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 30 V | -40°C ~ 150°C | - | - | Surface Mount | TO-252AA (DPAK) |
|
20CJQ060DIODE ARRAY SCHOT 60V 1A SOT-223 |
9,032 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 1A | 590 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | -55°C ~ 150°C | - | - | Surface Mount | SOT-223 |
|
|
20CJQ100DIODE ARR SCHOTT 100V 1A SOT-223 |
3,621 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 1A | 790 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 1000 V | -55°C ~ 175°C | - | - | Surface Mount | SOT-223 |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
