Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
80CNQ045ASMDIODE ARRAY SCHOT 45V 40A D618SM |
6,142 | - |
|
Datasheet | - | D-61-8-SM | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 40A | 520 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | -55°C ~ 150°C | - | - | Through Hole | D-61-8-SM |
|
112CNQ030ASLDIODE ARRAY SCHOT 30V 55A D618SL |
8,914 | - |
|
Datasheet | - | D-61-8-SL | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 55A | 490 mV @ 55 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3.5 mA @ 30 V | -55°C ~ 150°C | - | - | Surface Mount | D-61-8-SL |
|
|
81CNQ040ASMDIODE ARRAY SCHOT 40V 40A D618SM |
8,145 | - |
|
Datasheet | - | D-61-8-SM | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 40A | 740 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 40 V | -55°C ~ 175°C | - | - | Through Hole | D-61-8-SM |
|
|
80CNQ040ASLDIODE ARRAY SCHOT 40V 40A D618SL |
3,986 | - |
|
Datasheet | - | D-61-8-SL | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 40A | 520 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 40 V | -55°C ~ 150°C | - | - | Surface Mount | D-61-8-SL |
|

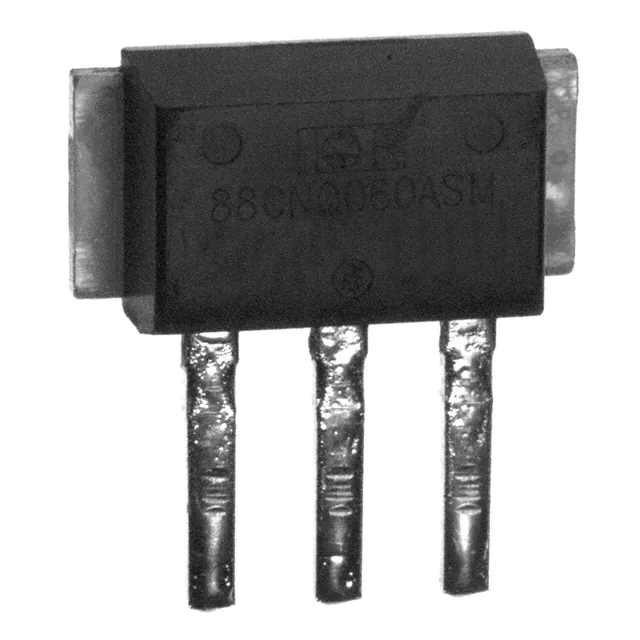

88CNQ060ASMDIODE ARRAY SCHOT 60V 40A D618SM |
9,493 | - |
|
Datasheet | - | D-61-8-SM | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 40A | 580 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 640 µA @ 60 V | -55°C ~ 150°C | - | - | Through Hole | D-61-8-SM |
|
|
81CNQ040ASLDIODE ARRAY SCHOT 40V 40A D618SL |
9,507 | - |
|
Datasheet | - | D-61-8-SL | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 40A | 740 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 40 V | -55°C ~ 175°C | - | - | Surface Mount | D-61-8-SL |
|
|
80CNQ040ASMDIODE ARRAY SCHOT 40V 40A D618SM |
9,059 | - |
|
Datasheet | - | D-61-8-SM | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 40A | 520 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 40 V | -55°C ~ 150°C | - | - | Through Hole | D-61-8-SM |
|
|
81CNQ045ASMDIODE ARRAY SCHOT 45V 40A D618SM |
6,775 | - |
|
Datasheet | - | D-61-8-SM | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 40A | 740 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | -55°C ~ 175°C | - | - | Through Hole | D-61-8-SM |
|
|
80CNQ035ASLDIODE ARRAY SCHOT 35V 40A D618SL |
4,697 | - |
|
Datasheet | - | D-61-8-SL | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 40A | 520 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 35 V | -55°C ~ 150°C | - | - | Surface Mount | D-61-8-SL |
|
|
81CNQ045ASLDIODE ARRAY SCHOT 45V 40A D618SL |
9,162 | - |
|
Datasheet | - | D-61-8-SL | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 40A | 740 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | -55°C ~ 175°C | - | - | Surface Mount | D-61-8-SL |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
