Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UFT20140DIODE MODULE GP 400V 100A MODULE |
6,698 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 100A | 1.25 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 70 ns | 50 µA @ 400 V | - | - | - | Screw Mount | Module |
|
APT2X21DC120JDIODE MOD SIC 1200V 20A SOT-227 |
2,278 | - |
|
Datasheet | - | ISOTOP | Bulk | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 20A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 400 µA @ 1200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
|
APT2X41DC60JDIODE MOD SIC 600V 40A SOT-227 |
5,296 | - |
|
Datasheet | - | ISOTOP | Bulk | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 600 V | 40A | 1.8 V @ 40 A | No Recovery Time > 500mA (Io) | 0 ns | 800 µA @ 600 V | - | - | - | Chassis Mount | SOT-227 |
|
|
APT2X41DC120JDIODE MOD SIC 1200V 40A SOT-227 |
9,645 | - |
|
Datasheet | - | ISOTOP | Bulk | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 40A | 1.8 V @ 40 A | No Recovery Time > 500mA (Io) | 0 ns | 800 µA @ 1200 V | - | - | - | Chassis Mount | SOT-227 |
|
APT2X61DC60JDIODE MODULE SIC 600V 60A ISOTOP |
6,825 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | SiC (Silicon Carbide) Schottky | 600 V | 60A | 1.8 V @ 60 A | No Recovery Time > 500mA (Io) | 0 ns | 1.2 mA @ 600 V | - | - | - | Chassis Mount | ISOTOP® |
|
CPT30060DIODE MOD SCHOTT 60V 150A 2TOWER |
5,817 | - |
|
Datasheet | - | MD3CC | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 150A | 820 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 60 V | - | - | - | Chassis Mount | Twin Tower |
|
CPT50060DIODE MOD SCHOTT 60V 250A 2TOWER |
6,610 | - |
|
Datasheet | - | Twin Tower | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 250A | 730 mV @ 250 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 60 V | - | - | - | Chassis Mount | Twin Tower |
|

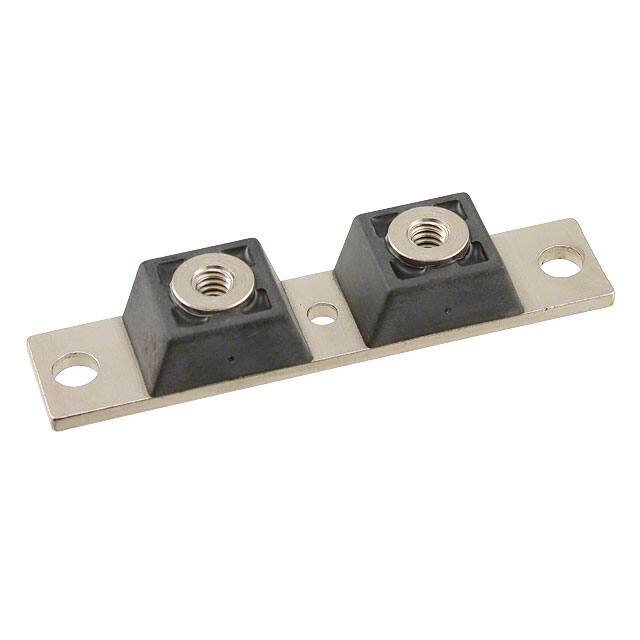

CPT600150DDIODE MOD SCHOT 150V 300A 2TOWER |
5,602 | - |
|
Datasheet | - | MD3CC | Bulk | Obsolete | 1 Pair Series Connection | Schottky | 150 V | 300A | 850 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 7 mA @ 150 V | - | - | - | Chassis Mount | Twin Tower |
|
CPT60145DIODE MOD SCHOTT 45V 300A 2TOWER |
6,177 | - |
|
Datasheet | - | MD3CC | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 300A | 550 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 21 mA @ 45 V | - | - | - | Chassis Mount | Twin Tower |
|
FST60100DIODE MOD SCHOTT 100V 60A TO-249 |
4,081 | - |
|
Datasheet | - | TO-249-9, TO-249AA Variant | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 60A | 860 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 100 V | - | - | - | Chassis Mount | TO-249 |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
