Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UFT14280DIODE MODULE GP 800V 70A TO-249 |
7,873 | - |
|
Datasheet | - | TO-249AA Isolated Base | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 800 V | 70A | 1.35 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 800 V | - | - | - | Screw Mount | TO-249 |
|
UFT20020DIODE MODULE GP 200V 100A MODULE |
9,122 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 100A | 975 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 50 µA @ 200 V | - | - | - | Screw Mount | Module |
|
UFT7260SM5CDIODE MODULE GP 600V 35A SM5 |
3,994 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 35A | 1.35 V @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 600 V | - | - | - | Chassis Mount | SM5 |
|

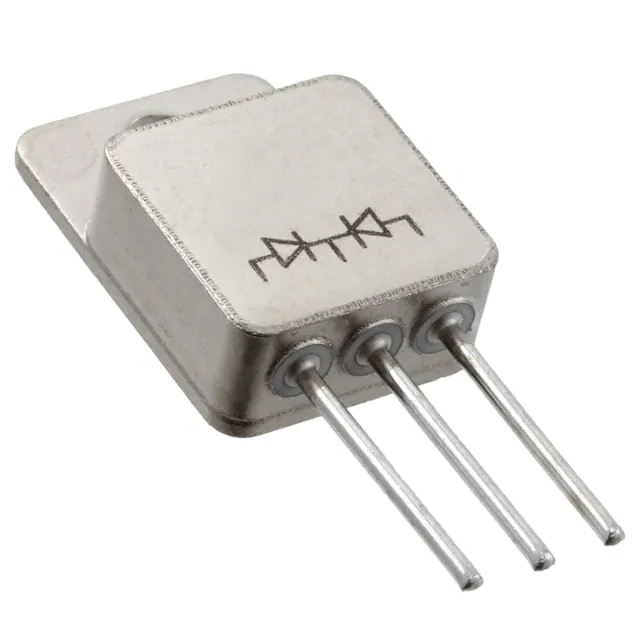

JANTX1N6660DIODE ARR SCHOTT 45V 15A TO254AA |
5,548 | - |
|
Datasheet | - | TO-254-3, TO-254AA (Straight Leads) | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 15A | 750 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | 150°C (Max) | Military | MIL-PRF-19500/608 | Through Hole | TO-254AA |
|
CPT300100DIODE MOD SCHOTTKY 100V TO-244AB |
3,390 | - |
|
Datasheet | - | TO-244AB | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 150A | 980 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 100 V | - | - | - | Chassis Mount | TO-244AB |
|
CPT500100DIODE MOD SCHOTTKY 100V TO-244AB |
8,651 | - |
|
Datasheet | - | TO-244AB | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 250A | 900 mV @ 250 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 100 V | - | - | - | Chassis Mount | TO-244AB |
|
CPT60035DIODE MOD SCHOT 35V 300A TO244AB |
7,085 | - |
|
Datasheet | - | TO-244AB | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 300A | 650 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 35 V | - | - | - | Chassis Mount | TO-244AB |
|
|
FST160100DIODE MOD SCHOTT 100V 80A TO-249 |
7,474 | - |
|
Datasheet | - | TO-249AA Isolated Base | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 80A | 960 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 100 V | - | - | - | Chassis Mount | TO-249 |
|
FST16090DIODE MOD SCHOTT 90V 80A TO-249 |
6,114 | - |
|
Datasheet | - | TO-249AA | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 90 V | 80A | 960 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 90 V | - | - | - | Screw Mount | TO-249 |
|
|
FST80100DIODE MOD SCHOTTKY 100V 3MINIMOD |
6,151 | - |
|
Datasheet | - | 3-SIP | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 40A | 820 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 100 V | - | - | - | Screw Mount | 3-Mini-Mod, Small Pin |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
