Diode Arrays

Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.

For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Grade	Qualification	Mounting Type	Supplier Device Package
DSEP2X91-03A DIODE MODULE GP 300V 90A SOT227B IXYS	100	-	RFQ	Datasheet	HiPerFRED™	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	300 V	90A	1.54 V @ 90 A	Fast Recovery =< 500ns, > 200mA (Io)	40 ns	1 mA @ 300 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227B
MEK150-04DA DIODE MOD GP 400V 150A TO-240AA IXYS	36	-	RFQ	Datasheet	-	TO-240AA	Bulk	Active	1 Pair Common Cathode	Standard	400 V	150A	1.6 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	2 mA @ 400 V	-40°C ~ 150°C	-	-	Chassis Mount	TO-240AA
MDD172-14N1 DIODE MODULE GP 1400V 190A Y4-M6 IXYS	6	-	RFQ	Datasheet	-	Y4-M6	Box	Active	1 Pair Series Connection	Standard	1400 V	190A	1.15 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	20 mA @ 1400 V	-40°C ~ 150°C	-	-	Chassis Mount	Y4-M6
MDMA210P1600YD DIODE MODULE GP 1600V 210A Y4-M6 IXYS	4	-	RFQ	Datasheet	-	Y4-M6	Box	Active	1 Pair Series Connection	Standard	1600 V	210A	1.13 V @ 210 A	Standard Recovery >500ns, > 200mA (Io)	-	1 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	Y4-M6
MDD312-12N1 DIODE MODULE GP 1200V 310A Y1-CU IXYS	2	-	RFQ	Datasheet	-	Y1-CU	Box	Active	1 Pair Series Connection	Standard	1200 V	310A	1.32 V @ 600 A	Standard Recovery >500ns, > 200mA (Io)	-	30 mA @ 1200 V	-40°C ~ 150°C	-	-	Chassis Mount	Y1-CU

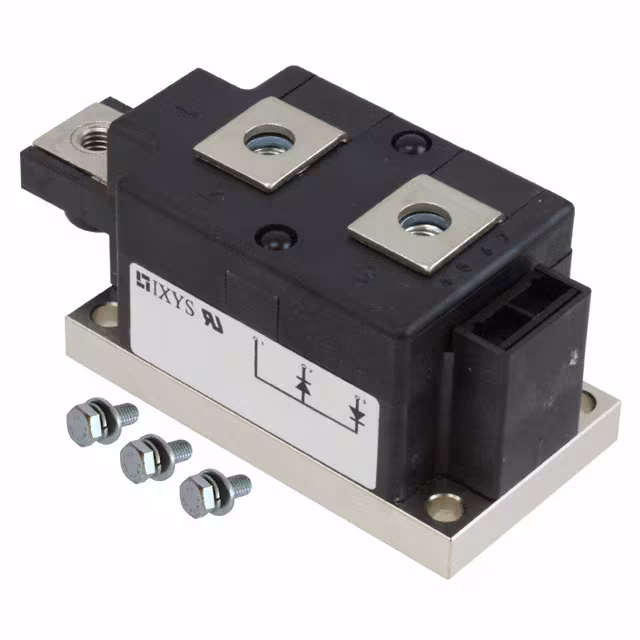

MDD312-16N1 DIODE MODULE GP 1600V 310A Y1-CU IXYS	2	-	RFQ	Datasheet	-	Y1-CU	Box	Active	1 Pair Series Connection	Standard	1600 V	310A	1.32 V @ 600 A	Standard Recovery >500ns, > 200mA (Io)	-	30 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	Y1-CU
MDD255-22N1 DIODE MODULE GP 2200V 270A Y1-CU IXYS	3	-	RFQ	Datasheet	-	Y1-CU	Box	Active	1 Pair Series Connection	Standard	2200 V	270A	1.4 V @ 600 A	Standard Recovery >500ns, > 200mA (Io)	-	30 mA @ 2200 V	-40°C ~ 150°C	-	-	Chassis Mount	Y1-CU
MDD175-34N1 DIODE MODULE GP 3400V 240A Y1-CU IXYS	3	-	RFQ	Datasheet	-	Y1-CU	Box	Active	1 Pair Series Connection	Standard	3400 V	240A	1.07 V @ 200 A	Standard Recovery >500ns, > 200mA (Io)	-	1 mA @ 3400 V	-40°C ~ 150°C	-	-	Chassis Mount	Y1-CU
MDD95-12N1B DIODE MOD GP 1200V 120A TO-240AA IXYS	36	-	RFQ	Datasheet	-	TO-240AA	Bulk	Active	1 Pair Series Connection	Standard	1200 V	120A	1.43 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	15 mA @ 1200 V	-40°C ~ 150°C	-	-	Chassis Mount	TO-240AA
MPA95-06DA DIODE MODULE GP 600V 95A TO240AA IXYS	35	-	RFQ	Datasheet	-	TO-240AA	Box	Active	1 Pair Common Anode	Standard	600 V	95A	1.73 V @ 50 A	Fast Recovery =< 500ns, > 200mA (Io)	35 ns	1.3 mA @ 600 V	-40°C ~ 150°C	-	-	Chassis Mount	TO-240AA

Diode Arrays FAQ

How can I narrow the current Diode Arrays selection?

Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.

Can EGOO help source hard-to-find or obsolete Diode Arrays parts?

Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.

Can I request a quotation for a BOM or small-batch requirement?

Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.

What information should I provide when requesting a quote?

Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
