Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDD172-18N1DIODE MODULE GP 1800V 190A Y4-M6 |
16 | - |
|
Datasheet | - | Y4-M6 | Box | Active | 1 Pair Series Connection | Standard | 1800 V | 190A | 1.15 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1800 V | -40°C ~ 150°C | - | - | Chassis Mount | Y4-M6 |
|
MEA250-12DADIODE MODULE GP 1200V 260A Y4-M6 |
7 | - |
|
Datasheet | FRED | Y4-M6 | Box | Active | 1 Pair Common Anode | Standard | 1200 V | 260A | 1.8 V @ 260 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 12 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | Y4-M6 |
|

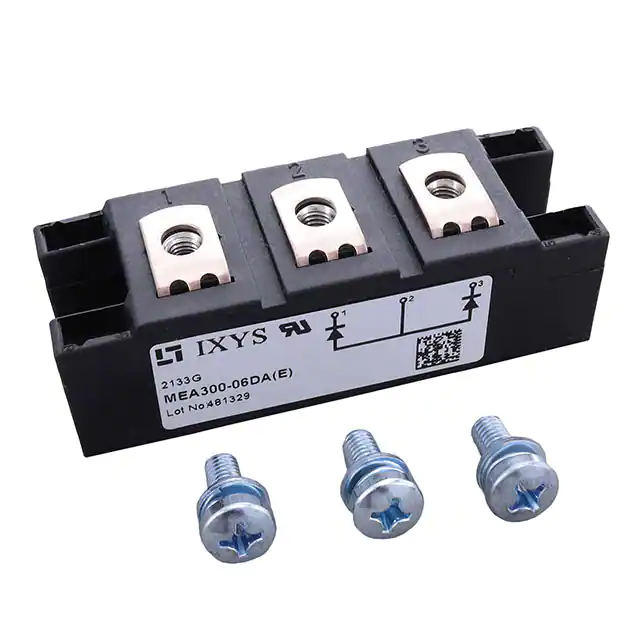

MEA300-06DADIODE MODULE GP 600V 304A Y4-M6 |
6 | - |
|
Datasheet | FRED | Y4-M6 | Box | Active | 1 Pair Common Anode | Standard | 600 V | 304A | 1.36 V @ 260 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 12 mA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | Y4-M6 |
|
|
MDMA280P1600YDDIODE MODULE GP 1600V 280A Y4-M6 |
18 | - |
|
Datasheet | MDMA280P1600YD | Y4-M6 | Box | Active | 1 Pair Series Connection | Standard | 1600 V | 280A | 1.14 V @ 280 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | Y4-M6 |
|
|
MDD312-18N1DIODE MODULE GP 1800V 310A Y1-CU |
6 | - |
|
Datasheet | - | Y1-CU | Box | Active | 1 Pair Series Connection | Standard | 1800 V | 310A | 1.32 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1800 V | -40°C ~ 150°C | - | - | Chassis Mount | Y1-CU |
|
|
MDMA380P1600KCDIODE MOD GP 1600V 380A MOD |
3 | - |
|
Datasheet | - | Module | Box | Active | 1 Pair Series Connection | Standard | 1600 V | 380A | 1.07 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | Module |
|
|
MDD255-20N1DIODE MODULE GP 2000V 270A Y1-CU |
6 | - |
|
Datasheet | - | Y1-CU | Box | Active | 1 Pair Series Connection | Standard | 2000 V | 270A | 1.4 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 2000 V | -40°C ~ 150°C | - | - | Chassis Mount | Y1-CU |
|
DPG20C200PBDIODE ARRAY GP 200V 10A TO-220-3 |
57 | - |
|
Datasheet | HiPerFRED™ | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Standard | 200 V | 10A | 1.27 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 µA @ 200 V | -55°C ~ 175°C | - | - | Through Hole | TO-220-3 |
|
DPG30C200PC-TUBDIODE ARRAY GP 200V 15A TO263 |
40 | - |
|
Datasheet | DPG30C200PC | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 1 Pair Common Cathode | Standard | 200 V | 15A | 1.26 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 µA @ 200 V | -55°C ~ 175°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
DPG20C300PBDIODE ARRAY GP 300V 10A TO-220-3 |
50 | - |
|
Datasheet | HiPerFRED™ | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Standard | 300 V | 10A | 1.27 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 µA @ 300 V | -55°C ~ 175°C | - | - | Through Hole | TO-220-3 |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
