Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSP45-12AZ-TRLDIODE ARRAY GP 1200V 45A TO268AA |
1,200 | - |
|
Datasheet | DSP | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tape & Reel (TR) | Active | 1 Pair Series Connection | Standard | 1200 V | 45A | 1.26 V @ 45 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 µA @ 1200 V | -40°C ~ 175°C | - | - | Surface Mount | TO-268AA (D3Pak-HV) |
|
DSSK60-02ADIODE ARR SCHOT 200V 30A TO247AD |
874 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 200 V | 30A | 850 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 200 V | -55°C ~ 175°C | - | - | Through Hole | TO-247AD |
|
DCG45X1200NADIODE MOD SIC 1200V 22A SOT227B |
196 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 22A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | -40°C ~ 175°C | - | - | Chassis Mount | SOT-227B |
|
|
DCG130X1200NADIODE MOD SIC 1200V 64A SOT227B |
335 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 64A | 1.8 V @ 60 A | No Recovery Time > 500mA (Io) | 0 ns | 800 µA @ 1200 V | -40°C ~ 175°C | - | - | Chassis Mount | SOT-227B |
|

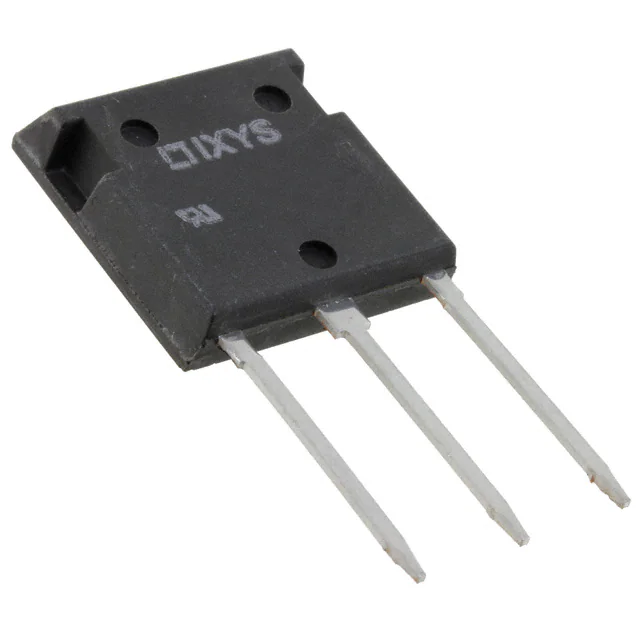

DHH55-36N1FDIODE ARRAY GP 1800V 60A I4PAC |
29 | - |
|
Datasheet | - | i4-Pac™-3 | Tube | Active | 1 Pair Series Connection | Standard | 1800 V | 60A | 2.04 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 230 ns | 200 µA @ 1800 V | -55°C ~ 150°C | - | - | Through Hole | i4-PAC™ |
|
|
DSEI2X30-06CDIODE MODULE GP 600V 30A SOT227B |
79 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 600 V | 30A | 1.6 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 µA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227B |
|
|
DSEI2X101-12ADIODE MOD GP 1200V 91A SOT227B |
51 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 1200 V | 91A | 1.87 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 3 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227B |
|
|
DSP25-16ADIODE ARRAY GP 1600V 28A TO247AD |
99 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Series Connection | Standard | 1600 V | 28A | 1.6 V @ 55 A | Standard Recovery >500ns, > 200mA (Io) | - | 2 mA @ 1600 V | -40°C ~ 180°C | - | - | Through Hole | TO-247AD |
|
MDD44-16N1BDIODE MOD GP 1600V 64A TO-240AA |
38 | - |
|
Datasheet | - | TO-240AA | Box | Active | 1 Pair Series Connection | Standard | 1600 V | 64A | 1.6 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | TO-240AA |
|
|
MEE75-12DADIODE MOD GP 1200V 75A TO-240AA |
8 | - |
|
Datasheet | - | TO-240AA | Box | Active | 1 Pair Series Connection | Standard | 1200 V | 75A | 2.17 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 2 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | TO-240AA |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
