Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GD25MPS17HDIODE SIL CARB 1.7KV 56A TO247-2 |
1,285 | - |
|
Datasheet | SiC Schottky MPS™ | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1700 V | 56A | 1.8 V @ 25 A | No Recovery Time > 500mA (Io) | 0 ns | 20 µA @ 1700 V | 1083pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
GC05MPS33JDIODE SIL CARB 3.3KV 5A TO263-7 |
1,114 | - |
|
Datasheet | SiC Schottky MPS™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tube | Active | SiC (Silicon Carbide) Schottky | 3300 V | 5A | - | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Surface Mount | TO-263-7 | 175°C |
|

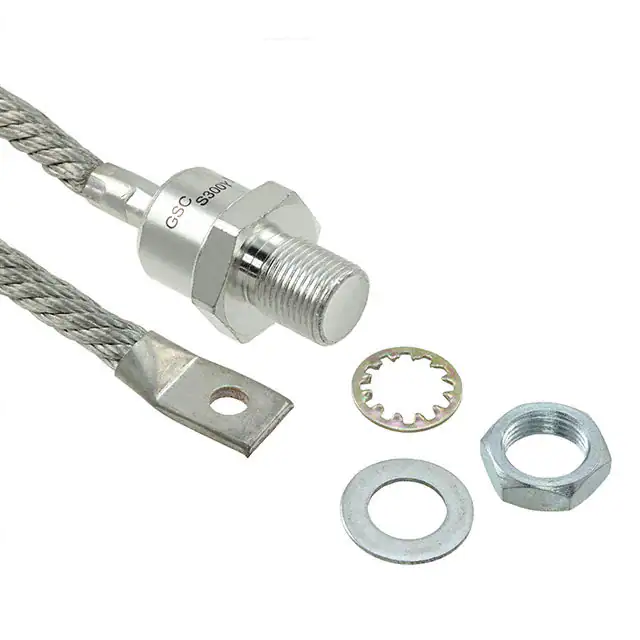

S300YDIODE GEN PURP 1.6KV 300A DO9 |
54 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Active | Standard | 1600 V | 300A | 1.2 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1600 V | - | - | - | Chassis, Stud Mount | DO-9 | -60°C ~ 180°C |
|
|
GC50MPS33HDIODE SIL CARB 3.3KV 50A TO247-2 |
78 | - |
|
Datasheet | SiC Schottky MPS™ | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 3300 V | 50A | - | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-247-2 | 175°C |
|
GD02MPS12EDIODE SIL CARB 1.2KV 8A TO252-2 |
2,809 | - |
|
Datasheet | SiC Schottky MPS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | SiC (Silicon Carbide) Schottky | 1200 V | 8A | 1.8 V @ 2 A | No Recovery Time > 500mA (Io) | 0 ns | 5 µA @ 1200 V | 73pF @ 1V, 1MHz | - | - | Surface Mount | TO-252-2 | -55°C ~ 175°C |
|
|
GD30MPS06ADIODE SIL CARB 650V 30A TO220-2 |
1,744 | - |
|
Datasheet | SiC Schottky MPS™ | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 30A | - | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-220-2 | 175°C |
|
|
1N3881DIODE GEN PURP 200V 6A DO4 |
414 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 200 V | 6A | 1.4 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 15 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-4 | -65°C ~ 150°C |
|
|
GD20MPS12HDIODE SIL CARB 1.2KV 39A TO247-2 |
2,961 | - |
|
Datasheet | SiC Schottky MPS™ | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 39A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 10 µA @ 1200 V | 737pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
GD30MPS12HDIODE SIL CARB 1.2KV 55A TO247-2 |
503 | - |
|
Datasheet | SiC Schottky MPS™ | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 55A | 1.8 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 µA @ 1200 V | 1101pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
|
1N1190ARDIODE GEN PURP REV 600V 40A DO5 |
869 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 40A | 1.1 V @ 40 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 190°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
