Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5711-1DIODE SCHOTTKY 70V 33MA DO35 |
836 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Schottky | 70 V | 33mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | 2pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|

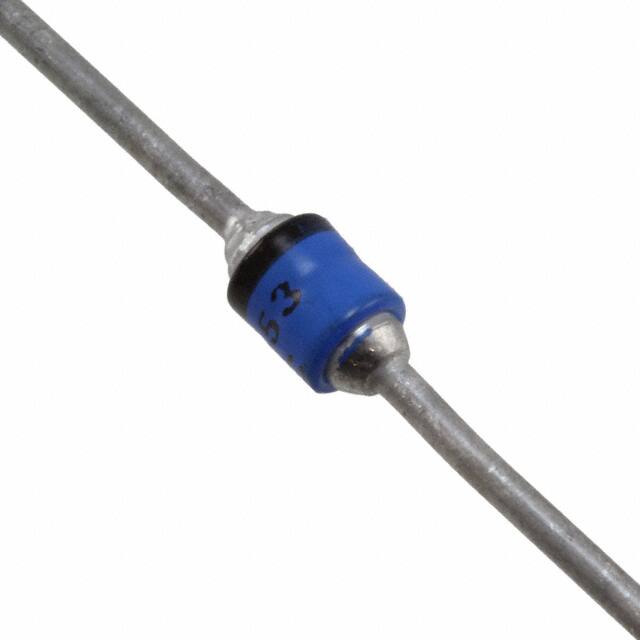

1N5553DIODE GEN PURP 800V 3A AXIAL |
251 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 800 V | 3A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 800 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
1N5551USDIODE GEN PURP 400V 3A D-5B |
165 | - |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | Standard | 400 V | 3A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 400 V | - | - | - | Surface Mount | D-5B | -65°C ~ 175°C |
|
MSC030SDA070BDIODE SIL CARBIDE 700V 60A TO247 |
118 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 700 V | 60A | 1.8 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 700 V | 1200pF @ 1V, 1MHz | - | - | Through Hole | TO-247 | -55°C ~ 175°C |
|

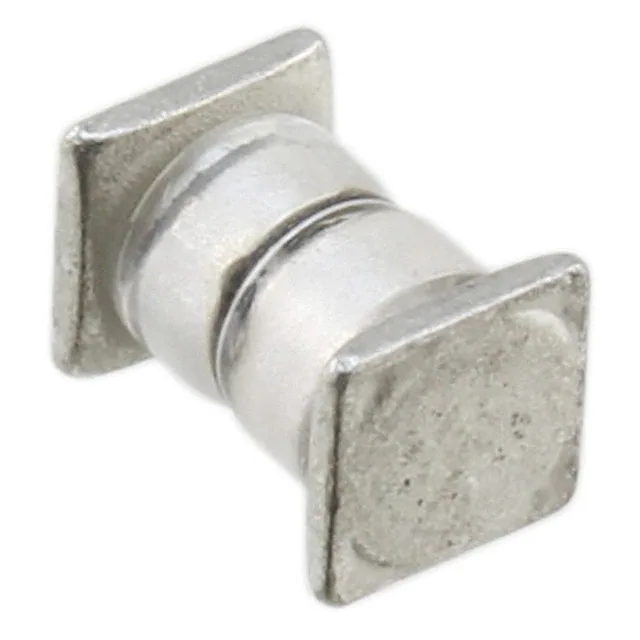

1N3595USDIODE GEN PURP 4A B SQ-MELF |
158 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | - | 4A | 1 V @ 200 mA | Standard Recovery >500ns, > 200mA (Io) | 3 µs | 1 nA @ 125 V | - | - | - | Surface Mount | B, SQ-MELF | -65°C ~ 150°C |
|
CDLL5711DIODE SCHOTTKY 50V 33MA DO213AA |
265 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Schottky | 50 V | 33mA | 410 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | 2pF @ 0V, 1MHz | - | - | Surface Mount | DO-213AA | -65°C ~ 150°C |
|

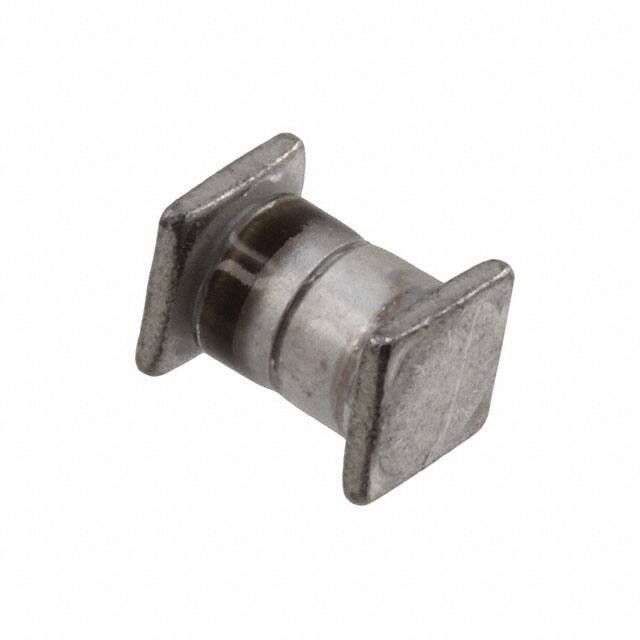

1N5416USDIODE GEN PURP 100V 3A D-5B |
111 | - |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | Standard | 100 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 100 V | - | - | - | Surface Mount | D-5B | -65°C ~ 175°C |
|
MSC030SDA120BDIODE SIL CARB 1.2KV 30A TO247 |
1,046 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 30A | 1.5 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-247 | - |
|
|
MSC020SDA120SDIODE SIL CARB 1.2KV 49A D3PAK |
869 | - |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 49A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | 1130pF @ 1V, 1MHz | - | - | Surface Mount | D3PAK | -55°C ~ 175°C |
|
JANTX1N5190DIODE GEN PURP 600V 3A AXIAL |
189 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 600 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 400 ns | 2 µA @ 600 V | - | Military | MIL-PRF-19500/424 | Through Hole | B, Axial | - |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
