Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSC030SDA330BDIODE SIL CARB 3.3KV 30A TO247 |
36 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 3300 V | 30A | - | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-247 | - |
|
MCX5622UFR,FRR |
45 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
JANS1N5822USDIODE SCHOTTKY 40V 3A B SQ-MELF |
121 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Schottky | 40 V | 3A | 500 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | Military | MIL-PRF-19500/620 | Surface Mount | B, SQ-MELF | -65°C ~ 150°C |
|
UPS120EE3/TR7DIODE SCHOTTKY 20V 1A POWERMITE1 |
8,792 | - |
|
Datasheet | - | DO-216AA | Tape & Reel (TR) | Active | Schottky | 20 V | 1A | 530 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 20 V | - | - | - | Surface Mount | Powermite 1 (DO216-AA) | -55°C ~ 125°C |
|
UPS540E3/TR13DIODE SCHOTTKY 40V 5A POWERMITE3 |
5,000 | - |
|
Datasheet | - | Powermite®3 | Tape & Reel (TR) | Active | Schottky | 40 V | 5A | 540 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 250pF @ 4V, 1MHz | - | - | Surface Mount | Powermite 3 | -55°C ~ 125°C |
|
UPS560E3/TR13DIODE SCHOTTKY 60V 5A POWERMITE3 |
57,846 | - |
|
Datasheet | - | Powermite®3 | Tape & Reel (TR) | Active | Schottky | 60 V | 5A | 690 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 60 V | 150pF @ 4V, 1MHz | - | - | Surface Mount | Powermite 3 | -55°C ~ 125°C |
|

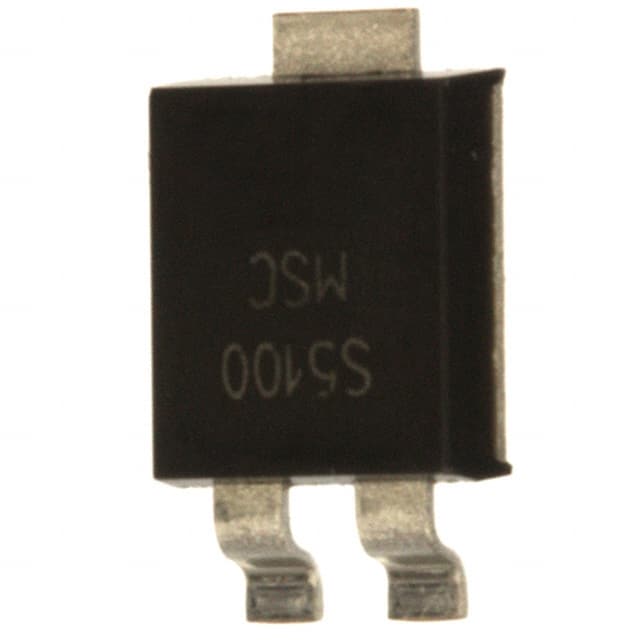

UPS5100E3/TR13DIODE SCHOTTKY 100V 5A POWERMITE |
20,844 | - |
|
Datasheet | - | Powermite®3 | Tape & Reel (TR) | Active | Schottky | 100 V | 5A | 810 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 100 V | 150pF @ 4V, 1MHz | - | - | Surface Mount | Powermite 3 | -55°C ~ 125°C |
|
5819SMJE3/TR13DIODE SCHOTTKY 40V 1A DO214AA |
6,906 | - |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | - | - | - | Surface Mount | DO-214AA | -55°C ~ 150°C |
|
1N4150-1DIODE GEN PURP 50V 200MA DO35 |
1,168 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 50 V | 200mA | 1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 50 V | - | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
|
JANTX1N4454-1DIODE GEN PURP 50V 200MA DO35 |
1,165 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 50 V | 200mA | 1 V @ 10 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 50 V | - | Military | MIL-PRF-19500/144 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
