Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTXV1N5616USDIODE GEN PURP 400V 1A D-5A |
7,107 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Discontinued at Digi-Key | Standard | 400 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 400 V | - | Military | MIL-PRF-19500/429 | Surface Mount | D-5A | -65°C ~ 200°C |
|
JANTXV1N4944DIODE GEN PURP 400V 1A AXIAL |
9,898 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 400 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 400 V | 35pF @ 12V, 1MHz | Military | MIL-PRF-19500/359 | Through Hole | A, Axial | -65°C ~ 175°C |
|
JAN1N5554USDIODE GEN PURP 1KV 5A D-5B |
2,169 | - |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | Standard | 1000 V | 5A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 1000 V | - | Military | MIL-PRF-19500/420 | Surface Mount | D-5B | -65°C ~ 175°C |
|
|
JAN1N5553USDIODE GEN PURP 800V 3A D-5B |
3,151 | - |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | Standard | 800 V | 3A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 800 V | - | Military | MIL-PRF-19500/420 | Surface Mount | D-5B | -65°C ~ 175°C |
|

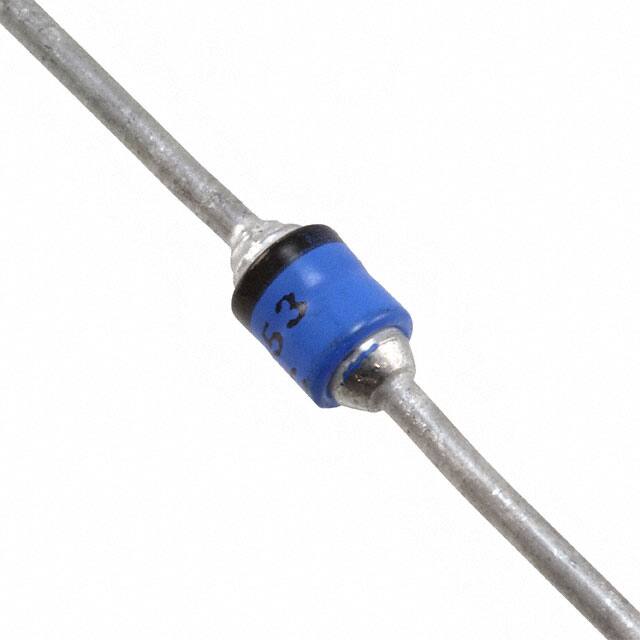

1N5419E3DIODE GEN PURP 500V 3A AXIAL |
7,250 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 500 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 1 µA @ 500 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
JANTXV1N5418/TRDIODE GEN PURP 400V 3A |
5,101 | - |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 400 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 400 V | - | Military | MIL-PRF-19500/411 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
1N5554US/TRDIODE GEN PURP 1KV 3A D-5B |
5,235 | - |
|
Datasheet | - | SQ-MELF, E | Tape & Reel (TR) | Active | Standard | 1000 V | 3A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 1000 V | - | - | - | Surface Mount | D-5B | -65°C ~ 175°C |
|
JANTX1N5623US/TRDIODE GEN PURP 1KV 1A D-5A |
8,874 | - |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 500 nA @ 1 V | 15pF @ 12V, 1MHz | Military | MIL-PRF-19500/429 | Surface Mount | D-5A | -65°C ~ 175°C |
|
|
JAN1N5622USDIODE GEN PURP 1KV 1A D-5A |
8,689 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 1000 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 1000 V | - | Military | MIL-PRF-19500/427 | Surface Mount | D-5A | -65°C ~ 200°C |
|
|
1N5804USE3DIODE GEN PURP 100V 1A A SQ-MELF |
9,459 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 100 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 100 V | 25pF @ 10V, 1MHz | - | - | Surface Mount | A, SQ-MELF | -65°C ~ 175°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
