Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT15DQ120KGDIODE GP 1.2KV 15A TO220 |
718 | - |
|
Datasheet | - | TO-220-2 | Tube | Active | Standard | 1200 V | 15A | 3.3 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 240 ns | 100 µA @ 1200 V | - | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
|
APT15D60KGDIODE GP 600V 15A TO220 |
88 | - |
|
Datasheet | - | TO-220-2 | Tube | Active | Standard | 600 V | 15A | 1.8 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 250 µA @ 600 V | - | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
MSC010SDA070KDIODE SIL CARB 700V 10A TO220-2 |
55 | - |
|
Datasheet | - | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 700 V | 10A | 1.5 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-220-2 | - |
|
JANTX1N6638DIODE GEN PURP 125V 300MA D5B |
80 | - |
|
Datasheet | - | D, Axial | Bulk | Active | Standard | 125 V | 300mA | 1.1 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 20 ns | 500 nA @ 125 V | - | Military | MIL-PRF-19500/578 | Through Hole | D-5D | -65°C ~ 175°C |
|
JANTX1N5418DIODE GEN PURP 400V 3A AXIAL |
75 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 400 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 400 V | - | Military | MIL-PRF-19500/411 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANTX1N5550DIODE GEN PURP 200V 5A AXIAL |
83 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 200 V | 5A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 200 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANTX1N5553DIODE GEN PURP 800V 5A AXIAL |
91 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 800 V | 5A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 800 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|

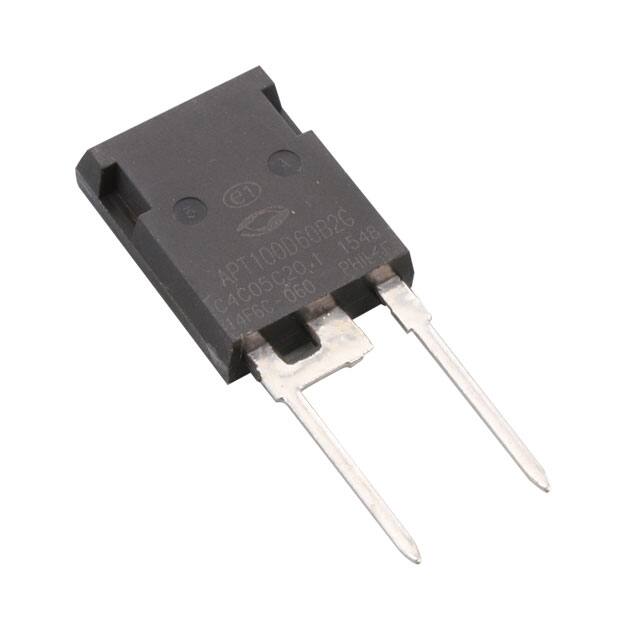

APT100D60B2GDIODE GEN PURP 600V 100A TO247 |
46 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 600 V | 100A | - | - | - | - | - | - | - | Through Hole | TO-247 | - |
|
MSC020SDA120BDIODE SIL CARB 1.2KV 49A TO247 |
37 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 49A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | 1130pF @ 1V, 1MHz | - | - | Through Hole | TO-247 | -55°C ~ 175°C |
|
|
MSC050SDA070BDIODE SIL CARBIDE 700V 50A TO247 |
59 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 700 V | 50A | 1.5 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-247 | - |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
