Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N5195UR-1/TRSIGNAL OR COMPUTER DIODE |
6,861 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | Military | MIL-PRF-19500/118 | - | - | - |
|

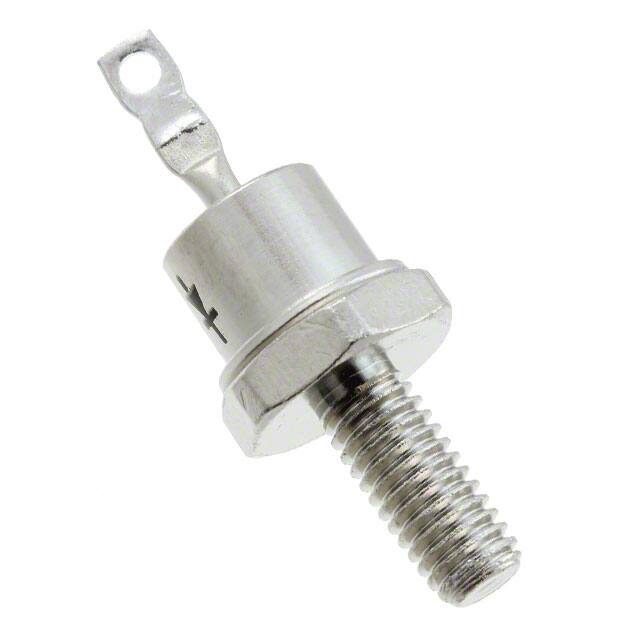

JANTX1N3671ADIODE GEN PURP 800V 12A DO203AA |
5,000 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 800 V | 12A | 2.3 V @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 800 V | - | Military | MIL-PRF-19500/260 | Stud Mount | DO-203AA | -65°C ~ 150°C |
|
|
JAN1N3671ADIODE GEN PURP 800V 12A DO203AA |
2,420 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 800 V | 12A | 1.35 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 800 V | - | Military | MIL-PRF-19500/260 | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|
|
JAN1N3673ADIODE GEN PURP 800V 12A DO203AA |
3,097 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 800 V | 12A | 1.35 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 800 V | - | Military | MIL-PRF-19500/260 | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|
|
1N5184DIODE GP 10KV 100MA S AXIAL |
6,567 | - |
|
Datasheet | - | S, Axial | Bulk | Discontinued at Digi-Key | Standard | 10000 V | 100mA | 10 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 5 µA @ 10000 V | - | - | - | Through Hole | S, Axial | -65°C ~ 175°C |
|
|
1N5181DIODE GP 4KV 100MA S AXIAL |
3,286 | - |
|
Datasheet | - | S, Axial | Bulk | Discontinued at Digi-Key | Standard | 4000 V | 100mA | 10 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 5 µA @ 4000 V | - | - | - | Through Hole | S, Axial | -65°C ~ 175°C |
|
|
1N5182DIODE GP 5KV 100MA S AXIAL |
2,729 | - |
|
Datasheet | - | S, Axial | Bulk | Discontinued at Digi-Key | Standard | 5000 V | 100mA | 10 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 5 µA @ 5000 V | - | - | - | Through Hole | S, Axial | -65°C ~ 175°C |
|
|
1N5183DIODE GP 7.5KV 100MA S AXIAL |
9,789 | - |
|
Datasheet | - | S, Axial | Bulk | Active | Standard | 7500 V | 100mA | 10 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 5 µA @ 7500 V | - | - | - | Through Hole | S, Axial | -65°C ~ 175°C |
|
|
21FQ045DIODE SCHOTTKY 45V 30A DO4 |
6,755 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky | 45 V | 30A | 630 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 45 V | - | - | - | Stud Mount | DO-4 (DO-203AA) | -55°C ~ 175°C |
|
|
20FQ040DIODE SCHOTTKY 40V 30A DO4 |
2,410 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky | 40 V | 30A | 580 mV @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 40 V | - | - | - | Stud Mount | DO-4 (DO-203AA) | -55°C ~ 150°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
