Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANS1N5802URS/TRDIODE GP 60V 1A A SQ-MELF |
9,765 | - |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 60 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 50 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | A, SQ-MELF | -65°C ~ 175°C |
|
|
JANS1N5804URS/TRUFR,FRR |
9,090 | - |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 100 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 100 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | D-5A | -65°C ~ 175°C |
|

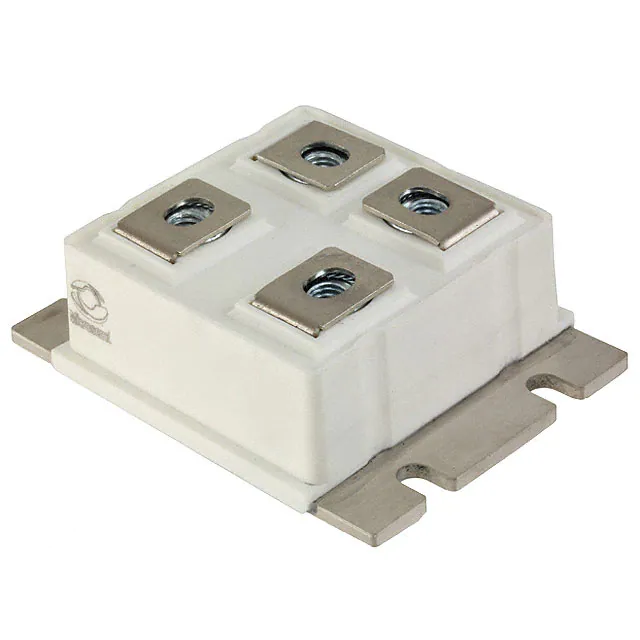

APTDF430U100GDIODE GEN PURP 1KV 500A LP4 |
9,502 | - |
|
Datasheet | - | LP4 | Bulk | Active | Standard | 1000 V | 500A | 2.3 V @ 500 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 2.5 mA @ 1000 V | - | - | - | Chassis Mount | LP4 | - |
|
|
1N6844SCHOTTKY RECTIFIER |
3,048 | - |
|
Datasheet | - | 3-SMD, No Lead | Bulk | Active | Schottky | 100 V | 20A | 1 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 100 V | 600pF @ 10V, 1MHz | - | - | Surface Mount | U3 (SMD-0.5) | -55°C ~ 175°C |
|
|
JANTX1N486B/TRDIODE GP REV 225V 200MA DO7 |
4,693 | - |
|
Datasheet | - | DO-204AA, DO-7, Axial | Tape & Reel (TR) | Active | Standard, Reverse Polarity | 225 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 25 nA @ 225 V | - | Military | MIL-PRF-19500/118 | Through Hole | DO-7 | -65°C ~ 200°C |
|
SBR8050DIODE SCHOTTKY 80A 50V DO5 |
9,521 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 50 V | 80A | 740 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 50 V | - | - | - | Chassis, Stud Mount | - | - |
|
|
SBR8040DIODE SCHOTTKY 40V 80A DO5 |
8,025 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 40 V | 80A | 740 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 175°C |
|
|
SBR8045DIODE SCHOTTKY 45V 80A DO5 |
9,560 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 45 V | 80A | 740 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 175°C |
|
|
SBR8060DIODE SCHOTTKY 60V 80A DO5 |
5,727 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 60 V | 80A | 770 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | - | 2000pF @ 5V, 1MHz | - | - | Stud Mount | DO-5 (DO-203AB) | -55°C ~ 175°C |
|
|
JAN1N5816RDIODE GEN PURP 150V 20A DO203AA |
9,107 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 150 V | 20A | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 150 V | 300pF @ 10V, 1MHz | Military | MIL-PRF-19500/478 | Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
