Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N6843DIODE SCHOTTKY 100V 10A U3 |
6,496 | - |
|
Datasheet | - | 3-SMD, No Lead | Bulk | Active | Schottky | 100 V | 10A | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | - | - | - | Surface Mount | U3 (SMD-0.5) | -65°C ~ 150°C |
|

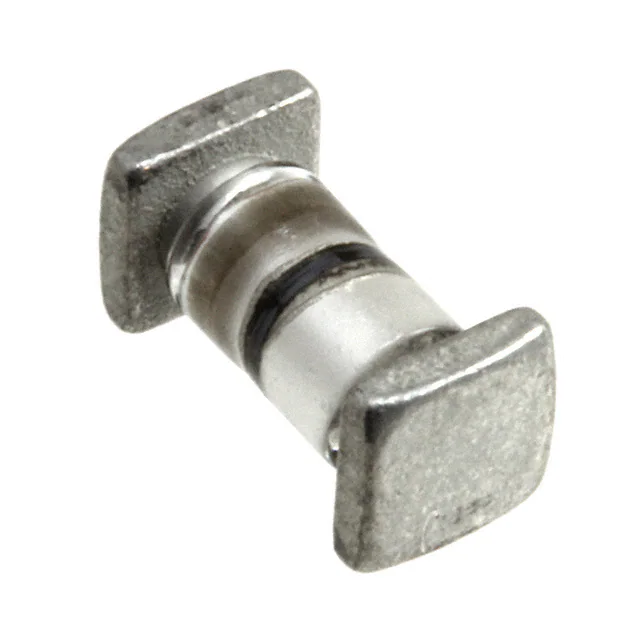

JANS1N6621US/TRDIODE GP 400V 1.2A A SQ-MELF |
2,581 | - |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 400 V | 1.2A | 1.6 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | - | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|
|
JANTX1N6844U3DIODE SCHOTTKY 100V 15A U3 |
3,342 | - |
|
Datasheet | - | 3-SMD, No Lead | Bulk | Active | Schottky | 100 V | 15A | 900 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 600pF @ 5V, 1MHz | Military | MIL-PRF-19500/679 | Surface Mount | U3 (SMD-0.5) | -65°C ~ 150°C |
|
|
JANTX1N6844U3/TRDIODE SCHOTTKY 100V 15A U3 |
8,460 | - |
|
Datasheet | - | 3-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 100 V | 15A | 900 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 600pF @ 5V, 1MHz | Military | MIL-PRF-19500/679 | Surface Mount | U3 (SMD-0.5) | -65°C ~ 150°C |
|
|
MNS1N6844U3DIODE SCHOTTKY 100V 20A U3 |
4,001 | - |
|
Datasheet | - | 3-SMD, No Lead | Bulk | Active | Schottky | 100 V | 20A | 1 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 600pF @ 10V, 1MHz | - | - | Surface Mount | U3 (SMD-0.5) | -55°C ~ 175°C |
|
|
1N412BDIODE GEN PURP 100V 100A DO205AA |
7,177 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard | 100 V | 100A | 1.2 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 µA @ 100 V | - | - | - | Stud Mount | DO-205AA (DO-8) | -65°C ~ 200°C |
|
|
SBR6025DIODE SCHOTTKY 25V 60A DO5 |
5,883 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 25 V | 60A | 600 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 25 V | - | - | - | Stud Mount | DO-5 (DO-203AB) | -55°C ~ 150°C |
|
|
SBR6050DIODE SCHOTTKY 50V 60A DO5 |
5,883 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 50 V | 60A | 700 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 50 V | - | - | - | Stud Mount | DO-5 (DO-203AB) | -55°C ~ 150°C |
|
|
SBR60100PPOWER SCHOTTKY |
9,766 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SBR6040RDIODE SCHOTTKY 40V 60A DO203AB |
5,182 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky, Reverse Polarity | 40 V | 60A | 600 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 40 V | - | - | - | Stud Mount | DO-203AB (DO-5) | -65°C ~ 150°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
