Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UJ3D1725K2DIODE SIL CARB 1.7KV 25A TO247-2 |
4,349 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1700 V | 25A | 1.7 V @ 25 A | No Recovery Time > 500mA (Io) | 0 ns | 360 µA @ 1700 V | 1500pF @ 1V, 1MHz | Automotive | AEC-Q101 | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
UJ3D1250K2DIODE SIL CARB 1.2KV 50A TO247-2 |
14,813 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 50A | 1.7 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 400 µA @ 1200 V | 2340pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
UJ3D1210TSDIODE SIL CARB 1.2KV 10A TO220-2 |
8,990 | - |
|
Datasheet | - | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 10A | 1.6 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 110 µA @ 1200 V | 510pF @ 1V, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|

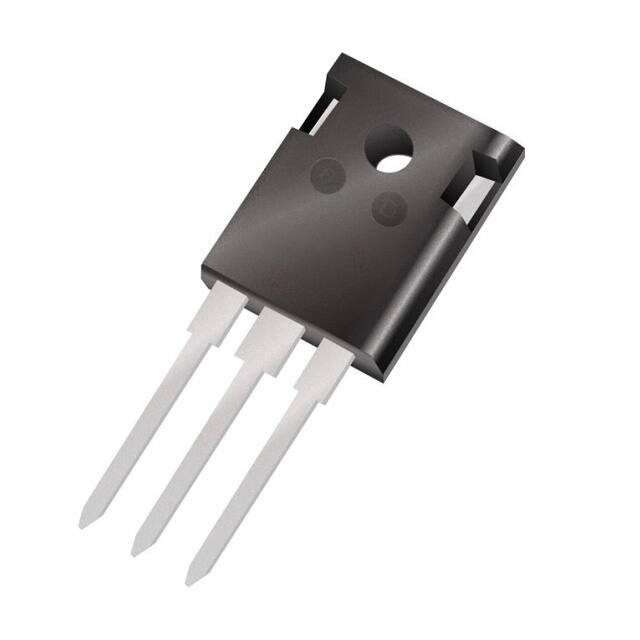

UJ3D06560KSDDIODE SIL CARB 650V 30A TO247-3 |
6,369 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 30A | 1.7 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | 740 µA @ 650 V | 1980pF @ 1V, 1MHz | - | - | Through Hole | TO-247-3 | -55°C ~ 175°C |
|
|
UJ3D1250KDIODE SIL CARB 1.2KV 50A TO247-3 |
6,427 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 50A | 1.7 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 400 µA @ 1200 V | 2340pF @ 1V, 1MHz | - | - | Through Hole | TO-247-3 | -55°C ~ 175°C |
|
UJ3D1202TSDIODE SIL CARB 1.2KV 2A TO220-2 |
16,006 | - |
|
Datasheet | - | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 2A | 1.6 V @ 5 A | No Recovery Time > 500mA (Io) | 0 ns | 22 µA @ 1200 V | 109pF @ 1V, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
UJ3D06506TSDIODE SIL CARB 650V 6A TO220-2 |
57,316 | - |
|
Datasheet | Gen-III | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 6A | 1.7 V @ 6 A | No Recovery Time > 500mA (Io) | 0 ns | 40 µA @ 650 V | 196pF @ 1V, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
|
UJ3D06510TSDIODE SIL CARB 650V 10A TO220-2 |
11,657 | - |
|
Datasheet | Gen-III | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 10A | 1.7 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 60 µA @ 650 V | 327pF @ 1V, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
|
UJ3D1205TSDIODE SIL CARB 1.2KV 5A TO220-2 |
27,393 | - |
|
Datasheet | - | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 5A | 1.6 V @ 5 A | No Recovery Time > 500mA (Io) | 0 ns | 55 µA @ 1200 V | 250pF @ 1V, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
|
UJ3D06520TSDIODE SIL CARB 650V 20A TO220-2 |
6,004 | - |
|
Datasheet | Gen-III | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 20A | 1.7 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 120 µA @ 650 V | 654pF @ 1V, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
