Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG "SJPL-L4VR")
|
SJPL-L4VRDIODE GEN PURP 400V 3A SJP |
6,586 | - |
|
Datasheet | - | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Standard | 400 V | 3A | 1.3 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 50 µA @ 400 V | - | - | - | Surface Mount | SJP | -40°C ~ 150°C |
|

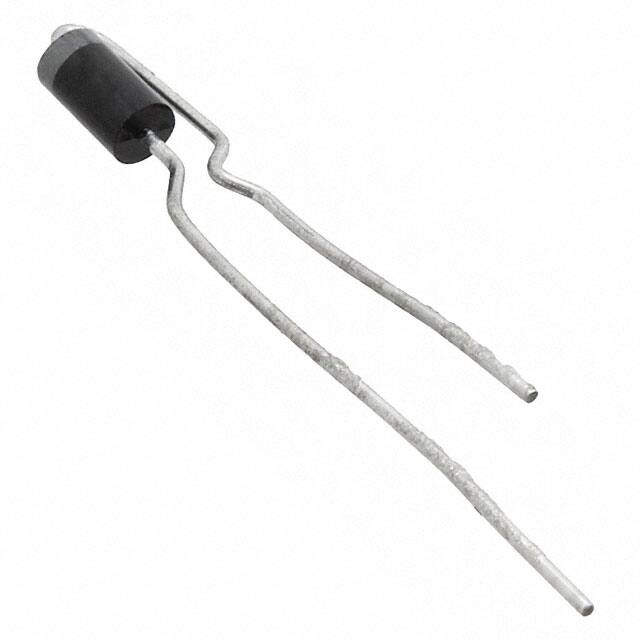

SARS01WDIODE GEN PURP 800V 1.2A AXIAL |
9,882 | - |
|
Datasheet | - | Axial, Radial Bend | Cut Tape (CT) | Active | Standard | 800 V | 1.2A | 920 mV @ 1.2 A | Standard Recovery >500ns, > 200mA (Io) | 18 µs | 10 µA @ 800 V | - | - | - | Through Hole | Axial | -40°C ~ 150°C |
|
EG01CV1DIODE GEN PURP 1KV 500MA AXIAL |
4,681 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 1000 V | 500mA | 3.3 V @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 50 µA @ 1000 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
EP01CV1DIODE GEN PURP 1KV 200MA AXIAL |
7,756 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 1000 V | 200mA | 4 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 200 ns | 5 µA @ 1000 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
|
SJPL-F4VRDIODE GEN PURP 400V 1.5A SJP |
6,740 | - |
|
Datasheet | - | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Standard | 400 V | 1.5A | 1.3 V @ 1.5 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 400 V | - | - | - | Surface Mount | SJP | -40°C ~ 150°C |
.JPG "AG01AV1")
|
AG01AV1DIODE GEN PURP 600V 500MA AXIAL |
5,428 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 600 V | 500mA | 1.8 V @ 600 mA | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 100 µA @ 600 V | - | - | - | Through Hole | Axial | -40°C ~ 150°C |
|
|
AG01V1DIODE GEN PURP 400V 700MA AXIAL |
9,802 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 400 V | 700mA | 1.8 V @ 700 mA | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 100 µA @ 400 V | - | - | - | Through Hole | Axial | -40°C ~ 150°C |
|
|
AM01AV1DIODE GEN PURP 600V 1A AXIAL |
6,728 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 600 V | 1A | 980 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 600 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
|
AM01V1DIODE GEN PURP 400V 1A AXIAL |
2,233 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 400 V | 1A | 980 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 400 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
AM01ZV1DIODE GEN PURP 200V 1A AXIAL |
4,981 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 200 V | 1A | 980 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 200 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
