Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG "AP01CV1")
|
AP01CV1DIODE GEN PURP 1KV 200MA AXIAL |
8,209 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 1000 V | 200mA | 4 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 200 ns | 100 µA @ 1000 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|

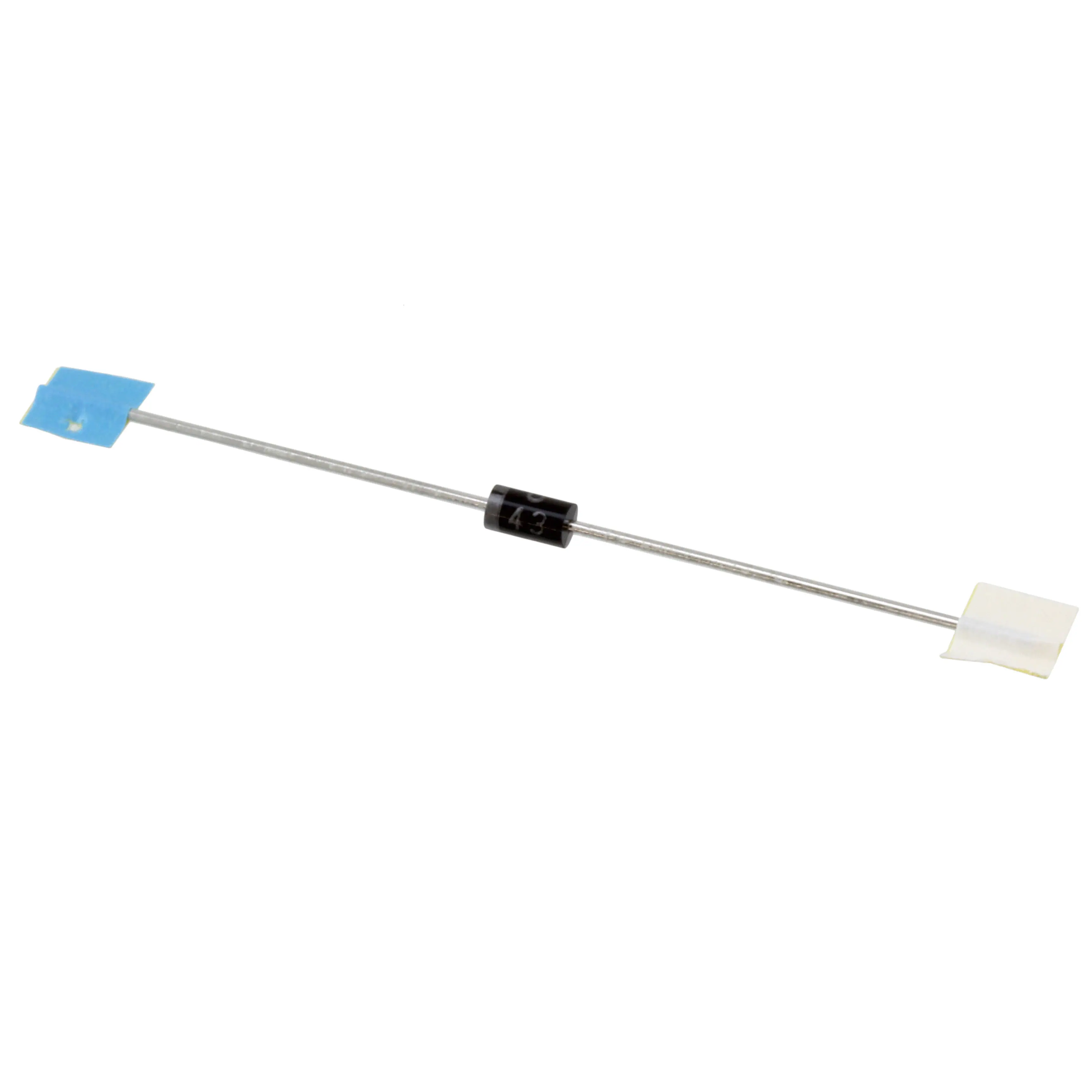

EM 1CV1DIODE GEN PURP 1KV 1A AXIAL |
8,102 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 1000 V | 1A | 1.05 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 µA @ 1000 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
EM 2AV1DIODE GEN PURP 600V 1.2A AXIAL |
5,882 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 600 V | 1.2A | 920 mV @ 1.2 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 600 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
|
EM 2V1DIODE GEN PURP 400V 1.2A AXIAL |
3,105 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 400 V | 1.2A | 920 mV @ 1.2 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 400 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
|
ES01FV1DIODE GEN PURP 1.5KV 500MA AXIAL |
3,879 | - |
|
Datasheet | - | Axial | Cut Tape (CT) | Active | Standard | 1500 V | 500mA | 2 V @ 500 mA | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 10 µA @ 1500 V | - | - | - | Through Hole | - | -40°C ~ 150°C |
|
FMX-1106SDIODE GEN PURP 600V 10A TO220F |
15 | - |
|
Datasheet | - | TO-220-2 Full Pack | Tube | Obsolete | Standard | 600 V | 10A | 1.5 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 50 µA @ 600 V | - | - | - | Through Hole | TO-220F-2L | -40°C ~ 150°C |
|
SG-10LXZ23RDIODE FOR ALTERNATOR (SURFACE MO |
4,619 | - |
|
Datasheet | - | 2-SMD, Gull Wing | Bulk | Active | Standard, Reverse Polarity | 17 V | 35A | 1.05 V @ 35 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Surface Mount | - | -40°C ~ 150°C |
|
|
SG-10LXZ23SDIODE FOR ALTERNATOR (SURFACE MO |
5,069 | - |
|
Datasheet | - | 2-SMD, Gull Wing | Bulk | Active | Standard | 17 V | 35A | 1.05 V @ 35 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Surface Mount | - | -40°C ~ 150°C |
|
|
SG-10LRDIODE FOR ALTERNATOR (SURFACE MO |
7,295 | - |
|
Datasheet | - | 2-SMD, Gull Wing | Bulk | Active | Standard, Reverse Polarity | 20000 V | 30A | 1.2 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Surface Mount | - | -40°C ~ 150°C |
|
|
SG-10LSDIODE FOR ALTERNATOR (SURFACE MO |
2,440 | - |
|
Datasheet | - | 2-SMD, Gull Wing | Bulk | Active | Standard | 20000 V | 30A | 1.2 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Surface Mount | - | -40°C ~ 150°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
