Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

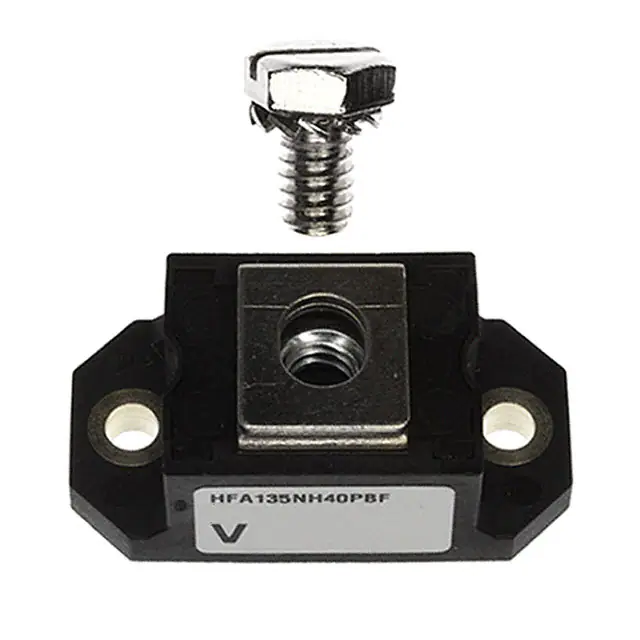

VS-HFA135NH40PBFDIODE GEN PURP 400V 275A D-67 |
136 | - |
|
Datasheet | HEXFRED® | D-67 HALF-PAK | Bulk | Active | Standard | 400 V | 275A | 2 V @ 270 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 3 mA @ 400 V | - | - | - | Chassis Mount | D-67 HALF-PAK | - |
|

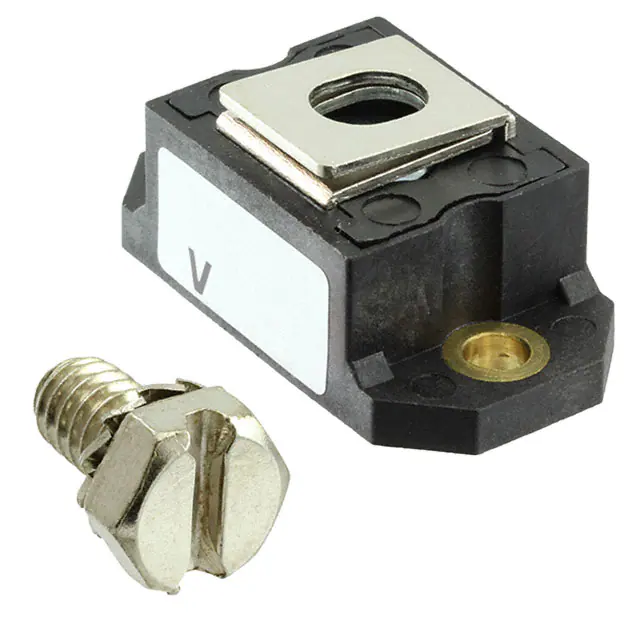

VS-243NQ100PBFDIODE SCHOTTKY 100V 240A D-67 |
168 | - |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Active | Schottky | 100 V | 240A | 950 mV @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 100 V | 5500pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | -55°C ~ 175°C |
|
VS-T85HFL100S05DIODE GEN PURP 1KV 85A D-55 |
368 | - |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 1000 V | 85A | - | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 20 mA @ 1000 V | - | - | - | Chassis Mount | D-55 | - |
|
VS-400UR120DDIODE GP REV 1.2KV 400A DO205AB |
28 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Last Time Buy | Standard, Reverse Polarity | 1200 V | 400A | 1.62 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 1200 V | - | - | - | Stud Mount | DO-205AB (DO-9) | -40°C ~ 200°C |
|
BAV20-TRDIODE GEN PURP 150V 250MA DO35 |
49,217 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 150 V | 250mA | 1 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 150 V | 1.5pF @ 0V, 1MHz | Automotive | AEC-Q101 | Through Hole | DO-204AH (DO-35) | 175°C (Max) |
|
1N4154TRDIODE GEN PURP 25V 150MA DO35 |
48,553 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 25 V | 150mA | 1 V @ 30 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 25 V | 4pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
|
BAW76-TAPDIODE GEN PURP 50V 300MA DO35 |
43,756 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Cut Tape (CT) | Active | Standard | 50 V | 300mA | 1 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 100 nA @ 50 V | 2pF @ 0V, 1MHz | Automotive | AEC-Q101 | Through Hole | DO-204AH (DO-35) | 175°C (Max) |
|
|
1N4448TRDIODE GEN PURP 100V 150MA DO35 |
22,705 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 100 V | 150mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 8 ns | 5 µA @ 75 V | 4pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | 175°C (Max) |
|
BAS16-E3-18DIODE GEN PURP 75V 150MA SOT23-3 |
6,978 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Standard | 75 V | 150mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 6 ns | 1 µA @ 75 V | 4pF @ 0V, 1MHz | - | - | Surface Mount | SOT-23-3 | -55°C ~ 150°C |
|
|
BAS20-E3-18DIODE GP 150V 200MA SOT23-3 |
6,716 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Standard | 150 V | 200mA | 1.25 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 150 V | 5pF @ 0V, 1MHz | - | - | Surface Mount | SOT-23-3 | -55°C ~ 150°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
