Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-60EPU02-N3DIODE GP 200V 60A TO247AC |
554 | - |
|
Datasheet | FRED Pt® | TO-247-2 | Tube | Active | Standard | 200 V | 60A | 1.08 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 28 ns | 50 µA @ 200 V | - | - | - | Through Hole | TO-247AC Modified | -55°C ~ 175°C |
|

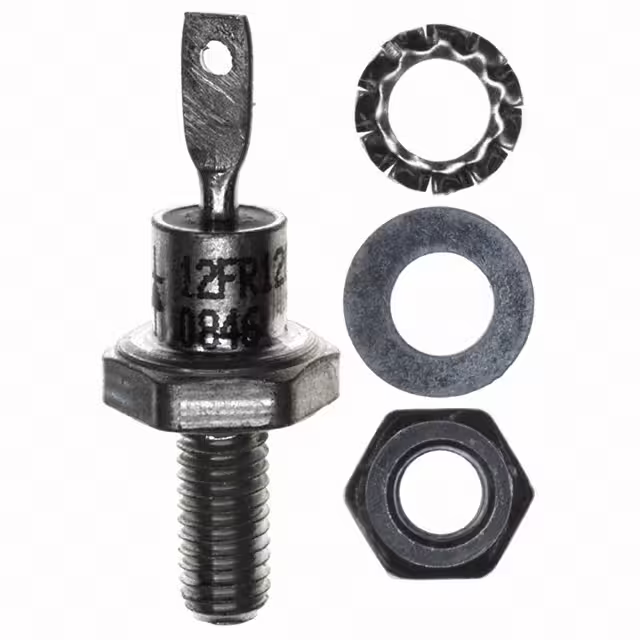

VS-12FR120DIODE GEN PURP 1.2KV 12A DO203AA |
475 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 1200 V | 12A | 1.26 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1200 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|

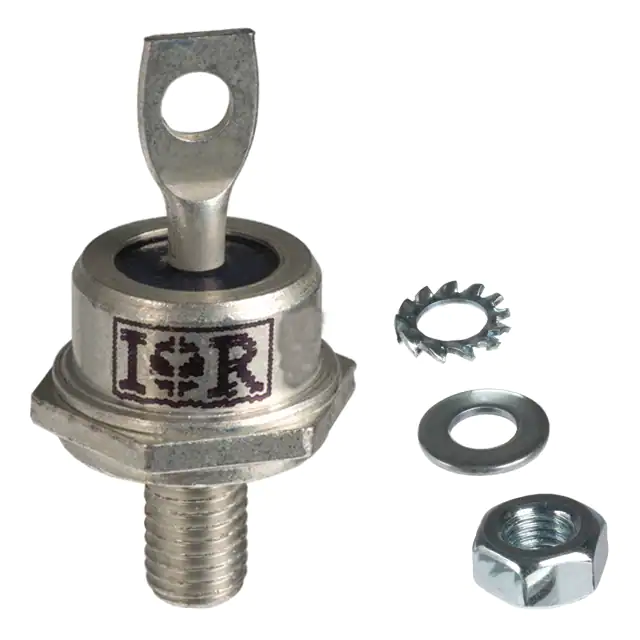

VS-40HF40DIODE GEN PURP 400V 40A DO203AB |
221 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 400 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
|
VS-40HF60DIODE GEN PURP 600V 40A DO203AB |
139 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 600 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
VS-60APF12-M3DIODE GEN PURP 1.2KV 60A TO247AC |
627 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | Standard | 1200 V | 60A | 1.4 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 480 ns | 100 µA @ 1200 V | - | - | - | Through Hole | TO-247AC | -40°C ~ 150°C |
|
|
VS-1N2128ADIODE GEN PURP 50V 60A DO203AB |
102 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 50 V | 60A | 1.3 V @ 188 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 50 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 200°C |
|
|
VS-HFA30PB120-N3DIODE GP 1.2KV 30A TO247AC |
154 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 1200 V | 30A | 4.1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 170 ns | 40 µA @ 1200 V | - | Automotive | AEC-Q101 | Through Hole | TO-247AC Modified | -55°C ~ 150°C |
|
|
VS-70HFL100S05DIODE GEN PURP 1KV 70A DO203AB |
244 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1000 V | 70A | 1.85 V @ 219.8 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 100 µA @ 1000 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
|
|
VS-85HFR60DIODE GEN PURP 600V 85A DO203AB |
120 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 85A | 1.2 V @ 267 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 180°C |
|
VS-T40HF60DIODE GEN PURP 600V 40A D-55 |
124 | - |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 600 V | 40A | - | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 600 V | - | - | - | Chassis Mount | D-55 | - |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
