Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V35PW22HM3/IDIODE SCHOTTKY 200V 35A SLIMDPAK |
3,030 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | Schottky | 200 V | 35A | 990 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 350 µA @ 200 V | 1320pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | SlimDPAK | -40°C ~ 175°C |
|
VS-100BGQ030DIODE SCHOTTKY 30V 100A POWIRTAB |
144 | - |
|
Datasheet | - | PowerTab™, PowIRtab™ | Bulk | Obsolete | Schottky | 30 V | 100A | 580 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2.4 mA @ 30 V | - | - | - | Chassis Mount | PowIRtab™ | -55°C ~ 150°C |
|
|
VS-100BGQ015SCHOTTKY RECT 15V 100A POWLRTAB |
288 | - |
|
Datasheet | - | PowerTab™, PowIRtab™ | Bulk | Obsolete | Schottky | 15 V | 100A | 460 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 18 mA @ 15 V | - | - | - | Chassis Mount | PowIRtab™ | - |
|
|
VS-80EBU04DIODE GEN PURP 400V 80A POWIRTAB |
234 | - |
|
Datasheet | FRED Pt® | PowerTab™, PowIRtab™ | Bulk | Obsolete | Standard | 400 V | 80A | 1.3 V @ 80 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 µA @ 400 V | - | - | - | Chassis Mount | PowIRtab™ | - |
|
VS-175BGQ030HF4DIODE SCHOTTKY 30V 175A POWERTAB |
192 | - |
|
Datasheet | - | PowerTab® | Tube | Obsolete | Schottky | 30 V | 175A | 590 mV @ 175 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 30 V | 8500pF @ 5V, 1MHz | Automotive | AEC-Q101 | Chassis Mount | PowerTab® | -55°C ~ 150°C |
|

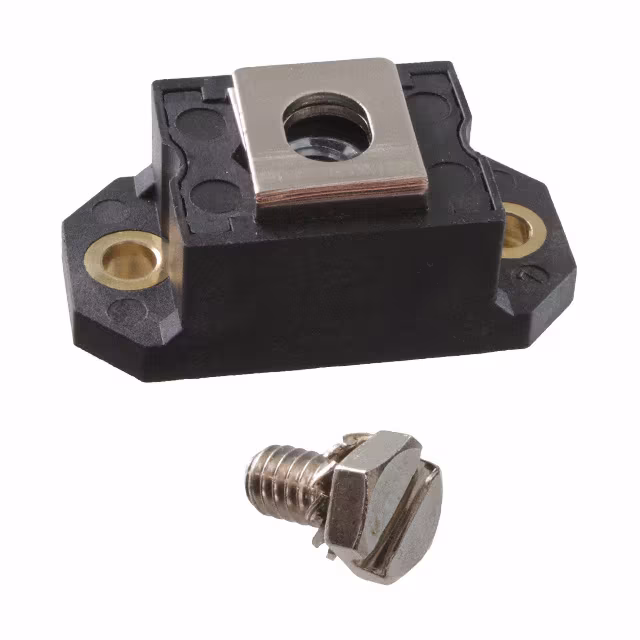

VS-HFA90NH40PBFDIODE GEN PURP 400V 210A D-67 |
187 | - |
|
Datasheet | HEXFRED® | D-67 HALF-PAK | Bulk | Active | Standard | 400 V | 210A | 1.67 V @ 180 A | Fast Recovery =< 500ns, > 200mA (Io) | 140 ns | 2 mA @ 400 V | - | - | - | Chassis Mount | D-67 HALF-PAK | -55°C ~ 150°C |
|
VS-T40HF10DIODE GEN PURP 100V 40A D-55 |
58 | - |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 100 V | 40A | - | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 100 V | - | - | - | Chassis Mount | D-55 | - |
|
VS-150U120DDIODE GP 1.2KV 150A DO205AA |
27 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Last Time Buy | Standard | 1200 V | 150A | 1.47 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 180°C |
|
|
VS-T70HF40DIODE GEN PURP 400V 70A D-55 |
53 | - |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 400 V | 70A | - | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 400 V | - | - | - | Chassis Mount | D-55 | - |
|
|
VS-T70HFL60S02DIODE GEN PURP 600V 70A D-55 |
70 | - |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 600 V | 70A | - | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 100 µA @ 600 V | - | - | - | Chassis Mount | D-55 | - |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
