Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-T110HF100DIODE GEN PURP 1KV 110A D-55 |
91 | - |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 1000 V | 110A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1000 V | - | - | - | Chassis Mount | D-55 | - |
|
VS-150UR120DDIODE GP REV 1.2KV 150A DO205AA |
56 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Last Time Buy | Standard, Reverse Polarity | 1200 V | 150A | 1.47 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 180°C |
|

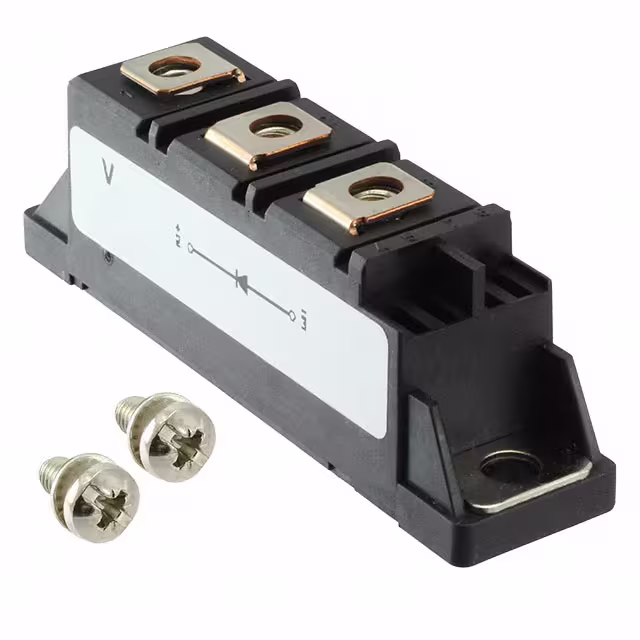

VS-VSKE91/12DIODE GP 1.2KV 100A ADD-A-PAK |
8 | - |
|
Datasheet | - | ADD-A-PAK (3) | Bulk | Active | Standard | 1200 V | 100A | 1.55 V @ 314 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1200 V | - | - | - | Chassis Mount | ADD-A-PAK® | -40°C ~ 150°C |
|
BAT54W-G3-08DIODE SCHOTTKY 30V 200MA SOD123 |
201 | - |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Active | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 10pF @ 1V, 1MHz | - | - | Surface Mount | SOD-123 | 125°C (Max) |
|
VS-10BQ015HM3/5BTDIODE SCHOTTKY 15V 1A DO214AA |
496 | - |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Active | Schottky | 15 V | 1A | 330 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 15 V | 390pF @ 5V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) | -55°C ~ 125°C |
|
EGL41D-E3/97DIODE GEN PURP 200V 1A DO213AB |
488 | - |
|
Datasheet | SUPERECTIFIER® | DO-213AB, MELF (Glass) | Tape & Reel (TR) | Active | Standard | 200 V | 1A | 1 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 5 µA @ 200 V | 20pF @ 4V, 1MHz | - | - | Surface Mount | DO-213AB | -65°C ~ 175°C |
|
SS34-M3/57TDIODE SCHOTTKY 40V 3A DO214AB |
1,537 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 40 V | 3A | 500 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | - | - | - | Surface Mount | DO-214AB (SMC) | -55°C ~ 125°C |
|
|
ES2C-E3/52TDIODE GEN PURP 150V 2A DO214AA |
1,477 | - |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Active | Standard | 150 V | 2A | 900 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 10 µA @ 150 V | 18pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 150°C |
~~2.jpg "ESH2PDHM3/84A")
|
ESH2PDHM3/84ADIODE GEN PURP 200V 2A DO220AA |
942 | - |
|
Datasheet | eSMP® | DO-220AA | Tape & Reel (TR) | Active | Standard | 200 V | 2A | 980 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 200 V | 25pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-220AA (SMP) | -55°C ~ 175°C |
|
|
SS32-E3/57TDIODE SCHOTTKY 20V 3A DO214AB |
1,156 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 20 V | 3A | 500 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 20 V | - | - | - | Surface Mount | DO-214AB (SMC) | -55°C ~ 125°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
