Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;3.jpg "VS-65APS12LHM3")
|
VS-65APS12LHM3DIODE GEN PURP 1.2KV 65A TO247AD |
8,905 | - |
|
Datasheet | - | TO-3P-3, SC-65-3 | Tube | Active | Standard | 1200 V | 65A | 1.12 V @ 65 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 1200 V | - | Automotive | AEC-Q101 | Through Hole | TO-247AD (TO-3P) | -40°C ~ 150°C |
|

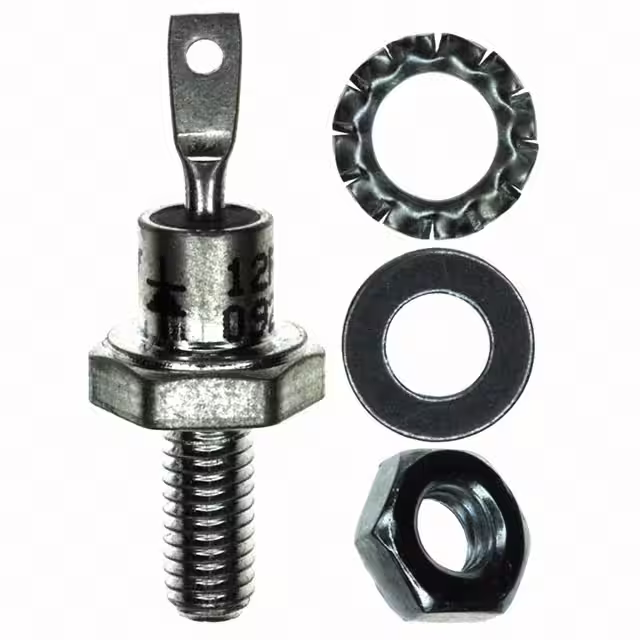

VS-12FR20DIODE GEN PURP 200V 12A DO203AA |
2,623 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 200 V | 12A | 1.26 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 200 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
VS-45EPF12LHM3DIODE GEN PURP 1.2KV 45A TO247AD |
5,470 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 1200 V | 45A | 1.44 V @ 45 A | Fast Recovery =< 500ns, > 200mA (Io) | 450 ns | 100 µA @ 1200 V | - | Automotive | AEC-Q101 | Through Hole | TO-247AD | -40°C ~ 150°C |
|
VS-30APF10-M3DIODE GEN PURP 1KV 30A TO247AC |
8,946 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | Standard | 1000 V | 30A | 1.41 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 450 ns | 100 µA @ 1000 V | - | - | - | Through Hole | TO-247AC | -40°C ~ 150°C |
|
VS-40EPS16-M3DIODE GP 1.6KV 40A TO247AC |
6,765 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 1600 V | 40A | 1.14 V @ 40 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 1600 V | - | - | - | Through Hole | TO-247AC Modified | -40°C ~ 150°C |
|
|
VS-65APS16LHM3DIODE GEN PURP 1.6KV 65A TO247AD |
8,866 | - |
|
Datasheet | - | TO-3P-3, SC-65-3 | Tube | Active | Standard | 1600 V | 65A | 1.17 V @ 65 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 1600 V | - | Automotive | AEC-Q101 | Through Hole | TO-247AD (TO-3P) | -40°C ~ 150°C |
|
|
VS-HFA06PB120-N3DIODE GP 1.2KV 6A TO247AC |
6,033 | - |
|
Datasheet | HEXFRED® | TO-247-2 | Tube | Active | Standard | 1200 V | 6A | 3 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 5 µA @ 1200 V | - | - | - | Through Hole | TO-247AC Modified | -55°C ~ 150°C |
|
VS-16F60DIODE GEN PURP 600V 16A DO203AA |
6,489 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 600 V | 16A | 1.23 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|

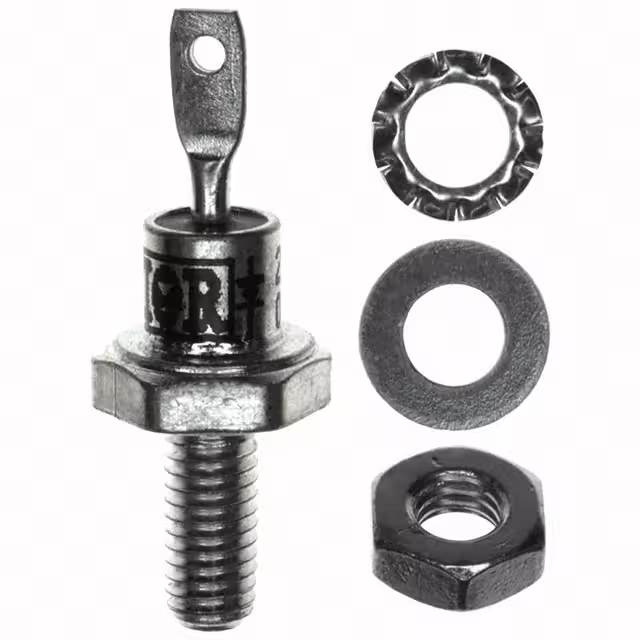

VS-25F60DIODE GEN PURP 600V 25A DO203AA |
7,306 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 600 V | 25A | 1.3 V @ 78 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
VS-65APF12LHM3DIODE GEN PURP 1.2KV 65A TO247AD |
9,107 | - |
|
Datasheet | - | TO-3P-3, SC-65-3 | Tube | Active | Standard | 1200 V | 65A | 1.42 V @ 65 A | Fast Recovery =< 500ns, > 200mA (Io) | 480 ns | 100 µA @ 1200 V | - | Automotive | AEC-Q101 | Through Hole | TO-247AD (TO-3P) | -40°C ~ 150°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
