Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-20ETF06S-M3DIODE GEN PURP 600V 20A TO263AB |
6,809 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | Standard | 600 V | 20A | 1.3 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 160 ns | 100 µA @ 600 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | -40°C ~ 150°C |
|
|
VBT2080S-E3/8WDIODE SCHOTTKY 80V 20A TO263AB |
7,208 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Schottky | 80 V | 20A | 920 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 700 µA @ 80 V | - | - | - | Surface Mount | TO-263AB (D2PAK) | -55°C ~ 150°C |
|
V40DL45HM3_A/IDIODE SCHOTTKY 45V 40A TO263AC |
5,613 | - |
|
Datasheet | eSMP®, TMBS® | TO-263-3, D2PAK (2 Leads + Tab), Variant | Tape & Reel (TR) | Active | Schottky | 45 V | 40A | 660 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | - | Automotive | AEC-Q101 | Surface Mount | TO-263AC (SMPD) | -40°C ~ 150°C |
|
|
V30KM100-M3/HDIODE SCHOTTKY 100V 4.4A FLATPAK |
3,366 | - |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | Schottky | 100 V | 4.4A | 810 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 100 V | 2450pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | FlatPAK (5x6) | -40°C ~ 165°C |
|
VS-60APU04LHN3DIODE GEN PURP 400V 60A TO247AD |
4,331 | - |
|
Datasheet | FRED Pt® | TO-247-3 | Tube | Active | Standard | 400 V | 60A | 1.25 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 85 ns | 50 µA @ 400 V | - | - | - | Through Hole | TO-247AD | -55°C ~ 175°C |
|
|
VS-82PF120DIODE GEN PURP 120V 80A DO203AB |
2,448 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 120 V | 80A | 1.4 V @ 220 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -55°C ~ 180°C |
|

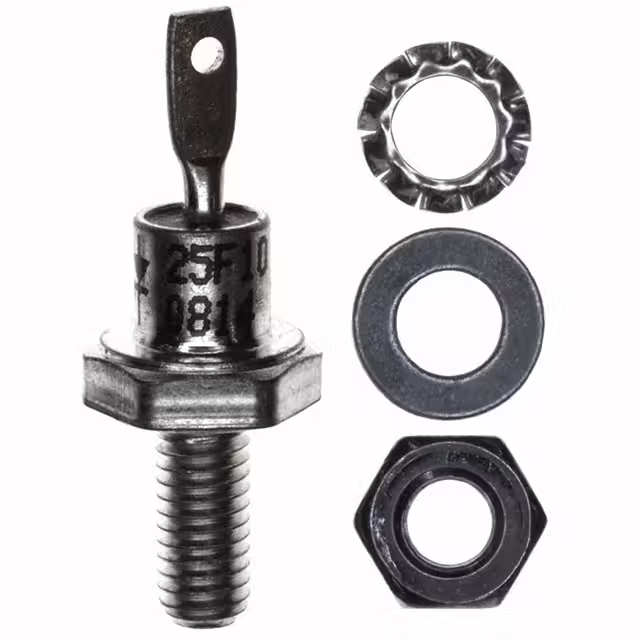

VS-25F10DIODE GEN PURP 100V 25A DO203AA |
7,190 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 100 V | 25A | 1.3 V @ 78 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 100 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
VS-1N1190DIODE GEN PURP 600V 35A DO203AB |
24 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 600 V | 35A | 1.7 V @ 110 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
VS-1N1199ADIODE GEN PURP 50V 12A DO203AA |
2,550 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 50 V | 12A | 1.35 V @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 3 mA @ 50 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 200°C |
|
1N4948GP-E3/73DIODE GEN PURP 1KV 1A DO204AL |
3,961 | - |
|
Datasheet | SUPERECTIFIER® | DO-204AL, DO-41, Axial | Cut Tape (CT) | Active | Standard | 1000 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 1 µA @ 1000 V | 15pF @ 4V, 1MHz | - | - | Through Hole | DO-204AL (DO-41) | -65°C ~ 175°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
