Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
189NQ135DIODE SCHOTTKY 135V 180A D-67 |
8,757 | - |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 135 V | 180A | 1.07 V @ 180 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4.5 mA @ 135 V | 4500pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
181NQ035DIODE SCHOTTKY 35V 180A D-67 |
8,883 | - |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 35 V | 180A | 660 mV @ 180 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 15 mA @ 35 V | 7800pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|

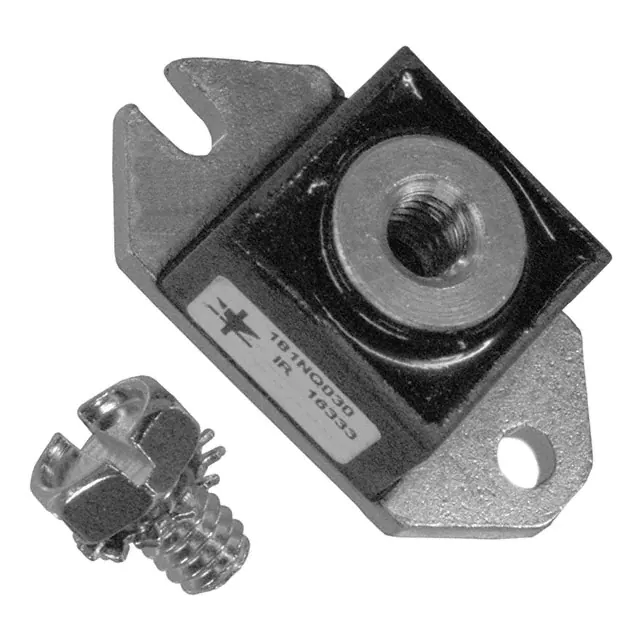

181NQ040DIODE SCHOTTKY 40V 180A D-67 |
7,325 | - |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 40 V | 180A | 660 mV @ 180 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 15 mA @ 40 V | 7800pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
181NQ045RDIODE SCHOTTKY 45V 180A D-67 |
7,975 | - |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 45 V | 180A | 660 mV @ 180 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 15 mA @ 45 V | 7800pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|

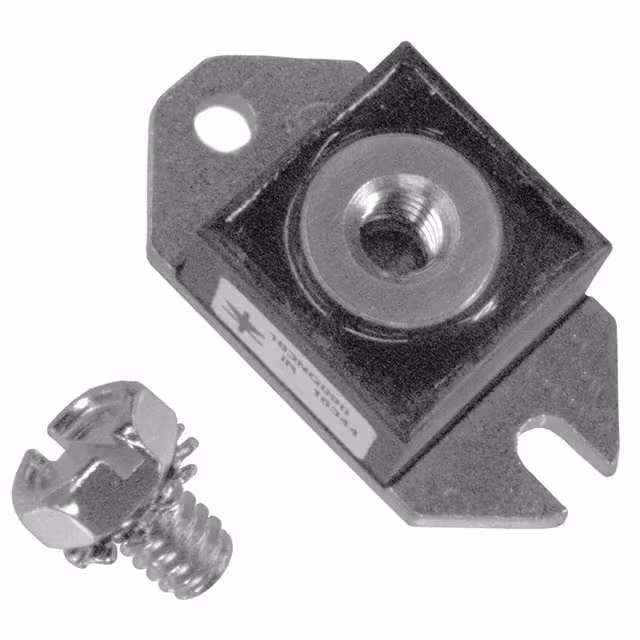

183NQ080DIODE SCHOTTKY 80V 180A D-67 |
7,899 | - |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 80 V | 180A | 950 mV @ 180 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4.5 mA @ 80 V | 4150pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
1N4048RDIODE GEN PURP 250V 275A DO205AB |
5,574 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Obsolete | Standard | 250 V | 275A | 1.35 V @ 275 A | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 250 V | - | - | - | Stud Mount | DO-205AB (DO-9) | -65°C ~ 190°C |
|
|
IRKE91/04ADIODE GP 400V 100A ADD-A-PAK |
2,170 | - |
|
Datasheet | - | ADD-A-PAK (2) | Bulk | Obsolete | Standard | 400 V | 100A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 400 V | - | - | - | Chassis Mount | ADD-A-PAK® | - |
|
|
IRKE91/08ADIODE GP 800V 100A ADD-A-PAK |
8,131 | - |
|
Datasheet | - | ADD-A-PAK (2) | Bulk | Obsolete | Standard | 800 V | 100A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 800 V | - | - | - | Chassis Mount | ADD-A-PAK® | - |
|
|
IRKE91/12ADIODE GP 1.2KV 100A ADD-A-PAK |
8,143 | - |
|
Datasheet | - | ADD-A-PAK (2) | Bulk | Obsolete | Standard | 1200 V | 100A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1200 V | - | - | - | Chassis Mount | ADD-A-PAK® | - |
|
1N2059DIODE GEN PURP 300V 250A DO205AB |
5,190 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Obsolete | Standard | 300 V | 250A | 1.25 V @ 250 A | Standard Recovery >500ns, > 200mA (Io) | - | 17 mA @ 300 V | - | - | - | Stud Mount | DO-205AB (DO-9) | -65°C ~ 200°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
