Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-SD553C45S50LDIODE GP 4.5KV 560A DO200AB |
7,740 | - |
|
Datasheet | - | DO-200AB, B-PUK | Bulk | Obsolete | Standard | 4500 V | 560A | 3.24 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | 5 µs | 75 mA @ 4500 V | - | - | - | Clamp On | DO-200AB, B-PUK | - |
|
|
VS-SD703C12S20LDIODE GP 1.2KV 700A DO200AB |
7,865 | - |
|
Datasheet | - | DO-200AB, B-PUK | Bulk | Obsolete | Standard | 1200 V | 700A | 2.2 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 50 mA @ 1200 V | - | - | - | Clamp On | DO-200AB, B-PUK | - |
|
|
VS-SD703C12S30LDIODE GP 1.2KV 790A DO200AB |
6,106 | - |
|
Datasheet | - | DO-200AB, B-PUK | Bulk | Obsolete | Standard | 1200 V | 790A | 1.85 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | 3 µs | 50 mA @ 1200 V | - | - | - | Clamp On | DO-200AB, B-PUK | - |
|
|
VS-SD703C25S30LDIODE GP 2.5KV 790A DO200AB |
4,935 | - |
|
Datasheet | - | DO-200AB, B-PUK | Bulk | Obsolete | Standard | 2500 V | 790A | 1.85 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | 3 µs | 50 mA @ 2500 V | - | - | - | Clamp On | DO-200AB, B-PUK | - |
|
T85HFL10S05DIODE GEN PURP 100V 85A D-55 |
4,357 | - |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Standard | 100 V | 85A | - | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 20 mA @ 100 V | - | - | - | Chassis Mount | D-55 | - |
|

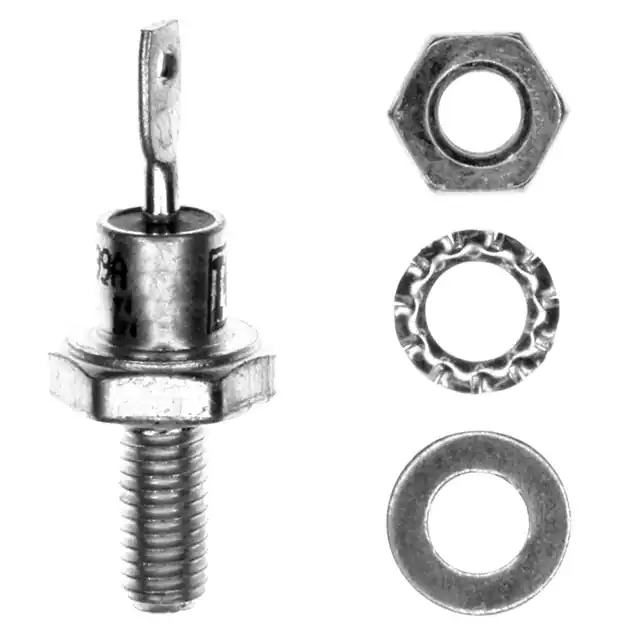

VS-1N3882DIODE GEN PURP 300V 6A DO203AA |
4,979 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 300 V | 6A | 1.4 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 15 µA @ 300 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|
VS-1N3890DIODE GEN PURP 100V 12A DO203AA |
9,827 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 100 V | 12A | 1.4 V @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|
|
VS-1N3891DIODE GEN PURP 200V 12A DO203AA |
8,200 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 200 V | 12A | 1.4 V @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 25 µA @ 200 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|
|
VS-1N3892DIODE GEN PURP 300V 12A DO203AA |
9,517 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 300 V | 12A | 1.4 V @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 25 µA @ 300 V | - | - | - | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|
30HFU-100DIODE GEN PURP 100V 30A DO203AB |
4,984 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Obsolete | Standard | 100 V | 30A | 1.45 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 35 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
