Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-SD800C36LDIODE GP 3.6KV 1180A DO200AB |
8,124 | - |
|
Datasheet | - | DO-200AB, B-PUK | Bulk | Obsolete | Standard | 3600 V | 1180A | 1.66 V @ 2000 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 3600 V | - | - | - | Clamp On | DO-200AB, B-PUK | - |
|
|
VS-SD800C45LDIODE GP 4.5KV 1065A DO200AB |
5,706 | - |
|
Datasheet | - | DO-200AB, B-PUK | Bulk | Obsolete | Standard | 4500 V | 1065A | 1.95 V @ 2000 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 4500 V | - | - | - | Clamp On | DO-200AB, B-PUK | - |
|
200HF120PVDIODE GP 1.2KV 200A DO205AC |
2,157 | - |
|
Datasheet | - | DO-205AC, DO-30, Stud | Bulk | Obsolete | Standard | 1200 V | 200A | 1.45 V @ 628 A | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 200 V | - | - | - | Stud Mount | DO-205AC (DO-30) | -40°C ~ 180°C |
|

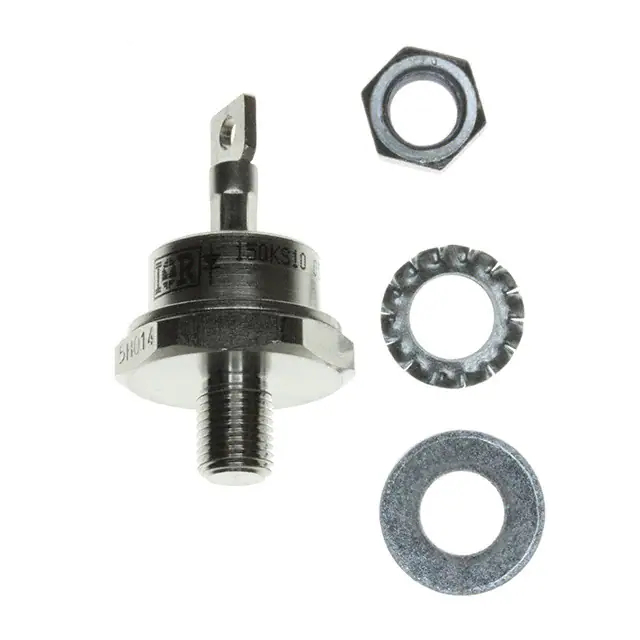

VS-150KS20DIODE GEN PURP 200V 150A B-42 |
7,669 | - |
|
Datasheet | - | B-42 | Bulk | Obsolete | Standard | 200 V | 150A | 1.33 V @ 471 A | Standard Recovery >500ns, > 200mA (Io) | - | 35 mA @ 200 V | - | - | - | Chassis, Stud Mount | B-42 | -40°C ~ 200°C |
|
|
VS-150KS40DIODE GEN PURP 400V 150A B-42 |
5,875 | - |
|
Datasheet | - | B-42 | Bulk | Obsolete | Standard | 400 V | 150A | 1.33 V @ 471 A | Standard Recovery >500ns, > 200mA (Io) | - | 35 mA @ 400 V | - | - | - | Chassis, Stud Mount | B-42 | -40°C ~ 200°C |
|
|
VS-150KS60DIODE GEN PURP 600V 150A B-42 |
4,367 | - |
|
Datasheet | - | B-42 | Bulk | Obsolete | Standard | 600 V | 150A | 1.33 V @ 471 A | Standard Recovery >500ns, > 200mA (Io) | - | 35 mA @ 600 V | - | - | - | Chassis, Stud Mount | B-42 | -40°C ~ 200°C |
|
VS-SD1700C24KDIODE GP 2.4KV 2080A DO200AC |
2,212 | - |
|
Datasheet | - | DO-200AC, K-PUK | Bulk | Obsolete | Standard | 2400 V | 2080A | 1.81 V @ 4000 A | Standard Recovery >500ns, > 200mA (Io) | - | 75 mA @ 2400 V | - | - | - | Clamp On | DO-200AC, K-PUK | - |
|
|
VS-SD1700C30KDIODE GEN PURP 3KV 2080A DO200AC |
3,960 | - |
|
Datasheet | - | DO-200AC, K-PUK | Bulk | Obsolete | Standard | 3000 V | 2080A | 1.81 V @ 4000 A | Standard Recovery >500ns, > 200mA (Io) | - | 75 mA @ 3000 V | - | - | - | Clamp On | DO-200AC, K-PUK | - |
|
|
VS-SD1700C36KDIODE GP 3.6KV 2080A DO200AC |
3,162 | - |
|
Datasheet | - | DO-200AC, K-PUK | Bulk | Obsolete | Standard | 3600 V | 2080A | 1.81 V @ 4000 A | Standard Recovery >500ns, > 200mA (Io) | - | 75 mA @ 3600 V | - | - | - | Clamp On | DO-200AC, K-PUK | - |
|
|
VS-SD1700C45KDIODE GP 4.5KV 1875A DO200AC |
9,931 | - |
|
Datasheet | - | DO-200AC, K-PUK | Bulk | Obsolete | Standard | 4500 V | 1875A | 2.11 V @ 4000 A | Standard Recovery >500ns, > 200mA (Io) | - | 75 mA @ 4500 V | - | - | - | Clamp On | DO-200AC, K-PUK | - |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
