Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

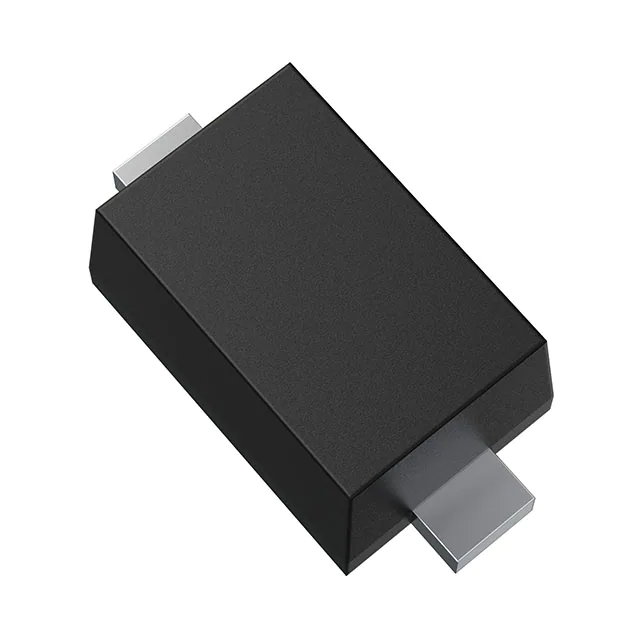

BAS516,L3FDIODE GEN PURP 100V 250MA ESC |
59,746 | - |
|
Datasheet | - | SC-79, SOD-523 | Tape & Reel (TR) | Active | Standard | 100 V | 250mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 3 ns | 200 nA @ 80 V | 0.35pF @ 0V, 1MHz | - | - | Surface Mount | ESC | 150°C (Max) |
|
1SS352,H3FDIODE GEN PURP 80V 100MA SC76-2 |
156,331 | - |
|
Datasheet | - | SC-76A | Tape & Reel (TR) | Active | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 500 nA @ 80 V | 3pF @ 0V, 1MHz | - | - | Surface Mount | SC-76-2 | 125°C (Max) |
|
TBAS16,LMDIODE GEN PURP 80V 215MA SOT23-3 |
13,876 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Standard | 80 V | 215mA | - | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Surface Mount | SOT-23-3 | - |
|
CES521,L3FDIODE SCHOTTKY 30V 200MA ESC |
34,147 | - |
|
Datasheet | - | SC-79, SOD-523 | Tape & Reel (TR) | Active | Schottky | 30 V | 200mA | 500 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | - | 30 µA @ 30 V | 26pF @ 0V, 1MHz | - | - | Surface Mount | ESC | 125°C (Max) |
|
CTS520,L3FDIODE SCHOTTKY 30V 200MA CST2 |
527,444 | - |
|
Datasheet | - | SOD-882 | Tape & Reel (TR) | Active | Schottky | 30 V | 200mA | 600 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | - | 5 µA @ 30 V | 16pF @ 0V, 1MHz | - | - | Surface Mount | CST2 | 125°C (Max) |
|
1SS193,LFDIODE GEN PURP 80V 100MA S-MINI |
80,240 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 500 nA @ 80 V | 3pF @ 0V, 1MHz | - | - | Surface Mount | S-Mini | 125°C (Max) |
|
|
CES520,L3FDIODE SCHOTTKY 30V 200MA ESC |
45,917 | - |
|
Datasheet | - | SC-79, SOD-523 | Tape & Reel (TR) | Active | Schottky | 30 V | 200mA | 600 mV @ 200 mA | Small Signal =< 200mA (Io), Any Speed | - | 5 µA @ 30 V | 17pF @ 0V, 1MHz | - | - | Surface Mount | ESC | 125°C (Max) |
|
1SS367,H3FDIODE SCHOTTKY 10V 100MA USC |
39,955 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Active | Schottky | 10 V | 100mA | 500 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 20 µA @ 10 V | 40pF @ 0V, 1MHz | - | - | Surface Mount | USC | 125°C (Max) |
|
|
1SS389,L3FDIODE SCHOTTKY 10V 100MA ESC |
37,590 | - |
|
Datasheet | - | SC-79, SOD-523 | Tape & Reel (TR) | Active | Schottky | 10 V | 100mA | 500 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 20 µA @ 10 V | 40pF @ 0V, 1MHz | - | - | Surface Mount | ESC | 125°C (Max) |
|
|
1SS406,H3FDIODE SCHOTTKY 20V 50MA USC |
5,628 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Active | Schottky | 20 V | 50mA | 550 mV @ 50 mA | Small Signal =< 200mA (Io), Any Speed | - | 500 nA @ 20 V | 3.9pF @ 0V, 1MHz | - | - | Surface Mount | USC | 125°C (Max) |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
