Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CRF03(TE85L,Q,M)DIODE GEN PURP 600V 700MA S-FLAT |
5,154 | - |
|
Datasheet | - | SOD-123F | Tape & Reel (TR) | Obsolete | Standard | 600 V | 700mA | 2 V @ 700 mA | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 50 µA @ 600 V | - | - | - | Surface Mount | S-FLAT (1.6x3.5) | -40°C ~ 150°C |
|
U1GWJ49(TE12L,F)DIODE SCHOTTKY 40V 1A PW-MINI |
8,245 | - |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | Schottky | 40 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | - | - | - | Surface Mount | PW-MINI | -40°C ~ 125°C |
|
DSF07S30U(TPH3,F)DIODE SCHOTTKY 30V 700MA USC |
7,763 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 700mA | 450 mV @ 700 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 30 V | 170pF @ 0V, 1MHz | - | - | Surface Mount | USC | 125°C (Max) |
|
|
DSF05S30U(TPH3,F)DIODE SCHOTTKY 30V 500MA USC |
4,079 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 500mA | 450 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | - | - | Surface Mount | USC | 125°C (Max) |
|
CMH05A(TE12L,Q,M)DIODE GEN PURP 400V 1A M-FLAT |
6,518 | - |
|
Datasheet | - | SOD-128 | Tape & Reel (TR) | Obsolete | Standard | 400 V | 1A | 1.8 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 400 V | - | - | - | Surface Mount | M-FLAT (2.4x3.8) | -40°C ~ 150°C |

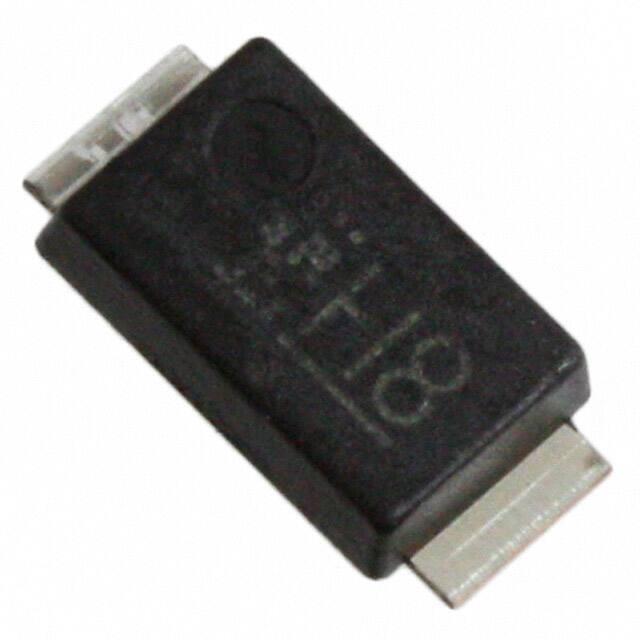

.JPG "CMH08A(TE12L,Q,M)")
|
CMH08A(TE12L,Q,M)DIODE GEN PURP 400V 2A M-FLAT |
4,353 | - |
|
Datasheet | - | SOD-128 | Tape & Reel (TR) | Obsolete | Standard | 400 V | 2A | 1.8 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 400 V | - | - | - | Surface Mount | M-FLAT (2.4x3.8) | -40°C ~ 150°C |
|
TRS6E65C,S1AQDIODE SIL CARB 650V 6A TO220-2L |
5,245 | - |
|
Datasheet | - | TO-220-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 6A | 1.7 V @ 6 A | No Recovery Time > 500mA (Io) | 0 ns | 90 µA @ 650 V | 35pF @ 650V, 1MHz | - | - | Through Hole | TO-220-2L | 175°C (Max) |
|
TRS12E65C,S1QDIODE SIL CARB 650V 12A TO220-2L |
3,177 | - |
|
Datasheet | - | TO-220-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 12A | 1.7 V @ 12 A | No Recovery Time > 500mA (Io) | 0 ns | 90 µA @ 170 V | 65pF @ 650V, 1MHz | - | - | Through Hole | TO-220-2L | 175°C (Max) |
|
TRS10E65C,S1QDIODE SIL CARB 650V 10A TO220-2L |
4,224 | - |
|
Datasheet | - | TO-220-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 10A | 1.7 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 90 µA @ 650 V | - | - | - | Through Hole | TO-220-2L | 175°C (Max) |
|
1SS193S,LF(DDIODE GEN PURP 80V 100MA S-MINI |
5,886 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 500 nA @ 80 V | 3pF @ 0V, 1MHz | - | - | Surface Mount | S-Mini | 125°C (Max) |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
