RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JTT1596S18P4X1596MHZ PATCH ANTENNA, DIMENSION |
4,701 | - |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz) | 1.596GHz | 1.593GHz ~ 1.599GHz | Ceramic Patch | 1 | - | 15dB | -1dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
JLT1596S20P4X1596MHZ PATCH ANTENNA, DIMENSION |
3,272 | - |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz) | 1.596GHz | 1.593GHz ~ 1.599GHz | Ceramic Patch | 1 | - | 15dB | - | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
JLTD1575-1602S25N4XGPS/GLONASS SMD PATCH ANTENNA, S |
1,258 | - |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | - | 10dB | - | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
JTT1575S35P4XGPS PATCH ANTENNA, DIMENSION 35* |
4,533 | - |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | - | 15dB | 2dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
JTT1575S35P3XGPS PATCH ANTENNA, DIMENSION 35* |
3,227 | - |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | 3 | 15dB | 6.5dBi | - | - | Pin | - | - | - | Surface Mount | 0.118" (3.00mm) | - | |
|
JTTD1575-1602S35P4XGPS/GLONASS SMD PATCH ANTENNA, D |
4,011 | - |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.572GHz ~ 1.578GHz, 1.599GHz ~ 1.605GHz | Ceramic Patch | 2 | - | 15dB | 2dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
JTT915S25P4X915MHZ PATCH ANTENNA, DIMENSION |
1,193 | - |
|
Datasheet | - | Active | - | UHF (300MHz ~ 1GHz) | 903MHz | 900MHz ~ 906MHz | Ceramic Patch | 1 | - | 10dB | - | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
JLT868S25P4X868MHZ PATCH ANTENNA, DIMENSION |
4,900 | - |
|
Datasheet | - | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 865MHz ~ 871MHz | Ceramic Patch | 1 | - | 15dB | - | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
JLT868S50P9X868MHZ PATCH ANTENNA, DIMENSION |
2,665 | - |
|
Datasheet | - | Active | - | UHF (300MHz ~ 1GHz) | 866.5MHz | 863.5MHz ~ 869.5MHz | Ceramic Patch | 1 | - | 15dB | - | - | - | Pin | - | - | - | Surface Mount | 0.354" (9.00mm) | - | |
|

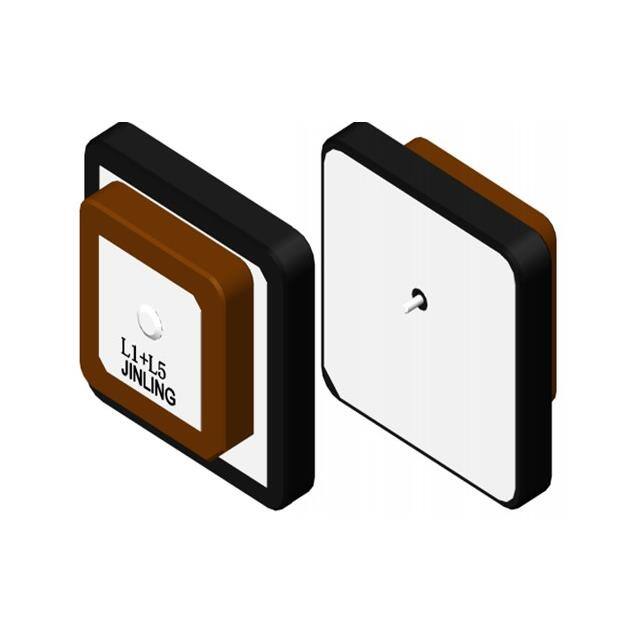

JLTD1176-1575S25-18P4-2XTWO LAYER GNSS PATCH ANTENNA |
3,645 | - |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | 1.173GHz ~ 1.179GHz, 1.572GHz ~ 1.578GHz | Ceramic Patch | 2 | - | 10dB | - | - | - | Pin | - | - | - | Surface Mount | 0.236" (6.00mm) | - |
