RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JLTD1616-2492S33-25P6-2.5XTWO LAYER GNSS PATCH ANTENNA |
3,492 | - |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.616GHz, 2.492GHz | 1.613GHz ~ 1.619GHz, 2.489GHz ~ 2.495GHz | Ceramic Patch | 2 | - | 10dB, 20dB | - | - | - | Pin | - | - | - | Surface Mount | 0.335" (8.50mm) | - | |
|

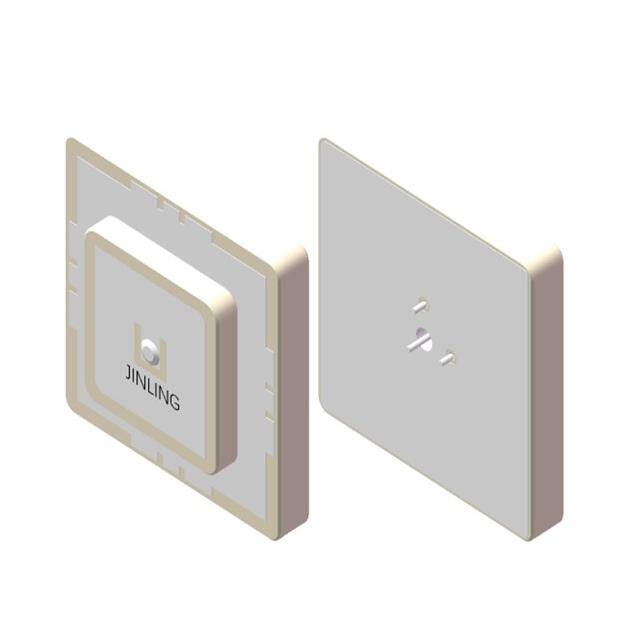

JLTD1616-2492S40-25P6-4XGNSS PATCH ANTENNA |
3,416 | - |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.561GHz, 1.575GHz, 1.616GHz, 2.492GHz | - | Ceramic Patch | 4 | - | 10dB, 15dB | 3dBi, 3.5dBi, 4dBi | - | - | Pin | - | - | - | Surface Mount | 0.394" (10.00mm) | - | |
|
JCE058GPS&GSM&WIFI ANTENNA |
4,686 | - |
|
Datasheet | - | Active | Cellular, Navigation, WiFi | Wide Band | 892MHz, 1.575GHz, 1.94GHz, 2.442GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.483GHz | Module | 4 | 1.5, 2 | - | 2dBi, 2dBic, 2dBi, 3dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Screw | 1.890" (48.00mm) | GPS, GSM, Wi-Fi | |
|
JCF915-8LORA 915MHZ FIBERGLASS ANTENNA 8 |
2,136 | - |
|
Datasheet | - | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Straight | 1 | 1.5 | - | 8dBic | 100 W | - | N-J | - | - | - | Bracket Mount | 0.039" (1.00mm) | - | |
|
JCF868-8LORA 868MHZ FIBERGLASS ANTENNA 8 |
4,895 | - |
|
Datasheet | - | Box | Active | - | UHF (300MHz ~ 1GHz) | - | 868MHz | Whip, Straight | 1 | 1.5 | - | 8dBic | 100 W | - | N-J | - | - | - | Bracket Mount | 0.039" (1.00mm) | - |
|
|
JCA225SGNSS L1+L2 ACTIVE ANTENNA |
3,349 | - |
|
Datasheet | - | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.241GHz, 1.584GHz | 1.205GHz ~ 1.278GHz, 1.559GHz ~ 1.61GHz | Dome | 2 | 2 | - | 3dBi, 3dBi | - | LNA | TNC-K | IP67 | - | - | Panel Mount | 1.811" (46.00mm) | GNSS | |
|
|
JCN228FGNSS MULTI-BAND SURVEYING ANTENN |
4,140 | - |
|
Datasheet | - | Active | Navigation | - | - | - | Module | 1 | 1.5 | - | 5.5dBi | - | Cable - 100mm, LNA | MCX Male | - | - | - | Screw | - | Galileo, GLONASS, GNSS, GPS | |
|
|
JCA247GNSS ACTIVE ANTENNA |
1,285 | - |
|
Datasheet | - | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.581GHz | 1.561GHz ~ 1.602GHz | Dome | 1 | 1.5 | - | 3dBic | - | LNA | N Type Female | IP66 | - | - | Screw | 3.984" (101.20mm) | GNSS |
