RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1001312RF ANT 2.4GHZ CHIP SOLDER SMD |
1,973 | - |
|
Datasheet | Savvi™ | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 1.8 | - | 1.72dBi | - | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1002649EMBEDDED ANTENNA, GPS, GLONASS, |
3,020 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.575GHz, 1.603GHz | 1.559GHz ~ 1.563GHz, 1.559GHz ~ 1.591GHz, 1.593GHz ~ 1.61GHz | Ceramic Patch | 4 | - | -15dB | 5dBi, 5.5dBi, 5.5dBi, 5.5dBi | - | - | Solder | - | - | - | Adhesive, Through Hole | 0.264" (6.70mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
1000423RF ANT 2.4GHZ/4.9GHZ STAMPED MET |
2,375 | - |
|
Datasheet | Prestta™ | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz | 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz | Stamped Metal | 4 | 3, 2.5, 2.5, 3 | - | -0.6dBi, 2.5dBi, 4.5dBi, 3.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.280" (7.10mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
X9001248-4GMSMB1000RANTENNA,LTE MAGNETIC 1000 |
2,318 | - |
|
Datasheet | - | Box | Active | 802.15.4, Cellular | Wide Band | 700MHz, 800MHz, 900MHz, 1.8GHz, 2.1GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 6 | - | -5.2dB, -5.8dB, -6dB | -0.5dBi, -0.2dBi, 1.8dBi, 1.9dBi | - | - | SMA Male | IP65 | - | - | Magnetic | 4.409" (112.00mm) | LTE, LoRa, Sigfox |
|
1004627ANTENNA ASSY, GPS 25X25X5 |
3,523 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | 2, 3 | - | 3.7dBi, 3dBi | - | Cable - 72mm | I-PEX MHF3 | - | - | - | Adhesive | 0.209" (5.30mm) | GLONASS, GPS |
|
1004112-B002ANTENNA ASSY, EXTERNAL LTE TNC |
1,205 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Cellular | Wide Band | 825MHz, 1.955GHz, 2.6GHz | 690MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz | Whip, Tilt | 3 | 2.5 | - | 1.18dBi, 4.5dBi, 4dBi | 5 W | - | TNC Male | - | - | - | Connector Mount | 8.941" (227.10mm) | LTE, LoRa, LPWAN, Sigfox |
|

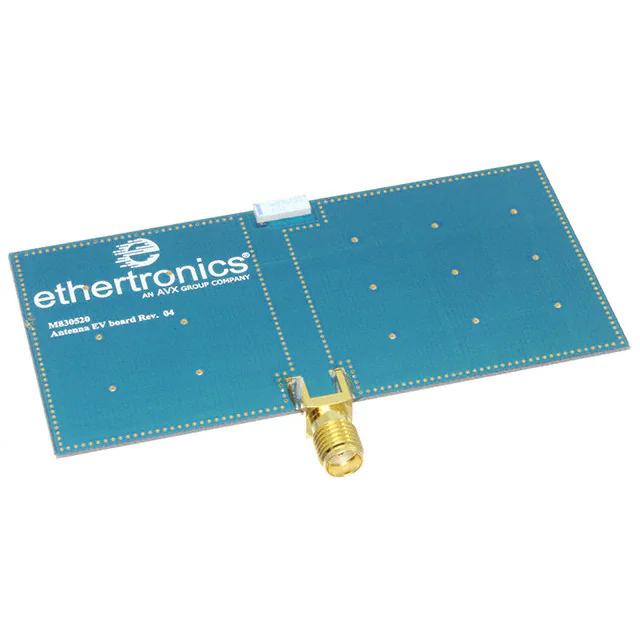

M830520-01RF ANT 2.4GHZ/5.35GHZ CHIP SLD |
3,503 | - |
|
Datasheet | Savvi™ | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.35GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Chip | 2 | 2.6 | - | 3.2dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1002686RF ANT 5GHZ STAMPED MET SLDR SMD |
1,919 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | WiFi | SHF (f > 4GHz) | 5GHz | 4.9GHz ~ 5.9GHz | Stamped Metal | 2 | 2 | - | 6dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | Wi-Fi, WLAN |
|
1003893FT-AA10L0025ANTENNA ASSY, WLANB FT AA10 0025 |
3,060 | - |
|
Datasheet | - | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | 1.5 | - | 3.3dBi | 500 mW | Cable - 25mm | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | WLAN |
|
1004796ANTENNA PCB, LTE MRR |
4,202 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Cellular | Wide Band | 600MHz, 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz | 600MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz | Chip | 9 | 2.5, 3 | - | 1.5dBi, 1.6dBi, 3.1dBi, 1.7dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | LTE, LoRa, LPWAN, Sigfox |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
