RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X1005249-LGA2SA10A2ANTENNA GPS-GLONASS/LTE |
3,149 | - |
|
Datasheet | - | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Module | 5 | 2, 2.3, 3.8, 5 | - | 3.7dBi, 3dBi, 3.5dBi, 3.6dBi, 3.6dBi | - | Cable - 1m, LNA | SMA Male (2) | IPX5 | - | - | Adhesive | 0.787" (20.00mm) | GLONASS, GPS, LTE |
|
W3P42X8F04-H050D3B0TWI-FI DUAL BAND/BLUETOOTH PCB AN |
1,402 | - |
|
Datasheet | - | Bag | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
X9001248-4GMRMB1000L4G/CELLULAR MAGNET MOUNT EXTERNA |
1,810 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | - | -6dBi, -5.2dBi | 1.8dBi, 1.9dBi | - | Cable - 1m | RP-SMA Male | IP65 | - | - | Magnetic | 4.331" (110.00mm) | 2G, 3G, 4G, LoRa, LTE Cat 1, LTE-M, M2M, NB-IoT, SigFox |
|
|
1002232-01EVB - EVALUATION BOARD FOR 10022 |
4,000 | - |
|
Datasheet | - | Bag | Active | Bluetooth, General ISM | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 866.5MHz, 915MHz, 2.45GHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | Flat Bar | 3 | 2 | - | 0.51dBi, 0.21dBi, 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | Bluetooth, ISM, LoRa, M2M, Sigfox, WLAN |
|
|
9002133-02EVB - EVALUATION BOARD FOR 90021 |
4,945 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Chip | 2 | 2.32, 2.34 | - | 0.5dBi, 1.2dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | IoT, ISM, LoRa, M2M |
|
M830110-10KRF ANT 1.561GHZ/1.575GHZ CHIP |
3,557 | - |
|
Datasheet | Savvi™ | Tape & Reel (TR) | Not For New Designs | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Chip | 1 | 1.7 | - | 1.78dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Beidou, GLONASS, GPS |
|
M830510-10KRF ANT 2.4GHZ/5.4GHZ CHIP SLD |
2,702 | - |
|
Datasheet | Savvi™ | Tape & Reel (TR) | Not For New Designs | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Chip | 2 | 2.6, 3 | - | 1.1dBi, 3.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.052" (1.33mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

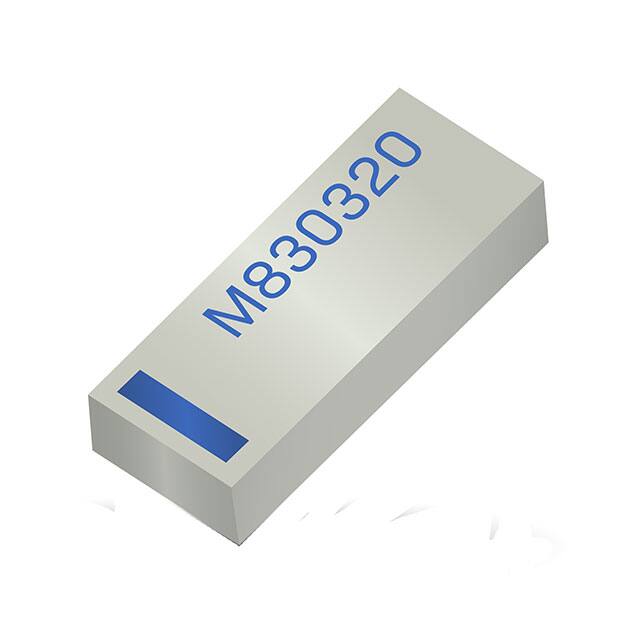

M830320-4.5KRF ANT 2.4GHZ CHIP SOLDER SMD |
1,650 | - |
|
Datasheet | Savvi™ | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.39dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
M830510RF ANT 2.4GHZ/5.4GHZ CHIP SLD |
1,019 | - |
|
Datasheet | Savvi™ | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Chip | 2 | 2.6, 3 | - | 1.1dBi, 3.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.052" (1.33mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

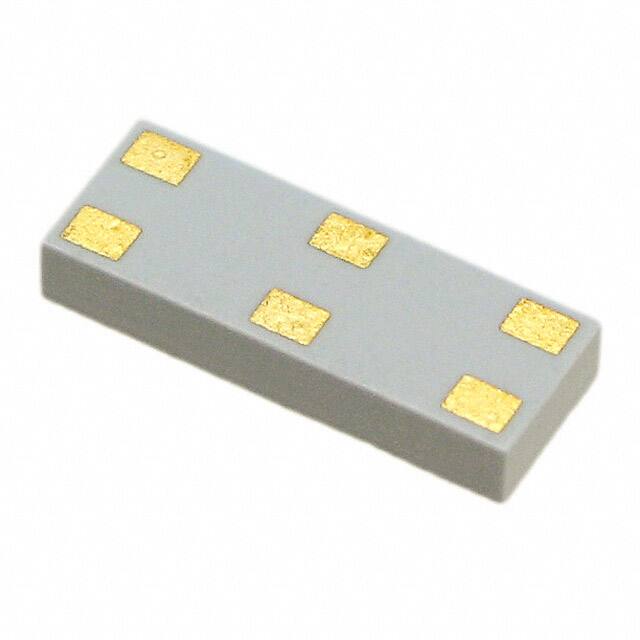

M830110RF ANT 1.561GHZ/1.575GHZ CHIP |
2,986 | - |
|
Datasheet | Savvi™ | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Chip | 1 | 1.7 | - | 1.78dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Beidou, GLONASS, GPS |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
