RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE9857B-15WR-102 Waveguide Standard Gain H |
4,396 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 5.080" (129.03mm) | General Purpose |
|
|
PEWAN1029WR-5 Waveguide Standard Gain Hor |
3,718 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 180GHz | 140GHz ~ 220GHz | Horn | 1 | 1.15 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
|
PEWAN1031WR-5 Waveguide Standard Gain Hor |
3,784 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 180GHz | 140GHz ~ 220GHz | Horn | 1 | 1.15 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 1.250" (31.75mm) | General Purpose |
|
|
PEWAN1067WR-5 Waveguide Conical Gain Horn |
2,766 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 180GHz | 140GHz ~ 220GHz | Horn | 1 | 1.15 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|

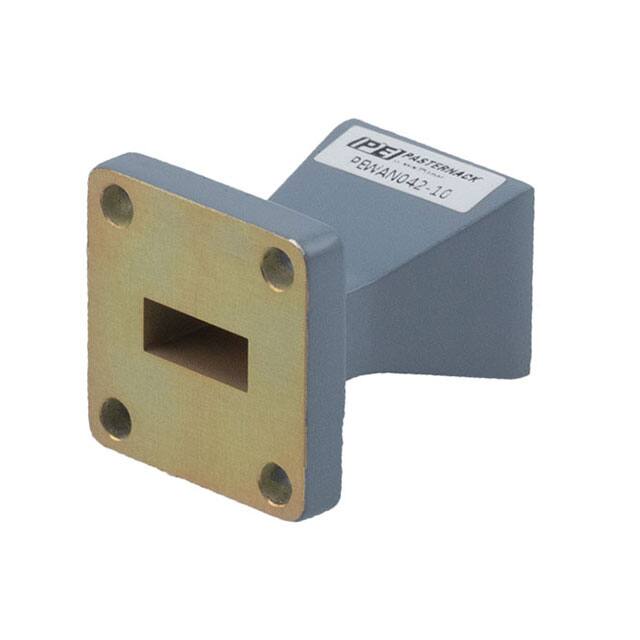

PEWAN042-10WR42 GAIN HORN 18-26.5GHZ 10DBI |
1,568 | - |
|
Datasheet | - | Bulk | Active | Waveguide | K Band (18GHz ~ 27GHz) | 22.6GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PEWAN1030WR-5 Waveguide Standard Gain Hor |
1,479 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 180GHz | 140GHz ~ 220GHz | Horn | 1 | 1.15 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
|
PE9854B-10WR-62 Waveguide Standard Gain Ho |
3,878 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.610" (40.89mm) | General Purpose |
|
|
PEANED10112 Folded Dipole antenna, 406 MHz |
1,220 | - |
|
Datasheet | - | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz) | 459MHz | 406MHz ~ 512MHz | Module | 1 | 1.8 | - | 7.6dBi | 100 W | - | N Type Female | - | - | - | - | 59.055" (150.00cm) | General Purpose |
|
|
PEANED10072 Folded Dipole antenna, 380 MHz |
4,478 | - |
|
Datasheet | - | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 425MHz | 380MHz ~ 470MHz | Module | 1 | 1.5 | - | 7.6dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 62.992" (1600.00mm) | General Purpose |
|
|
PEANED10062 Folded Dipole antenna, 380 MHz |
1,727 | - |
|
Datasheet | - | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz) | 425MHz | 380MHz ~ 470MHz | Module | 1 | 1.5 | - | 7dBi | 100 W | - | N Type Female | - | - | - | - | 62.992" (1600.00mm) | General Purpose |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
