RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN1128WR-15 Waveguide Probe Antenna Op |
2,340 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 62.5GHz | 50GHz ~ 75GHz | Horn | 1 | - | - | 6.5dBi | - | - | - | - | - | - | Waveguide Mount | 1.500" (38.10mm) | General Purpose |
|
PEWAN042-15WR42 GAIN HORN 18-26.5GHZ 15DBI |
3,717 | - |
|
Datasheet | - | Bulk | Active | Waveguide | K Band (18GHz ~ 27GHz) | 22.6GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9859B-15WR-137 Waveguide Standard Gain H |
3,161 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 6.890" (175.00mm) | General Purpose |
|
|
PE9858B-10WR-112 Waveguide Standard Gain H |
3,464 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 2.550" (64.77mm) | General Purpose |
|
|
PE51123Portable Antenna Operates From 2 |
4,591 | - |
|
Datasheet | - | Retail Package | Active | - | Wide Band | 2.35GHz | 2.2GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 6dBi | 50 W | - | N Type Male | - | - | - | Connector Mount | 18.200" (462.28mm) | - |
|
|
PEANOM1142S-band Omni Antenna 2 GHz to 2.5 |
4,376 | - |
|
Datasheet | - | Retail Package | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.25GHz | 2GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 5dBi | 20 W | - | - | IP65 | - | - | Connector Mount | 13.470" (342.13mm) | General Purpose |
|

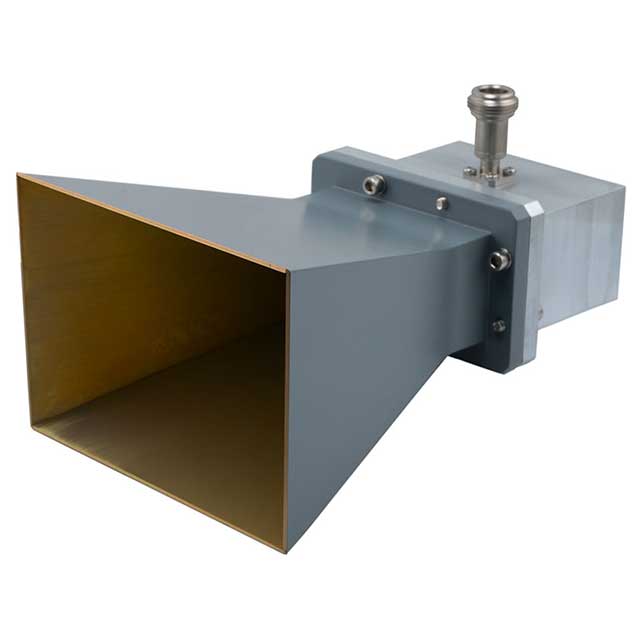

PEWAN229-10NFWR229 GAIN HRN 3.3-4.9GHZ 10DBI |
4,705 | - |
|
Datasheet | - | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | N Type Female | - | - | - | Waveguide Flange Mount | 6.314" (160.38mm) | - |
|
|
PEWAN051-10SFWR51 GAIN HRN 15-22GHZ 10DBI |
1,859 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.25 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.310" (33.27mm) | General Purpose |
|
|
PEWAN1124WR-6 Waveguide Probe Antenna Ope |
3,170 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 140GHz | 110GHz ~ 170GHz | Horn | 1 | 2 | - | 6.5dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|
PEWAN090-15WR90 GAIN HORN 8.2-12.4GHZ 15DBI |
2,775 | - |
|
Datasheet | - | Bulk | Active | Waveguide | X Band (8GHz ~ 12GHz) | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
