RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN028-20WR28 GAIN HORN 26.5-40GHZ 20DBI |
1,913 | - |
|
Datasheet | - | Bulk | Active | Waveguide | Ka Band (27GHz ~ 40GHz) | 33.3GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|

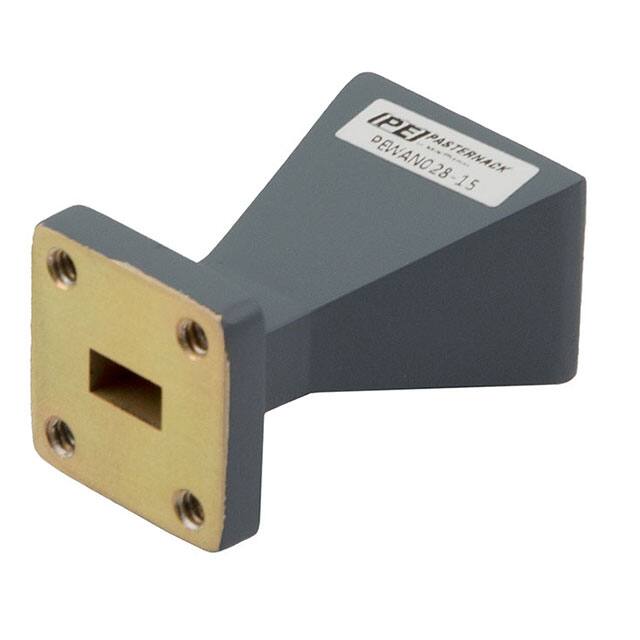

PEWAN028-15WR28 GAIN HORN 26.5-40GHZ 15DBI |
2,941 | - |
|
Datasheet | - | Bulk | Active | Waveguide | Ka Band (27GHz ~ 40GHz) | 33.3GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PE9860B-15WR-159 Waveguide Standard Gain H |
4,404 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 9.468" (240.49mm) | General Purpose |
|
|
PEANED10032 Folded Dipole antenna, 138 MHz |
1,621 | - |
|
Datasheet | - | Retail Package | Active | General ISM | VHF (f < 300MHz) | 156MHz | 138MHz ~ 174MHz | Module | 1 | 1.8 | - | 7.6dBi | 100 W | - | N Type Female | - | - | - | - | 114.173" (290.00cm) | General Purpose |
|
|
PEANED10022 Folded Dipole antenna,138 MHz |
2,301 | - |
|
Datasheet | - | Retail Package | Active | General ISM | VHF (f < 300MHz) | 156MHz | 138MHz ~ 174MHz | Module | 1 | 1.8 | - | 7dBi | 100 W | - | N Type Female | - | - | - | - | 114.173" (290.00cm) | General Purpose |
|
|
PE9859B-10WR-137 Waveguide Standard Gain H |
2,006 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 3.530" (89.66mm) | General Purpose |
|
|
PE9851B-10WR-34 Waveguide Standard Gain Ho |
1,892 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.050" (26.67mm) | General Purpose |
|
|
PEWAN102-10ELNFWR102 GAIN HRN 7-11GHZ 10DBI |
1,806 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.25 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.685" (42.80mm) | General Purpose |
|
|
PEWAN112-10ELNFWR112 GAIN HRN 7.05-10GHZ 10DBI |
3,379 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.369" (34.77mm) | General Purpose |
|
|
PE9852B-10WR-42 Waveguide Standard Gain Ho |
1,257 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 22.25GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.250" (31.75mm) | General Purpose |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
