RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PRO-EX-332RF ANT 2.4GHZ WHIP TILT SMA MALE |
4,052 | - |
|
Datasheet | External Antenna | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.48GHz | Whip, Tilt | 1 | 2 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.268" (83.00mm) | - |
|
APAMSTJ-138RF ANT 440MHZ/850MHZ WHIP STR |
2,859 | - |
|
Datasheet | APAMS | Bulk | Active | Bluetooth, Cellular, WiFi | Wide Band | 440MHz, 850MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | 380MHz ~ 2.4GHz | Whip, Straight | 8 | 3 | - | 2.2dBi | - | Cable - 2.5m | SMA Male | - | - | - | Adhesive | 0.262" (6.65mm) | AMPS, Bluetooth, DCS, GSM, PCS, Tetra, UMTS, Wi-Fi |
|
APAES923R3640C16-TRF ANT 923MHZ CER PATCH PIN ADH |
1,250 | - |
|
Datasheet | APAE | Tray | Active | - | UHF (300MHz ~ 1GHz) | 923MHz | 918MHz ~ 927MHz | Ceramic Patch | 1 | 1.5 | -10dB | 1.5dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | - |
|
AEARBD048014-SG3RF ANT 1561/1575/1602MHZ DOME |
2,208 | - |
|
Datasheet | AEAR | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.610GHz | Puck | 1 | 2 | - | 5.78dBi, 4.27dBi, 5.65dBi | - | Cable - 5m, LNA | SMA | - | - | - | Magnetic | 0.551" (14.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
AECW0801C03S-3000SANTENNA GNSS+LTE+WIFI |
4,215 | - |
|
Datasheet | AECW | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.5815GHz, 2.2GHz, 2.44GHz, 5.3625GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz | Module | 5 | 2, 2.5, 3 | - | 2dBi, 2dBic, 2dBi, 2dBi, 2dBi | - | Cable - 3m, LNA | SMA Male (3) | IP67 | - | - | Screw Mount | 0.642" (16.30mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
AECR1808A12S-3000SANTENNA GNSS+5G MIMO+WIFI MIMO |
2,454 | - |
|
Datasheet | AECR | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.5835GHz, 2.2GHz, 2.44GHz, 3.35GHz, 5.4125GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 2.9GHz ~ 3.8GHz, 4.9GHz ~ 5.925GHz | Dome | 6 | 2, 2.5, 3 | - | 2dBi, 5dBi, 2dBi, 2dBi, 2dBi, 2dBi | - | Cable - 3m, LNA | SMA Male (5) | IP67 | - | - | Screw Mount | 3.346" (85.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
AEACBA081016-C2LGLTE/GPS ADHESIVE MOUNT COMBO ANT |
3,619 | - |
|
Datasheet | AEAC | Bulk | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 2.2GHz | 698MHz ~ 960MHz, 1.572GHz ~ 1.578GHz, 1.71GHz ~ 2.69GHz | Dome | 3 | 2, 3 | - | 2.5dBi, 2dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Adhesive | 0.638" (16.20mm) | 2G, 3G, 4G, GSM, GPS, GNSS, LTE |
|

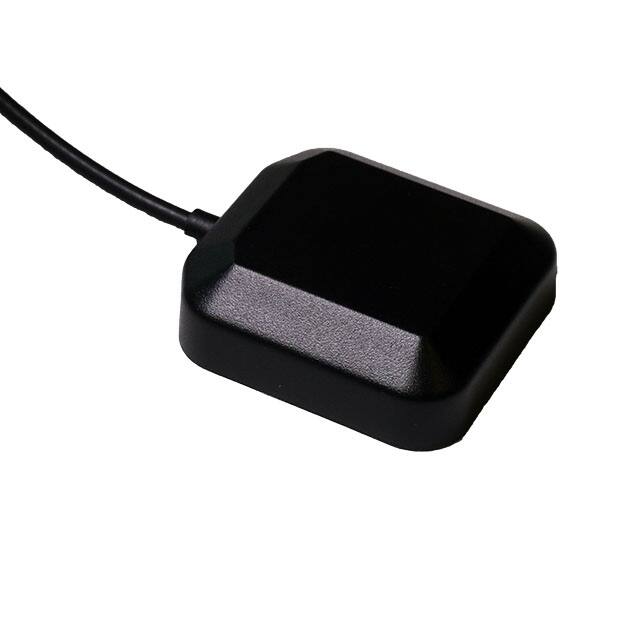

AEARBD040038-S1621RF ANT 1.6GHZ MODULE SMA ML MAG |
3,791 | - |
|
Datasheet | AEAR | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.626GHz | Module | 1 | 1.5 | - | 0.46dBi | - | - | SMA | - | - | - | Magnetic | 0.484" (12.30mm) | - |
|
APAMBJ-145RF ANT 2.4GHZ/5.8GHZ DOME PNL MT |
3,256 | - |
|
Datasheet | APAMBJ | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 5.1GHz ~ 5.9GHz | Dome | 2 | 2 | - | 5dBi, 2dBi | - | Cable - 2.5m | SMA Male | - | - | - | Panel Mount | 1.437" (36.50mm) | Bluetooth, Wi-Fi |
|
AMCA31-2R800G-S1F-TRF ANT 2.8GHZ CHIP SOLDER SMD |
901 | - |
|
Datasheet | AMCA | Tape & Reel (TR) | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.8GHz | 2.725GHz ~ 2.875GHz | Chip | 1 | 2 | - | 0.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | WiMax™, WLAN |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
