RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEACBD050018-SG3RF ANT MULTIBAND MOD SMA ML MAG |
3,552 | - |
|
Datasheet | AEAC | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Module | 3 | 1.5 | - | 5dBi | - | LNA | SMA | IP67 | - | - | Magnetic | 0.708" (18.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
AEACBK050048-MW2RF ANT 2X DUALBAND WIFI MIMO SMA |
1,351 | - |
|
Datasheet | AEAC | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz | Dome | 2 | 2.5 | - | 2dBi | - | - | SMA Male (2) | - | - | - | Panel Mount | 1.889" (48.00mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
AEACBD059015-C3GSWRF ANT GPS/GSM/WIFI COMB |
1,949 | - |
|
Datasheet | AEAC | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 892MHz, 1.575GHz, 1.94GHz, 2.442GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.484GHz | Dome | 4 | 1.5, 2 | - | 2dBi, 3dBi | - | - | SMA Male | IP65, IP67 | - | - | Adhesive, Magnetic | 0.591" (15.00mm) | 2G, 3G, GPS, GSM, Wi-Fi |
|

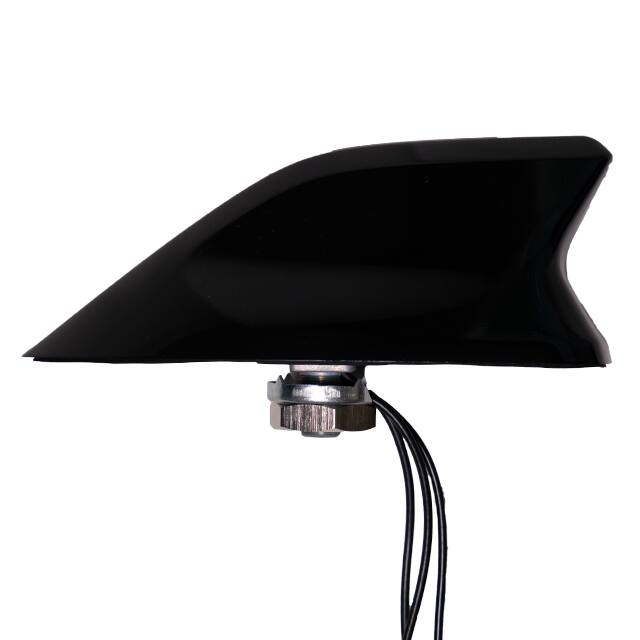

AECS1806C03ZS-3000SRF ANT 3IN1 LTE/GNSS/WIFI EXT SH |
1,111 | - |
|
Datasheet | AECS | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.5815GHz, 2.44175GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 2.4GHz ~ 2.4835GHz | Module | 3 | 1.5, 2, 3 | - | 3.5dBi, 2dBic, 2dBi | - | Cable - 3m, LNA | SMA Male (3) | IP67 | - | - | Panel | 2.720" (69.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|

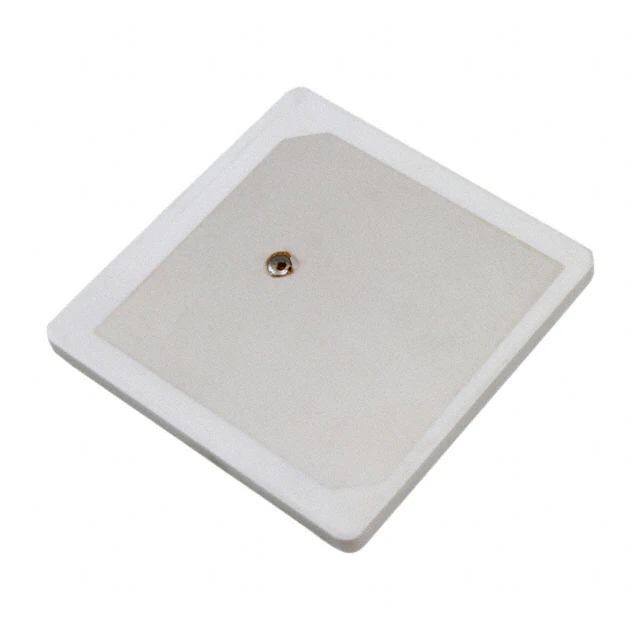

APAES868R8060C16-TRF ANT 868MHZ CER PATCH PIN ADH |
2,994 | - |
|
Datasheet | APAE | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 854MHz ~ 882MHz | Ceramic Patch | 1 | 1.3 | -10dB | 5dBic | - | - | Pin | - | - | - | Adhesive | 0.236" (6.00mm) | - |
|

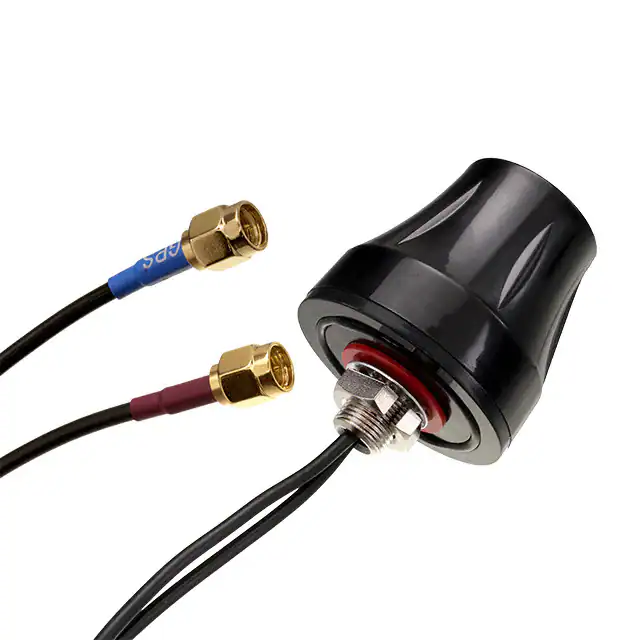

AEACBK050048-C2LGLTE/GPS SCREW MNT COMBO ANT |
3,374 | - |
|
Datasheet | AEAC | Bulk | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 2.2GHz | 698MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.69GHz | Dome | 3 | 1.5, 3 | - | 2dBi, 2dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Screw Mount | 1.890" (48.00mm) | 2G, 3G, 4G, GSM, GPS, GNSS, LTE |
|
AEAGMK148060-S1575RF ANT MODULE SMA CONN SCREW |
1,933 | - |
|
Datasheet | AEAG | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.232GHz, 1.587GHz | 1.164GHz ~ 1.3GHz, 1.559GHz ~ 1.615GHz | Module | 2 | 2 | - | 38dBi | - | LNA | TNC-K | - | - | - | Screw | 2.362" (60.00mm) | Beidou, Galileo, GLONASS, GPS |
|
APAGM2704A-C2GRF ANT GNSS/GPS/GLONA ACT PATCH |
4,879 | - |
|
Datasheet | APAG | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.601GHz | 1.574GHz ~ 1.576GHz, 1.6GHz ~ 1.602GHz | Ceramic Patch | 2 | 1.02, 1.03 | -35.1dB, -37.9dB | 4.5dBi | - | Cable - 30mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GNSS, GPS |
|
PRO-IS-583INSIDE GSM/DCS MHF4 100MM ADH |
3,492 | - |
|
Datasheet | Embedded Antenna | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 914MHz, 1.85GHz | 868MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 2 | 4 | - | 3dBi | - | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
PRO-IS-579INSIDE WLAN SQUARE 100MM MHF4 |
2,605 | - |
|
Datasheet | Embedded Antenna | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5125GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 3 | - | 3dBi | - | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, ISM, WLAN, Zigbee™ |
