RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC140.07.0100APC140 2.4GHZ CIRCULAR POLARIZED |
128 | - |
|
Datasheet | - | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | -10dB | 1.67dBi, 1.55dBi, 1.54dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.038" (0.97mm) | Bluetooth, ISM, Wi-Fi |
|
WSA.2458.A.101151RF ANT 2.4/5.8GHZ FLT BAR RP-SMA |
664 | - |
|
Datasheet | Phoenix | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Flat Bar | 2 | 2 | -10dB | 4.3dBi | 2 W | - | RP-SMA Male | IP65 | - | - | Adhesive | 0.303" (7.70mm) | Wi-Fi, WLAN |
|
ALA.01.07.0095ARF ANT 1.575GHZ PCB TRACE IPEX |
232 | - |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.54GHz ~ 1.61GHz | PCB Trace | 1 | 2 | -10dB | 3.1dBi | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Chassis Mount | 0.020" (0.50mm) | GPS |
|
TD.95.6H31G868/915MHZ DIPOLE ANTENNA N-TYPE |
104 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Blade | 2 | - | - | 1.33dBi, 1.54dBi | 10 W | - | N Type Male | IP67 | - | - | Connector Mount | 8.976" (228.00mm) | ISM, LoRa, Sigfox |
|
ISPC.91A.09.0092ERF ANT 915MHZ CER PATCH MMCX ML |
202 | - |
|
Datasheet | - | Box | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Ceramic Patch | 1 | - | -9.7dB | 5.21dBi | 5 W | - | MMCX Male | - | - | - | - | 0.256" (6.50mm) | - |
|

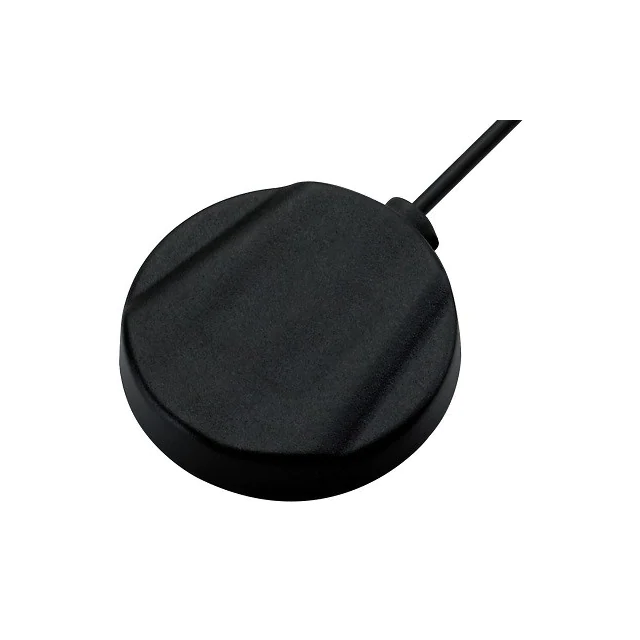

WA.500W.301151RF ANT 2.4GHZ/5.8GHZ MODULE ADH |
108 | - |
|
Datasheet | Stingray | Bag | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Module | 2 | 1.92 | - | 5.382dBi, 4.308dBi | - | Cable - 3m | RP-SMA Male | IP65 | - | - | Adhesive | 0.425" (10.80mm) | Wi-Fi, Zigbee™ |
|
|
TD.66.AH31BLADE WIDEBAND 600-6000MHZ 5G/4G |
108 | - |
|
Datasheet | - | Bulk | Active | Cellular, WiFi | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Whip, Straight | 8 | - | - | 1.8dBi, 1.6dBi, 2.6dBi, 3.9dBi, 2.5dBi, 3.9dBi, 4.4dBi, 5.4dBi | 10 W | - | N Type Male | IP67 | - | - | Connector Mount | 9.016" (229.00mm) | 4G, 5G, Cat-M, HSPA, HSPA+, LTE, NB-IoT, NR, WCDMA, Wi-Fi |
|
AGGP.35F.07.0060ARF ANT 1.575GHZ CER PATCH MHF1 |
282 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.61GHz | Ceramic Patch | 1 | 2 | - | 1dBic, 0.5dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.146" (3.70mm) | GLONASS, GNSS, GPS |
|
AGGBP.SLS.35A.07.0060A2 IN 1 PERMANENT MOUNT GPS (1M R |
563 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | - | 2.79dBi, 2.23dBi, 1.32dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.339" (8.60mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
MA322.A.001COMET 2-IN-1 2*5G/4G MIMO ADHES |
242 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 3.55GHz, 3.75GHz, 4.7GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 10 | - | - | 1.1dBi, 2dBi, 2.2dBi, -0.4dBi, 4.6dBi, 4.2dBi, 1.8dBi, 2.4dBi, 4dBi, 4.6dBi | 2 W | Cable - 2m | SMA Male | IP67 | - | - | Adhesive, Magnetic | 0.709" (18.00mm) | 4G, 5G, HSPA, HSPA+, LTE, NR, WCDMA |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
