RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

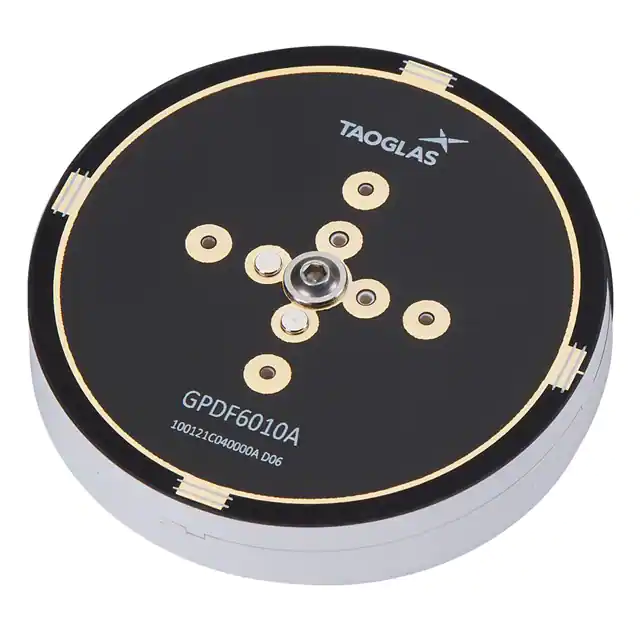

GPDF6010.ACIRCULAR TRIPLE BAND DUAL FEED S |
2,789 | - |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.17645GHz, 1.2276GHz, 1.278GHz, 1.525GHz, 1.561GHz, 1.57542GHz, 1.602GHz | - | Ceramic Patch | 7 | 1.5 | - | -1.5dBic, 1.8dBic, -1.5dBic, 2.6dBic, 4.2dBic, 4dBic, 2.7dBic | - | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
MAT.176A4-IN-1 5G MULTI-ANTENNA BOARD (6 |
3,253 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 3.4GHz, 3.925GHz, 5.537GHz | 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.2GHz ~ 3.5GHz, 3.3GHz ~ 4.65GHz, 5.15GHz ~ 5.925GHz | PCB Trace | 7 | 3 | - | 6.37dBi, 6.3dBi, 5.89dBi, 5.29dBi, 3.59dBi, 5.79dBi, 6.34dBi | - | Cable - 100mm | I-PEX MHF4L | - | - | - | Surface Mount | 0.157" (4.00mm) | 5G, HSPA, HSPA+, LTE, WCDMA |
|
MA990.A.0019IN1 COMBO ANTENNA |
3,861 | - |
|
Datasheet | - | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 788.5MHz, 1.223GHz, 1.2445GHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.5755GHz, 1.6015GHz, 1.955GHz, 2.54GHz, 4.15GHz, 5.5375GHz, 6.525GHz | 617MHz ~ 960MHz, 1.207GHz ~ 1.239GHz, 1.241GHz ~ 1.248GHz, 1.427GHz ~ 1.518GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.564GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz, 1.71GHz ~ 2.2GHz, 2.39GHz ~ 2.69GHz, | Module | 13 | 3 | -10dB | 2.1dBi, 4.2dBi, 3.2dBi, 2.2dBi, 0.9dBi, 3.7dBi, 3.7dBi, 0.8dBi, 4dBi, 4.5dBi, 5.4dBi, 6.6dBi | - | Cable - 1m, LNA, Filter | SMA Male (2) | IP67 | - | - | Adhesive | 0.807" (20.50mm) | 3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, LTE, Wi-Fi |
|
|
MA351.A.BI.0013IN1 MAGNET MNT ANT 3M SMA(M) |
2,397 | - |
|
Datasheet | Steedan | Bag | Active | Cellular, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 3.75GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.925GHz | Module | 8 | - | - | 1.1dBi, 3.5dBi, 5dBi, 5.1dBi, 6.6dBi, 6.9dBi, 5.9dBi, 3.3dBi | 10 W | Cable - 3m | SMA Male (2) | IP65 | - | - | Magnetic | 1.881" (47.78mm) | 3G, 4G, 5G, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|
|
MA354.A.BICG.0014 IN1 MAGNET MNT ANT 3M SMA(M) |
2,910 | - |
|
Datasheet | Steedan | Box | Active | Cellular, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz, 5.5375GHz, 6.1375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | Module | 11 | - | - | 1.6dBi, 3.5dBi, 5dBi, 5.1dBi, 6.6dBi, 4.2dBi, 6.9dBi, 5.9dBi, 3.3dBi, 7.7dBi, 3.9dBi | 10 W | Cable - 3m | RP-SMA Male, SMA Male | IP65 | - | - | Magnetic | 1.881" (47.78mm) | 3G, 4G, 5G, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|
MA752.B.ABICG.001PANTHEON 3000MM GNSS-RG174 SMA(M |
1,664 | - |
|
Datasheet | Pantheon | Box | Active | Cellular, Navigation, WiFi | Wide Band | 460MHz, 752MHz, 859MHz, 920MHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.495GHz, 5.375GHz | 450MHz ~ 470MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Dome | 12 | 2, 3 | - | -1.3dBi, 0.43dBi, 0.7dBi, 1.3dBi, 1.54dBi, 1.7dBi, 1.8dBi, 1.85dBi, 1.89dBi, 1.93dBi, 5dBi, 5.53dBi | - | Cable - 3m | RP-SMA Male | - | - | - | Panel Mount | 3.244" (82.40mm) | 2G, 3G, 4G, GLONASS, GPS, LTE, Wi-Fi |
|
|
GWLA.05GPS/GALILEO & 2.4GHZ MULTI-BAND |
947 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Bluetooth, Navigation, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 2 | - | -5dB, -10dB | 0.28dBi, -2.17dBi, -0.82dBi, 0.24dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Bluetooth, GPS, Wi-Fi |
|
NCS.5820NB-IOT FR4 PCB ANTENNA FOR BANDS |
1,350 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 826.5MHz, 859MHz, 920MHz | 791MHz ~ 862MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz | Chip | 3 | - | -6dB, -7dB | 0.1dBi, 0.1dBi, -0.8dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | - |
|
PCS.50AACTIVE CELLULAR AND GNSS ANTENNA |
749 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular, Navigation, WiFi | Wide Band | 722MHz, 773MHz, 840MHz, 920MHz, 1.5845GHz, 2.2GHz | 698MHz ~ 746MHz, 746MHz ~ 800MHz, 800MHz ~ 880MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz | Chip | 6 | - | - | -4.8dBi, -2.5dBi, -3dBi, -1.1dBi, 0.8dBi, 3.2dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | 3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, LTE, Wi-Fi |
|
PC27.09.0100ARF ANT 800MHZ/900MHZ FLAT PATCH |
165 | - |
|
Datasheet | TheStripe™ | Bag | Not For New Designs | Cellular | Wide Band | 800MHz, 900MHz, 1.8GHz, 1.9GHz | - | Flat Patch | 4 | 3.59, 2.02. 2.21, 2.3 | - | - | - | - | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
