RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TI.15.3113RF ANT 433MHZ WHIP TILT SMA MALE |
104 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | 433MHz ~ 434MHz | Whip, Tilt | 1 | 1.5 | - | -4.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | - |
|
FXUB63.24.0150BFLEX 698MHZ TO 3GHZ WITH 150MM 1 |
360 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Adhesive | - | - |
|

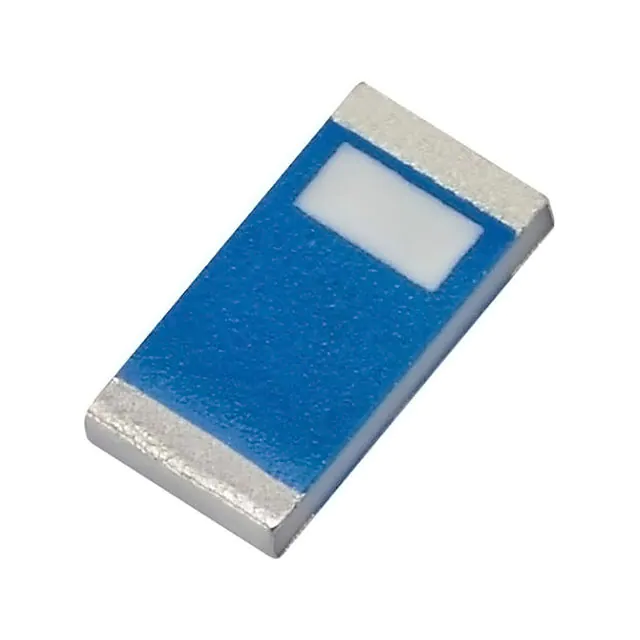

WLA.10RF ANT 1.575GHZ/2.4GHZ CHIP SLD |
1,780 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Navigation, WiFi | Wide Band | 1.575GHz, 2.4GHz, 5.5GHz | 1.575GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Chip | 3 | - | -10dB | 1.8dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™ |
|
TG.30.8113WRF ANT 750MHZ/892MHZ WHIP TILT |
669 | - |
|
Datasheet | Apex | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.6GHz | 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.8GHz | Whip, Tilt | 5 | - | - | 1.1dBi, 0.3dBi, 1.1dBi, 2.7dBi, 2.7dBi | 10 W | - | SMA Male | IP67 | - | - | Connector Mount | 7.319" (185.90mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|
GSA.8821.B.301111RF ANT 850MHZ/900MHZ FLAT BAR |
1,038 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Bar | 5 | - | -7.8dB, -8.5dB, -9.2dB, -13.6dB, -16dB | -5.1dBi, -1.6dBi, -2.7dBi | 10 W | Cable - 3m | SMA Male | IP65 | - | - | Adhesive | 0.228" (5.80mm) | CDMA, DCS, GSM, PCS, UMTS, WCDMA |
|
AP.10E.07.0039BRF ANT 1.575GHZ CER PATCH CAB |
230 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2 | - | -10dBic | - | Cable - 39mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.244" (6.20mm) | GPS |
|
AP.35A.07.0054ARF ANT 1.575GHZ CER PATCH IPEX |
135 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 2.5dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Solder | 0.138" (3.50mm) | GPS |
|
ISPC.86A.09.0092ERF ANT 867MHZ CER PATCH MMCX ML |
135 | - |
|
Datasheet | - | Box | Active | - | UHF (300MHz ~ 1GHz) | 867MHz | 865MHz ~ 870MHz | Ceramic Patch | 1 | - | -6.7dB | 4.63dBi | 5 W | - | MMCX Male | - | - | - | - | 0.256" (6.50mm) | - |
|
TG.10R.A.0113RF ANT 750MHZ/892MHZ WHIP TILT |
106 | - |
|
Datasheet | Triton | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.4GHz | 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz | Whip, Tilt | 5 | - | - | -0.5dBi, -0.5dBi, -0.5dBi, 2dBi, 3dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 6.614" (168.00mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|
WM.43.A.305111CYCLOPS 433MHZ WALL MOUNT FLEXIB |
161 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | - | -10dB | 0.18dBi | 10 W | Cable - 3m | SMA Male | IP67 | - | - | Bracket Mount | 12.756" (324.00mm) | Wi-Fi |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
