RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CUSTOM_ANTENNACUSTOM ANTENNA |
99,999,840 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SGP.1575.25.4.D.02RF ANT 1.575GHZ CER PATCH SLD |
4,821 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.564GHz ~ 1.586GHz | Ceramic Patch | 1 | 1.5 | -10dB | 1dBic | - | - | Solder | - | - | - | Surface Mount | 0.212" (5.38mm) | GPS |
|

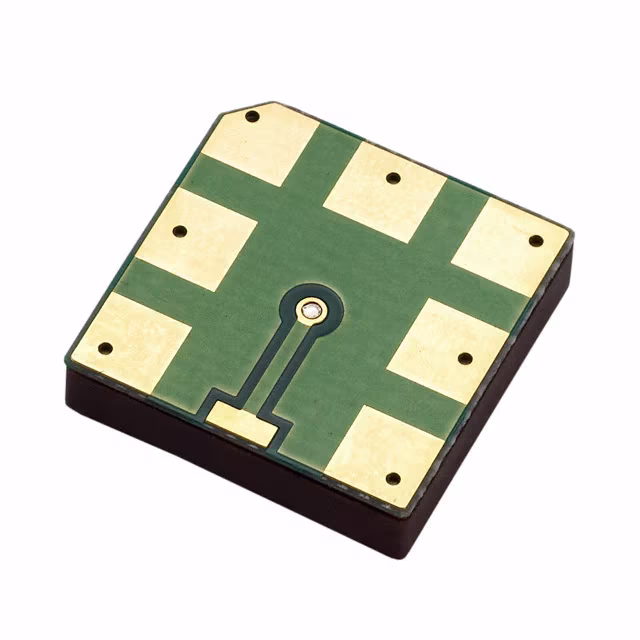

SGP.1575.18.4.C.02RF ANT 1.575GHZ CER PATCH SLD |
2,211 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.577GHz | Ceramic Patch | 1 | 1.5 | - | 1dBic | - | - | Solder | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
|

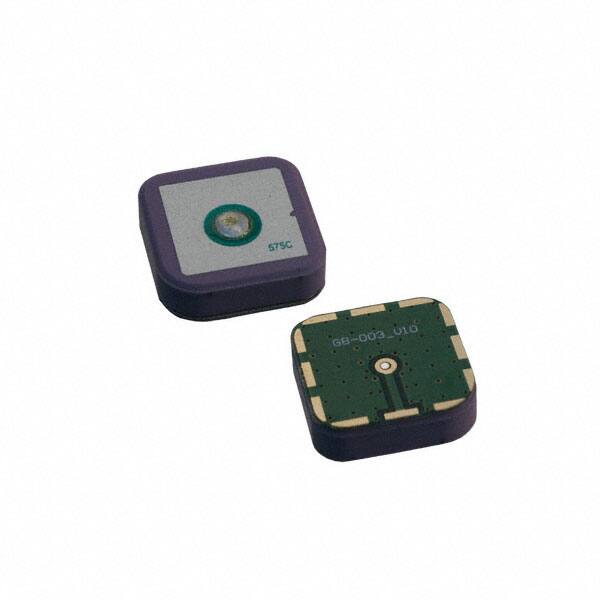

SGP.1575.15.4.A.02RF ANT 1.575GHZ CER PATCH SLD |
3,591 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | 1.5 | - | -1dBic | - | - | Solder | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
|
PA.700.JRF ANT 800MHZ/900MHZ CHIP SLD |
1,024 | - |
|
Datasheet | Viking | Tape & Reel (TR) | Active | Cellular | Wide Band | 800MHz, 900MHz, 1.5GHz, 1.7GHz, 2.1GHz, 2.5GHz | 698MHz ~ 800MHz, 824MHz ~ 960MHz, 1.41GHz ~ 1.52GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | Chip | 6 | 3.5 | -5dB, -14dB, -7dB, -7dB, -7.5dB | -3.6dBi, -0.5dBi, -1dBi, 0.5dBi, 2.7dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|

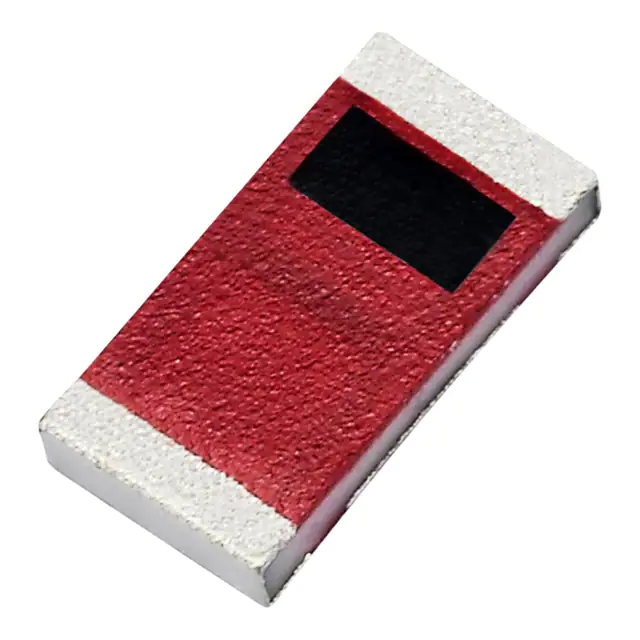

GWLA.01RF ANT 1.575GHZ/2.4GHZ CHIP SLD |
3,929 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Navigation, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.4GHz | 1.575GHz, 2.4GHz ~ 2.5GHz | Chip | 2 | - | -10dB | 1.5dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™ |
|
|
FXUB63.01.0150CWIDE BAND FLEX ANTENNA |
568 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

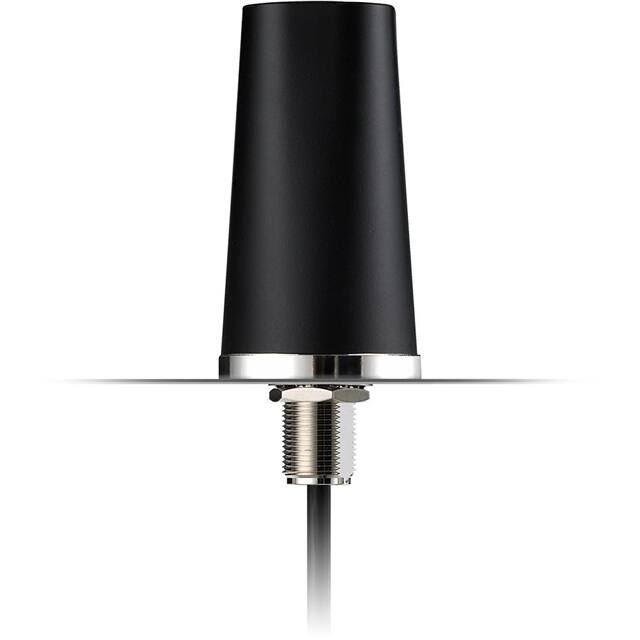

FNS.01.30WW111FIRSTNET BAND 14 TERMINAL SCREW |
3,913 | - |
|
Datasheet | - | Bulk | Obsolete | Cellular | Wide Band | 752MHz, 860MHz, 920MHz, 1.575GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.3325GHz, 2.495GHz, 3.5GHz | 698MHz ~ 806MHz, 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 2.305GHz ~ 2.36GHz, 3.4GHz ~ 3.6GHz | Dome | 10 | - | -8dB, -10dB, -10dB, -10dB, -10dB, -10dB, -10dB, -10dB | 2.42dBi, 2.42dBi, 2.25dBi, 0.88dBi, 2.5dBi, 2.32dBi, 2.23dBi, 3.02dBi | 100 W | Cable - 3m | SMA Male | IP67, IP69K | - | - | Panel Mount | 3.128" (79.45mm) | DCS, GPS, GSM, LTE, PCS, WCDMA |
|
|
CMA100.A.BIVW.002C-BAND ANTENNA |
3,220 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FMA253.A.LF.001FMA253.A.LF.001 ADHESIVE MOUNT 2 |
2,803 | - |
|
Datasheet | - | Bag | Obsolete | Navigation | Wide Band | 750.5MHz, 753MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.3325GHz | 698MHz ~ 803MHz, 703MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.597GHz ~ 1.576GHz, 1.574GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.305GHz ~ 2 | Module | 13 | 2, 3 | -6dB, -10dB | 0.72dBi, 1.29dBi, 2.13dBi, 1.7dBi, 3.03dBi, 4.22dBi, 3.79dBi, 3.37dBi, 3.05dBi | 5 W | Cable - 2m, LNA, Filter | SMA Male | IP67 | - | - | Surface Mount | 0.551" (14.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
