RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GVLB356.AGPS/GLONASS/BEIDOU SINGLE FEED S |
3,511 | - |
|
Datasheet | - | Tray | Active | Navigation | Wide Band | 1.227GHz, 1.561GHz, 1.575GHz, 1.603GHz | - | Ceramic Patch | 4 | 2, 3, 4 | - | 4.03dBi, 2.73dBi, 2.73dBi, 3.08dBi | - | - | Pin | - | - | - | Adhesive | 0.241" (6.12mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
AHP5354A.07.0100CGNSS L1/L5 ACTIVE PATCH 2 STAGE |
2,031 | - |
|
Datasheet | Inception | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.589GHz | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.569GHz ~ 1.61GHz | Flat Patch | 4 | 1, 2 | - | 2.07dBi, 2.61dBi, 2.61dBi, 2.06dBi | - | Cable - 100mm, LNA, Filter | I-PEX MHFI (U.FL) | - | - | - | PCB | 0.157" (4.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
AA.178.B.301111MAGMAX2 ACTIVE GPS L1/L5 MAG MOU |
2,943 | - |
|
Datasheet | Magma X | Bag | Active | Navigation | Wide Band | 1.176GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Module | 4 | 3, 4 | - | 0.26dBi, 0.04dBi, 0.04dBi, -0.5dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.673" (17.10mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
AA.175.B.301111MAGMAX2 GPS L1/L2 MAG MOUNT ANTE |
3,435 | - |
|
Datasheet | Magma X | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.562GHz, 1.575GHz, 1.603GHz | 1.217GHz ~ 1.238GHz, 1.559GHz ~ 1.586GHz, 1.596GHz ~ 1.61GHz | Module | 4 | 2, 3, 4 | - | 1.27dBi, 0.04dBi, 0.04dBi, 0.06dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.673" (17.10mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
MA2330.A.ACT.0023IN1 ADHESIVE MOUNT 300MM RG-174 |
2,276 | - |
|
Datasheet | - | Bag | Active | Navigation, WiFi | Wide Band | 98MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.45GHz, 5.415GHz | 88MHz ~ 108MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.574GHz ~ 1.607GHz, 2.4GHz ~ 2.5GHz, 5GHz ~ 5.83GHz | Module | 6 | - | -10dB, -27.8dB, -10dB | 3.3dBi, 4dBi, 3.7dBi | - | Cable - 300mm | SMB, Fakra | IP21 | - | - | Surface Mount | 0.585" (14.86mm) | Beidou, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
|
|
TS.15.0111GPS/GLONASS/GALILEO/BEIDOU PASSI |
1,447 | - |
|
Datasheet | Accura | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | - | 1.561GHz ~ 1.603GHz | Module | 8 | 2.1 | - | 1.19dBi, 2.29dBi, 1.4dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 2.362" (60.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|

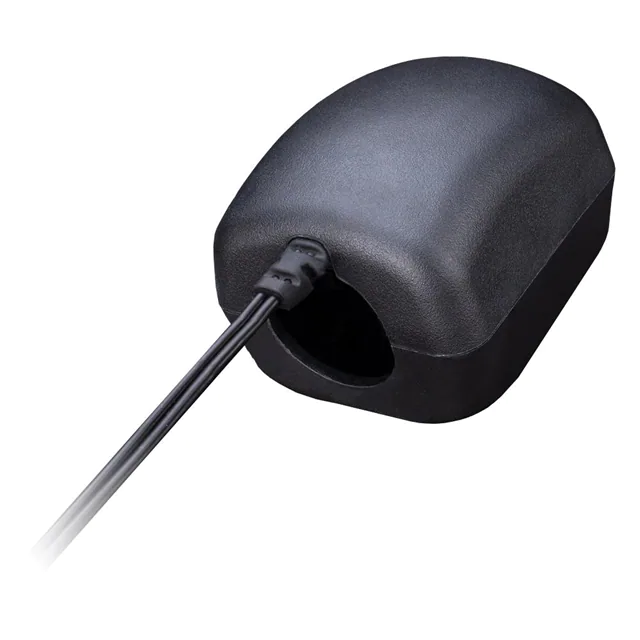

MA5022.A.AX.002MIRROR RAIL MOUNT 300MM RG-174 : |
4,244 | - |
|
Datasheet | - | Bag | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 2.3325GHz | 1.559GHz ~ 1.563GHz , 1.574GHz ~ 1.576GHz , 2.32GHz ~ 2.345GHz | Dome | 3 | - | -10dB, -10dB | 3dBi, 5.4dBi | - | Cable - 300mm | SMB, Fakra | IP67 | - | - | Panel Mount | 0.512" (13.00mm) | GPS |
|
|
A.85.A.101111BOLT - LOW PROFILE HIGH PRECISIO |
4,078 | - |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.575GHz, 1.587GHz | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.581GHz, 1.569GHz ~ 1.587GHz, 1.569GHz ~ 1.605GHz | Module | 5 | - | - | 3.7dBi, 0.52dBi, 2.72dBi, 2.72dBi, 2.83dBi | 5 W | Cable - 1m, LNA, Filter | SMA Male | IP65 | - | - | Screw Mount | 1.000" (25.40mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
FG.26.A2.4GHZ 7DBI PANEL ANTENNA 300MM |
1,255 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Panel | 1 | - | - | 7.05dBi | 2 W | Cable - 300mm | N Type Male | IP65 | - | - | Bracket Mount | 1.850" (47.00mm) | Wi-Fi |
|
|
CM.05.108H21VHF ANTENNA FLAT PANEL |
1,240 | - |
|
Datasheet | - | Bulk | Active | General ISM | VHF (f < 300MHz) | 153MHz | 132MHz ~ 174MHz | Panel | 1 | - | - | 3.5dBi | - | - | N Type Female | - | - | - | Wall Mount | 0.650" (16.50mm) | General Purpose |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
