RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

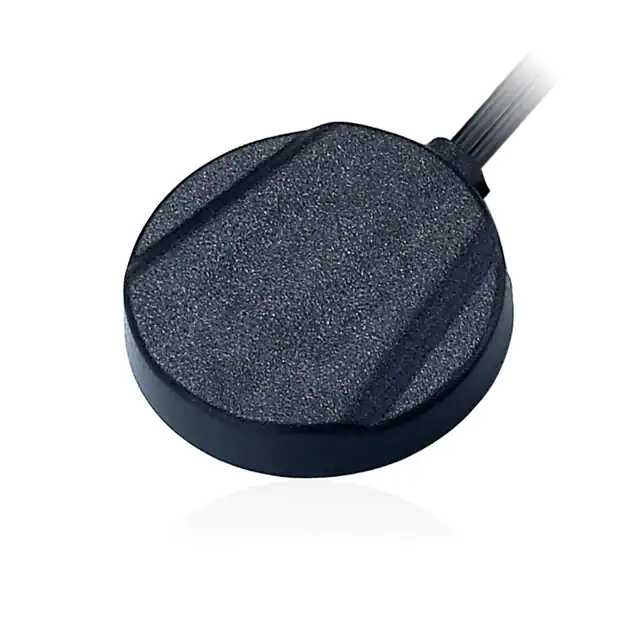

MA203.A.AB.035RF ANT 850MHZ/900MHZ MOD SMA ADH |
3,696 | - |
|
Datasheet | Stingray | Bag | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz | 800MHz ~ 2.2GHz | Module | 5 | 2, 2.5 | - | 30dB | - | Cable - 3m, LNA | SMA Male (2) | IP65 | - | - | Adhesive | 0.425" (10.80mm) | CDMA, DCS, EDGE, GPRS, GPS, GSM, HSPA, PCS, UMTS |
|
AGGBP.SL.35A.07.0060AGPS/GLONASS/GALILEO/BEIDOU PATCH |
2,603 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | - | 2.79dBi, 2.23dBi, 1.32dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.315" (8.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
RI.08.A.0121ROADMARKER-ADHESIVE 862-870MHZ S |
4,592 | - |
|
Datasheet | - | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 870MHz | Module | 1 | - | - | 3.9dBi, 3.4dBi, 3.9dBi | 10 W | - | SMA Female | - | - | - | Adhesive | 0.693" (17.60mm) | ISM |
|
WM.24.A.305111CYCLOPS 2.4 WALL MOUNT FLEXIBLE |
4,167 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | -10dB | 1.37dBi | 10 W | Cable - 3m | SMA Male | IP65 | - | - | Bracket Mount | 12.087" (307.00mm) | Wi-Fi |
|

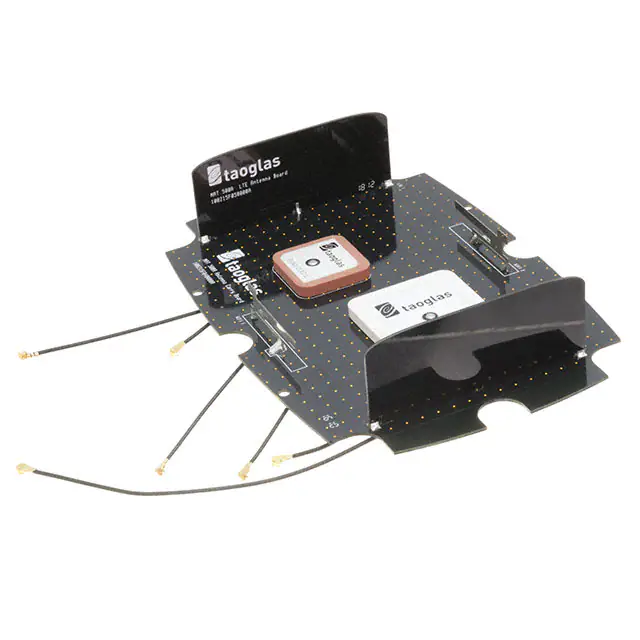

MAT.500.AMAT.500.A 6IN1 INTEGRATED ANTENN |
2,764 | - |
|
Datasheet | - | Box | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.575GHz, 1.602GHz, 1.621GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 5.375GHz | 698MHz ~ 960MHz, 1.574GHz ~ 1.607GHz, 1.615GHz ~ 1.626GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 4.9GHz ~ 5.85GHz | Ceramic Patch | 12 | 2, 2.2, 4 | - | 0.28dBi, 1.7dBi, 1.7dBi, 5.47dBi, 4.9dBi, 5.11dBi, 6.79dBi, 7.06dBi, 6.81dBi, 5.14dBi, 1.35dBi, 4.77dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 1.181" (30.00mm) | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
MA106.C.LB.001RF ANT 892MHZ/1.94GHZ DOME SMA |
2,320 | - |
|
Datasheet | - | Bulk | Active | Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 2 | 3.5 | -25dB | 4dBi | 10 W | - | SMA Male | IP69K | - | - | Panel Mount | 1.122" (28.50mm) | GLONASS, GPS |
|

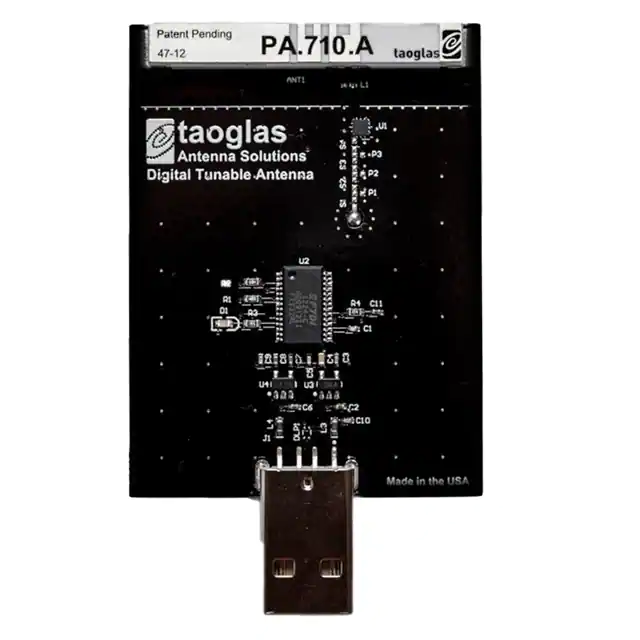

DTAD.01.A.50RF ANT 829MHZ/2.2GHZ PCB TRACE |
3,499 | - |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | PCB Trace | 2 | - | - | 2.5dBi | - | - | SMA Female | - | - | - | Adhesive | 0.197" (5.00mm) | LTE |
|
OMB.8912.05F21RF ANT 850MHZ/900MHZ WHIP STR N |
4,171 | - |
|
Datasheet | Barracuda | Tube | Active | Cellular, General ISM | Wide Band | 850MHz, 900MHz, 1.8MHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 5 | 2 | - | 3.04dBi, 3.03dBi, 4.3dBi, 4.83dBi, 5.56dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 23.425" (595.00mm) | DCS, GSM, PCS, WCDMA |
|
MA413.A.B.003RF ANT 829MHZ/1.94GHZ DOM SMA 1M |
1,705 | - |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Dome | 3 | 3 | - | 8dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 1.219" (30.95mm) | LTE |
|

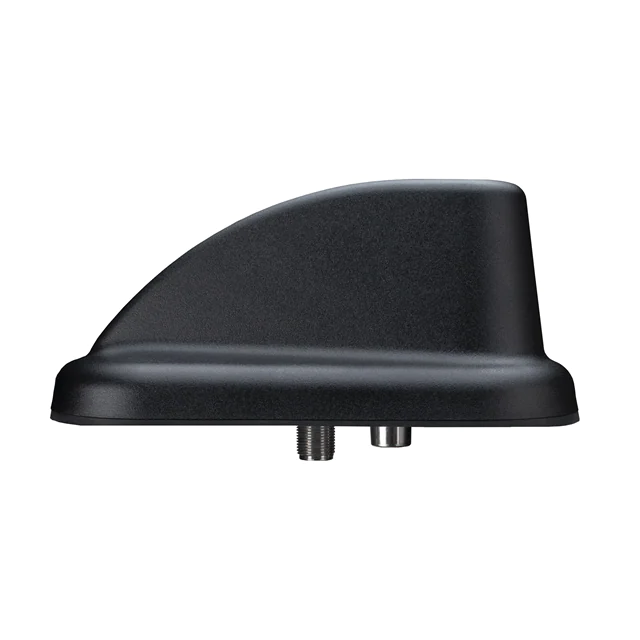

MA1044.A.ACTX.0024IN1 SHARKFIN 300MM RG-174:GNSS |
4,357 | - |
|
Datasheet | - | Bag | Active | Navigation, WiFi | Wide Band | 1.07MHz, 98MHz, 1.575GHz, 1.602GHz, 2.332GHz, 2.45GHz, 5.415GHz | 535kHz ~ 1.605MHz, 88MHz ~ 108MHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 2.32GHz ~ 2.345GHz, 2.4GHz ~ 2.5GHz, 5GHz ~ 5.83GHz | Module | 7 | - | -15dB, -5dB, -15dB, -10dB | 3dBi, 4dBi, 4.5dBi, 6dBi | - | Cable - 300mm | SMB, Fakra | IP65 | - | - | Panel Mount | 3.042" (77.27mm) | Beidou, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
