RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGA1.101111MGA1.101111 3DBI MINI MAGNETIC M |
4,024 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 707.5MHz, 737.5MHz, 1.7325GHz, 1.88GHz, 1.96GHz, 2.1325GHz | 699MHz ~ 716MHz, 729MHz ~ 746MHz, 1.71GHz ~ 1.755GHz, 1.85GHz ~ 1.91GHz, 1.93GHz ~ 1.99GHz, 2.11GHz ~ 2.155GHz | Whip, Straight | 6 | - | 5dB | -0.83dBi, -0.93dBi, 0.13dBi, 1.33dBi, 1.56dBi, 1.57dBi | - | Cable - 1m | SMA Male | - | - | - | Magnetic | 3.260" (82.80mm) | 2G, 3G, 4G |
|
ISMP.868.35.6.A.02ISM 868MHZ PATCH ANTENNA (35*35* |
4,399 | - |
|
Datasheet | - | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Ceramic Patch | 1 | - | -10dB | 2.17dBi | - | - | Pin | - | - | - | Adhesive | 0.236" (6.00mm) | ISM, LoRa, Sigfox |
|
AGGBP.SL.25A.07.0060ARF ANT 1.575GHZ CER PATCH PIN |
100 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | - | 2.44dBi, 1.72dBi, 1.67dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.339" (8.60mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
AGGBP.SL.18A.07.0060AACTIVE GPS L1/L2 LOW PROFILE STA |
1,630 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | - | 1dBi, 1.38dBi, 1.15dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.337" (8.57mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
TG.30.8112RF ANT 829MHZ/1.575GHZ WHIP STR |
3,699 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.9GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 1.575GHz | Whip, Straight | 4 | - | - | 3dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 5.850" (148.60mm) | GPS, LTE |
|
PCUWB01.01.0500GULTRA WIDE BAND FR4 ANTENNA 3-5G |
3,316 | - |
|
Datasheet | - | Bag | Active | - | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 9.15GHz | 3.1GHz ~ 5GHz, 6.2GHz ~ 8GHz, 8GHz ~ 10.3GHz | Module | 3 | 2, 3 | -4dB, -6dB, -8dB | 7.5dBi, 4.1dBi, 4.1dBi | - | Cable - 500mm | SMA Male | - | - | - | Adhesive | 0.394" (10.00mm) | UWB |
|

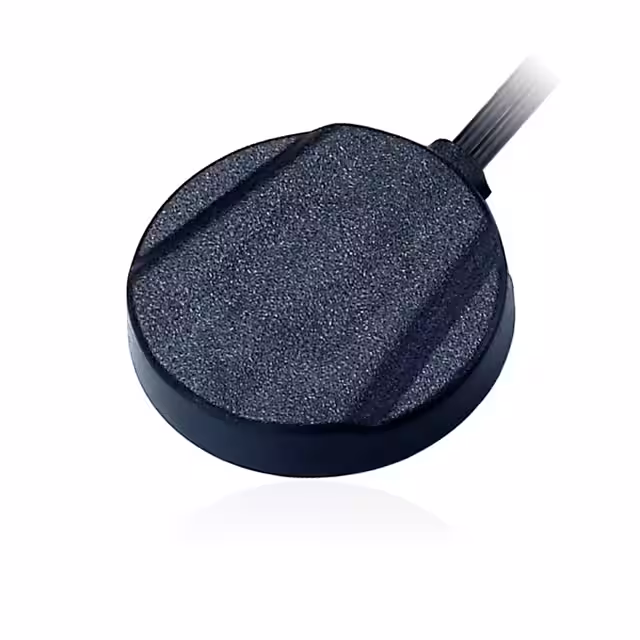

MA204.A.LB.002RF ANT 1.5GHZ MODULE SMA ML ADH |
3,082 | - |
|
Datasheet | Stingray | Bag | Active | Cellular, Navigation | Wide Band | 1.5GHz | 800MHz ~ 2.2GHz | Module | 1 | 3, 2.5 | - | 28dB | - | LNA, Filter | SMA Male | IP65 | - | - | Adhesive | 0.425" (10.80mm) | CDMA, GPS, GSM, UMTS |
|
HP5010ARF ANT 1.17645GZ CER PATCH PIN |
1,053 | - |
|
Datasheet | - | Tray | Not For New Designs | Cellular | Wide Band | 1.17645GHz, 1.2276GHz, 1.561GHz, 1.57542GHz, 1.602GHz | 1.176GHz ~ 1.2276GHz, 1.561GHz ~ 1.61GHz | Ceramic Patch | 6 | 2, 2, 2, 2, 2 | - | 3dBi, 3.7dBi, 3.6dBi, 3.7dBi, 4dBi | - | - | Pin | - | - | - | Adhesive | 0.413" (10.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
TFX257.AFLEXIBLE TRANSPARENT WI-FI ANT |
1,666 | - |
|
Datasheet | - | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | - | 4.59dBi, 3.58dBi, 2.04dBi | 2 W | Transparent | Fakra | - | - | - | Surface Mount | 0.020" (0.50mm) | Wi-Fi |
|
WLP.2450.50.6.A.08WI-FI OMNIDIRECTIONAL CP 50MM SI |
1,292 | - |
|
Datasheet | - | Box | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | - | - | 3.17dBi, 3.46dBi, 2.98dBi | - | - | SMA Female | - | - | - | Surface Mount | 0.252" (6.40mm) | Wi-Fi |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
