RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA203W.AB.002RF ANT 850MHZ/900MHZ MOD SMA ADH |
4,709 | - |
|
Datasheet | Stingray | Bag | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Module | 5 | 1.92 | -10dB | -3dB | - | Cable - 3m, LNA | SMA Male (2) | IP67 | - | - | Adhesive | 0.465" (11.80mm) | CDMA, DCS, EDGE, GPRS, GPS, GSM, HSPA, PCS, UMTS |
|
PCSD.06.APCS.06.A ON EVALUATION BOARD |
4,757 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.595GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 7 | - | - | -0.21dBi, 0.61dBi, 0.77dBi, 2.92dBi, 3.05dBi, 3.17dBi, 3.72dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA |
|

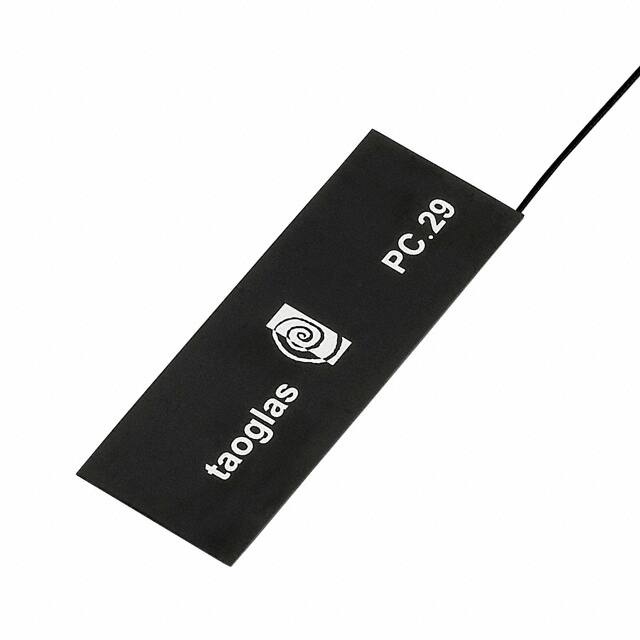

PC29.09.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
2,598 | - |
|
Datasheet | TheStripe™ | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 5 | 1.58, 1.78, 1.51, 1.38, 1.37 | -13dB, -11dB, -14dB, -16dB, -16dB | 0.01dBi, 1.2dBi, 2.66dBi, 1.25dBi, 1.43dBi | - | - | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | CDMA, GSM, UMTS |
|
FXP523.A.07.A.001RF ANT 2.4GHZ/5.5GHZ FLAT 120MM |
4,414 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | - | 6.69dBi | 2 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | WLAN |
|
FXP543.A.07.A.001RF ANT 2.4GHZ/5.8GHZ FLAT PATCH |
4,743 | - |
|
Datasheet | Venti | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB, -9dB | 2.96dBi, 5.16dBi | 5 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 (3) | - | - | - | Adhesive | 0.006" (0.15mm) | Wi-Fi |
|

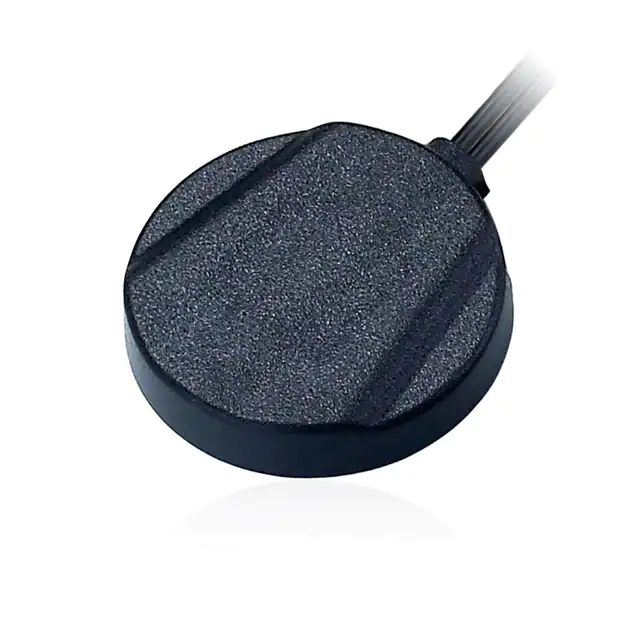

MA206.A.AB.004RF ANT 1.575GHZ/2.4GHZ MOD ADH |
3,806 | - |
|
Datasheet | Stingray | Bag | Active | Navigation | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.4GHz | 1.573GHz ~ 1.577GHz, 2.4GHz ~ 2.5GHz | Module | 2 | 1.92 | -26dB | 28dB | - | Cable - 3m, LNA | SMA Male (1), RP-SMA Male (2) | IP65 | - | - | Adhesive | 0.425" (10.80mm) | GPS |
|
MAT.03AMAT.03 MULTI-ANTENNA EVALUATION |
4,005 | - |
|
Datasheet | - | Box | Active | Cellular, Navigation | Wide Band | 892MHz, 1.795GHz, 1.92GHz, 2.045GHz | 824MHz ~ 960GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz | Ceramic Patch | 4 | 2 | -5dB | 0.48dBi, 2.13dBi, 2.54dBi, 2.25dBi | - | LNA, Filter | SMA Female | - | - | - | Adhesive | 0.236" (6.00mm) | CDMA, GPRS, GPS, GSM, HSPA |
|
MA412.A.BI.001RF ANT 829MHZ/1.9GHZ DOME FAKRA |
4,782 | - |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 829MHz, 1.9GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | Dome | 3 | 3.5 | - | 8.1dBi | - | - | SMB, Fakra | IP67 | - | - | Panel Mount | 1.220" (31.00mm) | LTE |
|
|
MA353.A.LBC.0013IN1 MAGNET MNT ANT 3M SMA(M) |
3,481 | - |
|
Datasheet | Steedan | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz, 5.5375GHz, 6.1375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | Module | 14 | - | -10dB | 1.3dBi, 2.8dBi, 5dBi, 3.4dBi, 1dBi, 1dBi, 1dBi, 6.6dBi, 4.1dBi, 5.9dBi, 5.4dBi, 7.7dBi, 3dBi, 3.5dBi | 10 W | Cable - 3m, LNA, Filter | RP-SMA Male, SMA Male (2) | IP65 | - | - | Magnetic | 2.079" (52.80mm) | 3G, 4G, Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
|
MPA.257.AWI-FI TRI-BAND 2.4/5.8/7.125GHZ |
4,741 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Module | 3 | - | - | 1.5dBi, 3.78dBi, 4.41dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.193" (4.90mm) | Wi-Fi |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
