RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

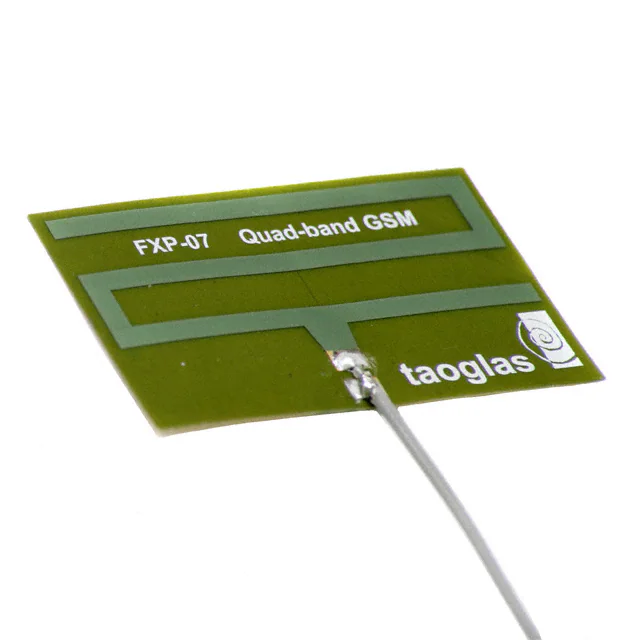

FXP07.09.0100ARF ANT 892MHZ/1.9GHZ PCB TRACE |
4,727 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | - | - | - | - | MMCX Male | - | - | - | Adhesive | 0.039" (1.00mm) | GSM |
|
GW.17.07.0250EGW.17 2.4GHZ TERMINAL ANTENNA, I |
1,923 | - |
|
Datasheet | - | Bag | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 2.7dBi | 2 W | Cable - 250mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 4.433" (112.60mm) | - |
|

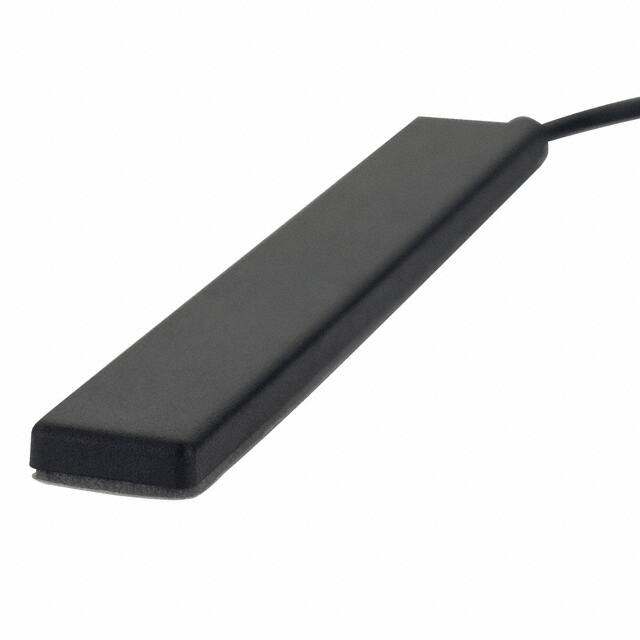

GSA.8821.A301721RF ANT 892MHZ/1.9GHZ BAR FAKRA |
4,262 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Bar | 2 | 3 | - | 3.9dBi, 3.2dBi | 10 W | - | SMB, Fakra | IP65 | - | - | Adhesive | 0.228" (5.80mm) | CDMA, GSM, UMTS |
|
GW.05.0ZZ232.4/5.8GHZ TERMINAL MOUNT MONOPO |
1,448 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | - | - | -0.83dBi, 2.92dBi, 2.64dBi, 2.91dBi, 1.41dBi, 2.61dBi | 10 W | - | SMB, Fakra | - | - | - | Connector Mount | 2.740" (69.60mm) | Wi-Fi |
|
PA.22ARF ANT 920MHZ/1.9GHZ CHIP SLD |
3,353 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 920MHz, 1.9GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Chip | 2 | 2.5 | - | -1.96dBi, 2.48dBi | - | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | GSM |
|
GWLA.10RF ANT 1.575GHZ/2.4GHZ CHIP SLD |
2,048 | - |
|
Datasheet | - | Tape & Reel (TR) | Not For New Designs | 802.15.4, Bluetooth, Navigation, WiFi | Wide Band | 1.575GHz, 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Chip | 3 | - | -10dB | 1.8dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™ |
|
FW.81.SMA.MRF ANT 135MHZ WHIP STR SMA MALE |
4,816 | - |
|
Datasheet | Meteor | Bag | Active | - | VHF (f < 300MHz) | 135MHz | - | Whip, Straight | 1 | - | - | 0dBi | 50 W | - | SMA Male | IP67 | - | - | Connector Mount | 13.898" (353.00mm) | - |
|

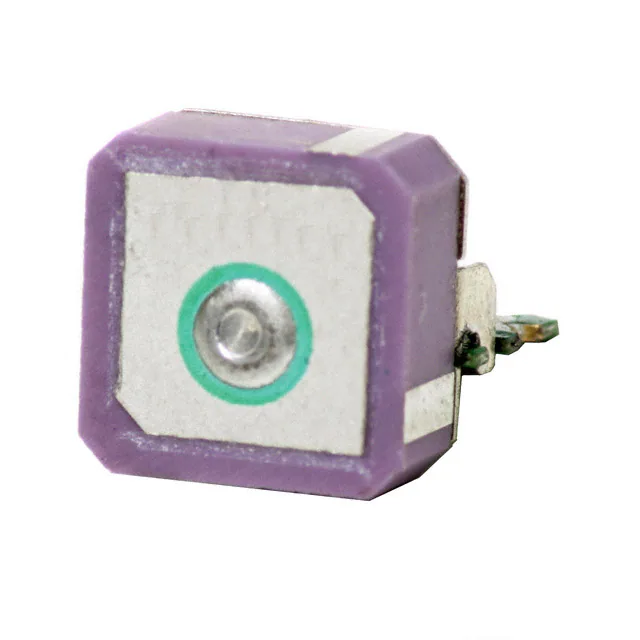

AP.10C.01RF ANT 1.575GHZ CER PATCH SLD |
2,784 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2 | - | -3dBic | - | LNA | Solder | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
|

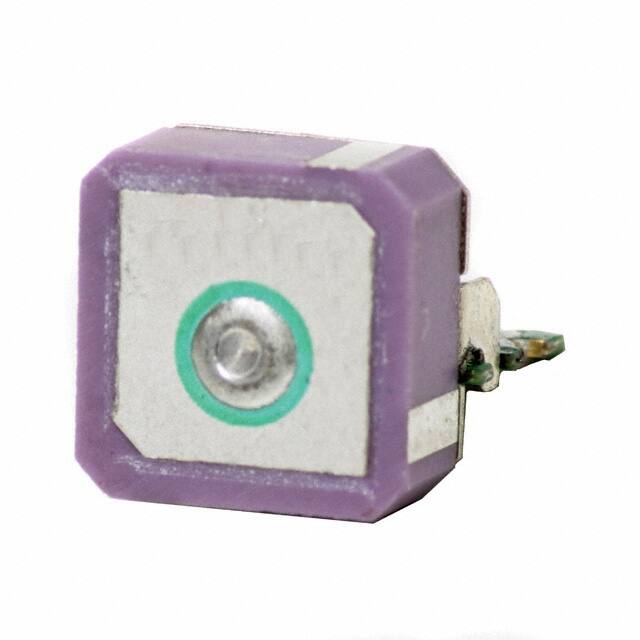

AP.10D.01RF ANT 1.575GHZ CER PATCH SLD |
1,035 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -3dBic | - | LNA | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
FXP534.D.07.C.001RF ANT 5.5GHZ FLAT MHFHT 100MM |
3,785 | - |
|
Datasheet | - | Bag | Obsolete | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | Flat Patch | 1 | - | - | 5.74dBi | 2 W | - | I-PEX MHF4L (4) | - | - | - | Adhesive | 0.006" (0.15mm) | WLAN |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
