RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC24.07.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
3,250 | - |
|
Datasheet | TheStripe™ | Bag | Obsolete | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 4 | 2 | -12dB, -25dB, -12dB, -10dB | 0dBi | 10 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Chassis Mount | 0.031" (0.80mm) | AMPS, DCS, GSM, PCS |
|

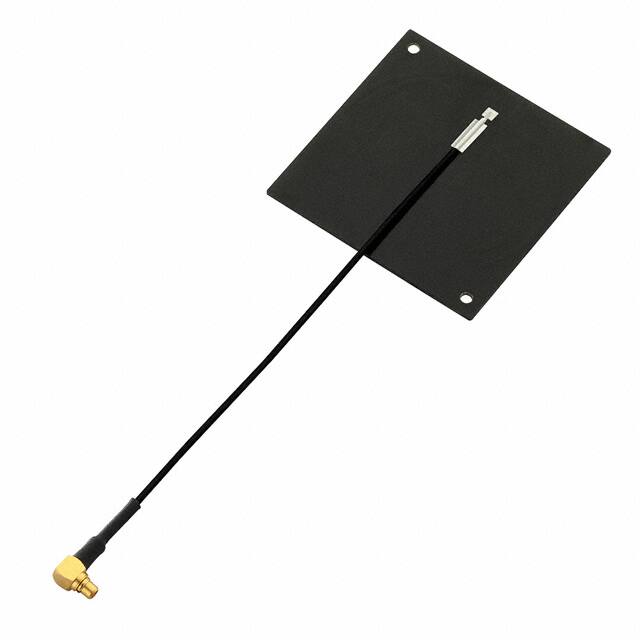

PC24.09.0100ARF ANT 892MHZ/1.9GHZ FLAT PATCH |
2,501 | - |
|
Datasheet | TheStripe™ | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 2 | 2 | -25dB, -12dB | 0dBi | 10 W | - | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
FXP100.07.0100ARF ANT 2.3GHZ/2.5GHZ FLAT PATCH |
1,752 | - |
|
Datasheet | - | Bag | Obsolete | WiFi | Wide Band | 2.3GHz, 2.5GHz, 3.5GHz | 2.1GHz ~ 4.32GHz | Flat Patch | 1 | 2 | - | 3.2dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | WiMax™ |
|
FXP400.07.0100ARF ANT 815MHZ/2.4GHZ FLAT PATCH |
4,260 | - |
|
Datasheet | - | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), SHF (f > 4GHz) | 815MHz, 2.4GHz | 690MHz ~ 940MHz, 1.72GHz ~ 3.13GHz | Flat Patch | 2 | 2 | -6dB | 4dBi | 10 W | Cable - 85mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | LTE |
|
WS.01.B.305151RF ANT 3.8GHZ DOME RP-SMA MALE |
3,045 | - |
|
Datasheet | Hercules | Bag | Obsolete | 802.15.4, Bluetooth, WiFi | Wide Band | 3.8GHz | 2.4GHz ~ 5.2GHz | Dome | 1 | 1.6 | -15dB | - | - | - | RP-SMA Male | IP69K | - | - | Panel Mount | 1.142" (29.00mm) | Bluetooth, WLAN, Zigbee™ |
|
PA.15RF ANT 2.4GHZ CHIP SOLDER SMD |
1,445 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | -21dB | -3.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | Bluetooth, 802.11a/b/g |
|
FXP240.07.0100ARF ANT 434MHZ FLAT PATCH MHFII |
1,090 | - |
|
Datasheet | - | Bag | Obsolete | - | UHF (300MHz ~ 1GHz) | 434MHz | 433MHz ~ 435MHz | Flat Patch | 1 | 2 | -20dB | 0dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
FXP245.07.0100ARF ANT 450MHZ FLAT PATCH CAB ADH |
4,114 | - |
|
Datasheet | - | Bag | Obsolete | - | UHF (300MHz ~ 1GHz) | 450MHz | 450MHz ~ 457MHz | Flat Patch | 1 | 2 | -20dB | 0dBi | 5 W | Cable - 100mm | I-PEX MHF2 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
FXP270.07.0100ARF ANT 783MHZ FLAT PATCH MHFII |
4,301 | - |
|
Datasheet | - | Bag | Obsolete | - | UHF (300MHz ~ 1GHz) | 783MHz | 779MHz ~ 787MHz | Flat Patch | 1 | 2 | -20dB | 1.4dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
MA301.A.AB.001RF ANT 1.4GHZ MODULE SMA ML ADH |
4,162 | - |
|
Datasheet | - | Bag | Obsolete | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 1.4GHz | 824MHz ~ 1.99GHz | Module | 1 | 1.92 | - | 28dBic | - | LNA | SMA Male | IP65 | - | - | Adhesive | 0.681" (17.30mm) | CDMA, GPS, GSM, UMTS |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
