RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SA.PANEL.20RF ANT 5.4GHZ PANEL N FEM BRKT |
2,908 | - |
|
Datasheet | - | Box | Obsolete | WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.9GHz | Panel | 1 | - | -14dB | 17dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 2.756" (70.00mm) | Wi-Fi |
|
FXP14.11.0100BRF ANT 850/900MHZ FLAT PATCH GSC |
1,050 | - |
|
Datasheet | - | Bag | Obsolete | Cellular | Wide Band | 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 6 | 2.5 | -7dB, -12dB, -8dB, -9dB, -9dB, -8dB | 2dBi, 1.5dBi, 3dBi, 2.5dBi, 2dBi, 2.5dBi | - | - | GSC | - | - | - | Adhesive | 0.004" (0.10mm) | CDMA, GSM |
|
AA.161.301111RF ANT 1.6GHZ MOD SMA ML MAG 3M |
2,814 | - |
|
Datasheet | Dominator™ | Bag | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.575GHz ~ 1.61GHz | Module | 1 | 2 | -15.8, -6.2dB | 29dBic, 30dBic | - | LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.843" (21.40mm) | GLONASS, GPS |
|
HLA.01RF ANT 5.5GHZ CHIP SOLDER SMD |
2,245 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.9GHz | Chip | 1 | 2 | -11dB | 2.1dBi | 50 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | WLAN |
|
|
AA.108.301F21RF ANT 1.575GHZ MOD GT5 FML ADH |
4,274 | - |
|
Datasheet | Titan | Bag | Discontinued at Digi-Key | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.58GHz | Module | 1 | 1.92 | - | 2dBic | - | Cable - 3m, LNA | GT5 Female | IP67 | - | - | Adhesive | 0.598" (15.20mm) | GPS |
|
MA301.A.AB.010RF ANT 1.4GHZ MODULE FAKRA ADH |
4,812 | - |
|
Datasheet | - | Bag | Obsolete | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 1.4GHz | 824MHz ~ 1.99GHz | Module | 1 | 1.92 | - | 28dBic | - | LNA | SMB, Fakra | IP65 | - | - | Adhesive | 0.681" (17.30mm) | CDMA, GPS, GSM, UMTS |
|
GSA.8825.A.051M11RF ANT 892MHZ/1.9GHZ WHIP 0.5M |
3,332 | - |
|
Datasheet | - | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | 2 | - | 2dBi | - | - | CRC9 | - | - | - | Clip | 5.512" (140.00mm) | GSM, UMTS |
|

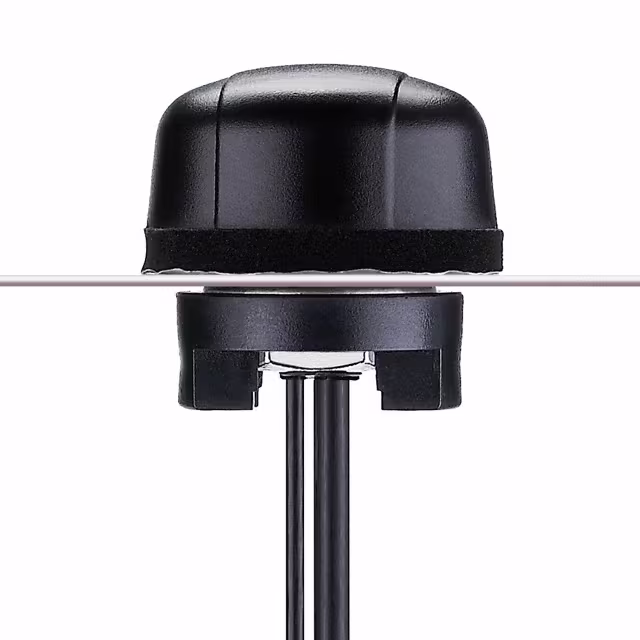

MA105.C.LB.001RF ANT 892MHZ/1.9GHZ DOME SMA ML |
2,273 | - |
|
Datasheet | Hercules | Bag | Discontinued at Digi-Key | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 2 | 3.5 | -14dB, -25dB | 3.3dB, 4dB | 10 W | LNA, Filter | SMA Male | IP69K | - | - | Panel Mount | 1.122" (28.50mm) | CDMA, GPS, GSM, UMTS |
|

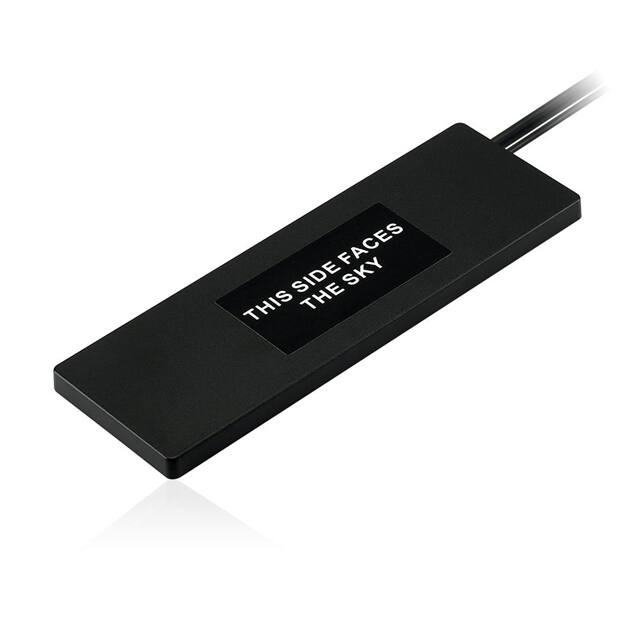

MA209.A.LB.001RF ANT 700/892MHZ FLAT BAR SMA |
4,371 | - |
|
Datasheet | Stream Two | Bag | Obsolete | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 700MHz, 892MHz, 2GHz | 700MHz, 824MHz ~ 960MHz, 1.85GHz ~ 2.17GHz | Flat Bar | 3 | 1.24, 1.27 | -10dB | 1.98dBi, 3.25dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Adhesive | 0.157" (4.00mm) | CDMA, GPS, GSM, LTE, UMTS |
|
TL.01.1F11RF ANT 749MHZ/892MHZ DOME N MALE |
2,038 | - |
|
Datasheet | Shockwave | Bag | Obsolete | Cellular, Navigation, WiFi | Wide Band | 749MHz, 892MHz, 1.5GHz, 1.9GHz, 2.6GHz | 698MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | Dome | 5 | - | - | 2.6dBi, 2.5dBi, 1.2dBi, 3.2dBi, 2.8dBi | - | - | N Type Male | IP69K | - | - | Panel Mount | 3.446" (87.54mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
